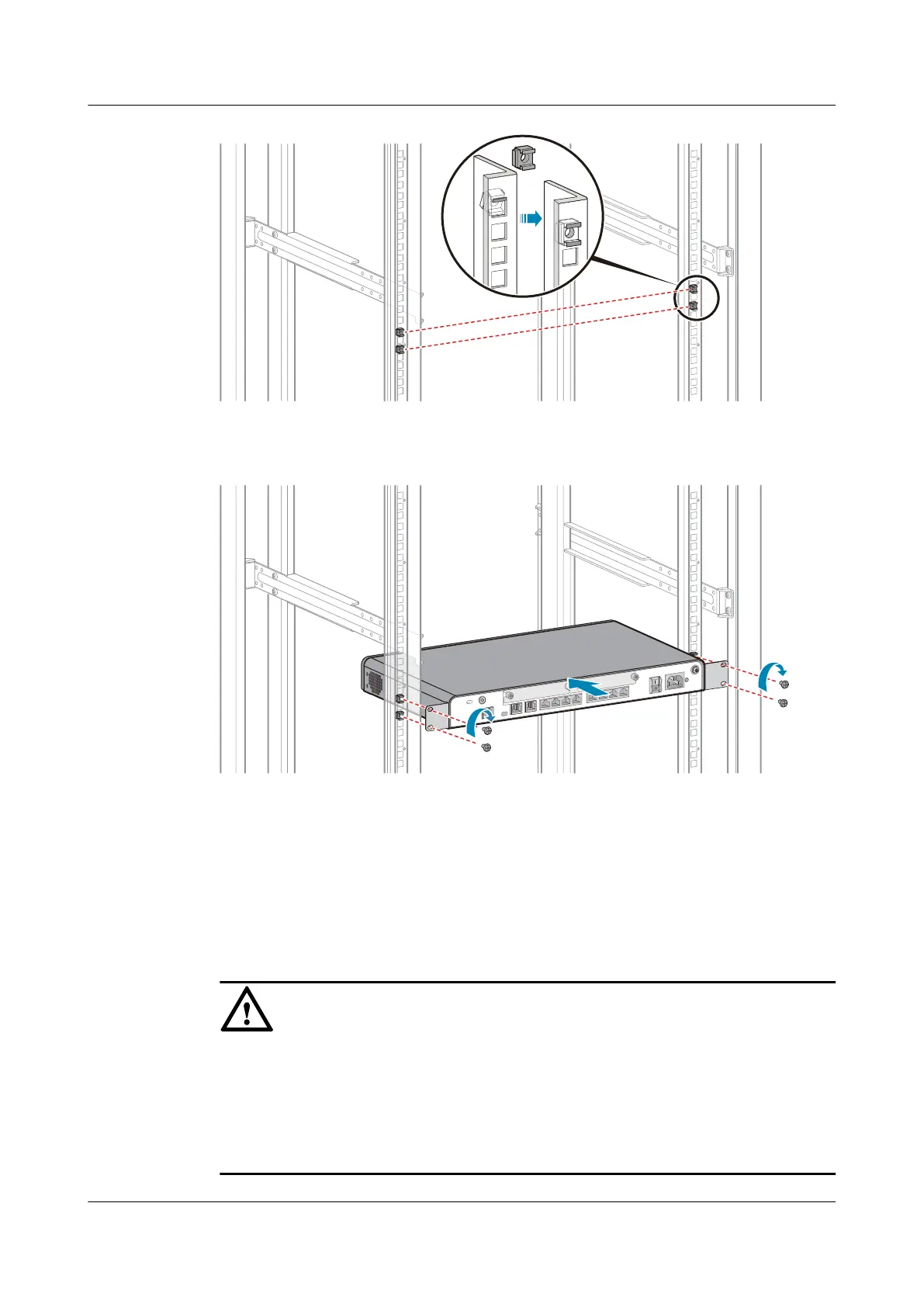

Step 3 Move the router into the cabinet. Support the bottom of the router with one hand and tighten
the M6 screws on the mounting brackets with the other hand. Tighten the lower screws first,
and then the upper screws.
----End
6.1.2 Using Mounting Brackets and Mounting Bracket Guide
Rails (AR2204/AR2220E/AR2204E series)
Context
NOTICE
l Leave at least 50 mm of clearance around the router for heat dissipation.
l Seen from the front panel of the router, the airflow of the router is left to right.
l If multiple routers are installed in a cabinet, it is recommended that at least 1 U of space (1
U = 44.45 mm) be kept between two routers. These routers must have the same airflow
direction; otherwise, heat dissipation is affected by hot air circulation.
Huawei
AR100&AR120&AR150&AR160&AR200&AR1200&AR
1600&AR2200&AR3200&AR3600 series Enterprise
Routers
Hardware Installation and Maintenance Guide
6 Installing the AR1200 Series/AR2204/AR2220E/
AR2220/AR2204E Series Routers
Issue 05 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
57
