Insert the AE 905S to the optical interface on
the NE05E, with the AE 905S ejector lever
being locked.
2

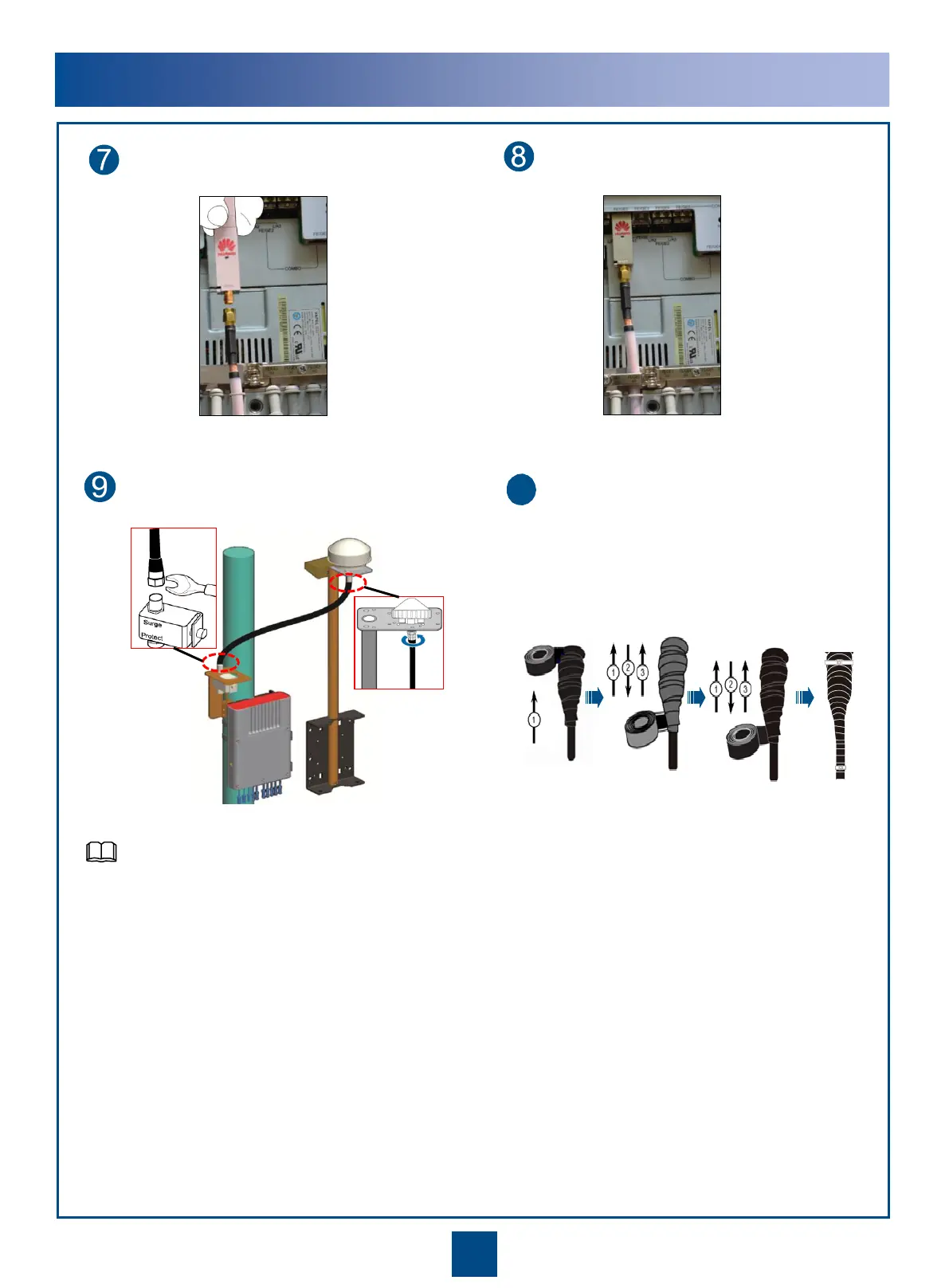

Scenario II: Separated Installation Scenario
Remove the rubber plug, and connect the
GPS feeder to the AE 905S.
Use the GPS feeder to connect the Surge interface
of the lightning protection component to the GPS
antenna, and use a wrench to secure the joints.
For requirements on the GPS feeder joint production, see GPS
Satellite Antenna System Quick Installation Guide.
NOTE
6
10
Implement 1+3+3 waterproof protection. Use
one cable tie on each end of the tape to
secure the adhesive tape.
•Implement waterproof protection for the feeder-
and-lightning-protection-surge joint.
•Implement waterproof protection for the feeder-
and-GPS-antenna-N joint.
Wrap one layer
of insulation
tape.
Wrap three layers
of waterproof
tapes.
Wrap three layers
of insulation
tapes.
Use one
cable tie on
each end.
