Huawei B683 Setup Guide

Verify the following:
Profile Name: B683
Dial-up Number: *99 #
User Name: <efterlades blank>
Password: <efterlades blank>
APN: Check to your SIM card provider and enter the APN here
IP Address: <Dynamic>
Click on the "Next" button.
(1) APN = Access Point Name Depending on which APN you choose, you have different visibility (IP
address and ports available) compared to the rest of the Internet.
Other settings:
Authentication: CHAP+PAP
Connection Mode: Auto
Under Connection Mode can be selected "Manual". With this option, you must log into the router's
control panel and connect the connection each time if the router has been disconnected.
Click on the "Next" button.
Select the following:

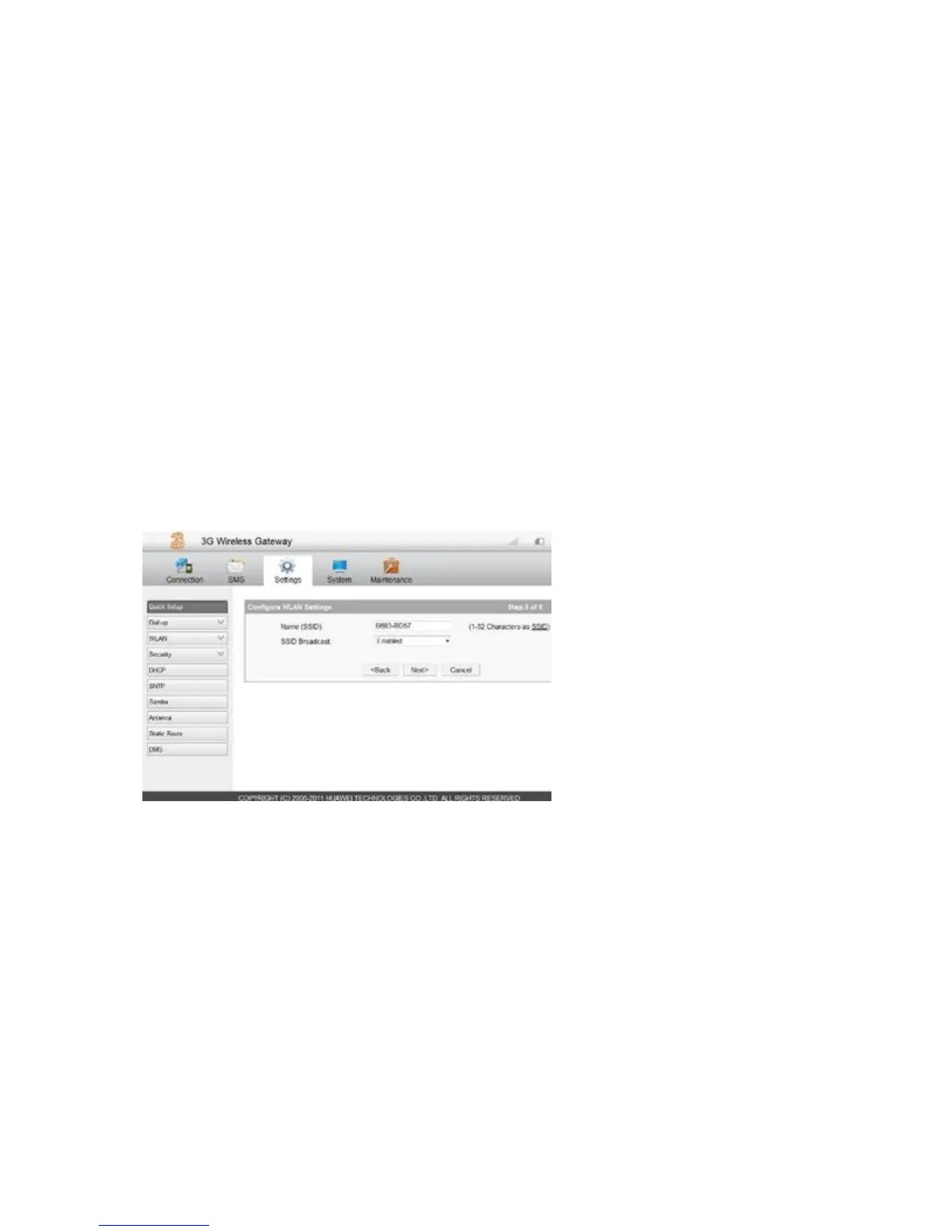

Name (SSID): The name of the B683 router's wireless local area networks (2)
SSID Broadcast: Enabled (3)
Click on the "Next" button.
(2) To be selected on all the computers that will be connected to the Huawei B683 wirelessly.
(3) The B683 is visible in a radius up to 100 meters.

Huawei B683 Specifications

General

Device type	Cellular network router
Market positioning	Home
Data network	EDGE, GPRS, GSM, HSPA+, HSUPA, WCDMA
Number of SIM cards	1
Ethernet LAN data rates	100 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Web-based management	Yes
Input voltage	100 - 240 V
Power consumption (typical)	10 W

Weight and Dimensions

Weight	300 g
