Huawei E5577Cs-321 User Manual

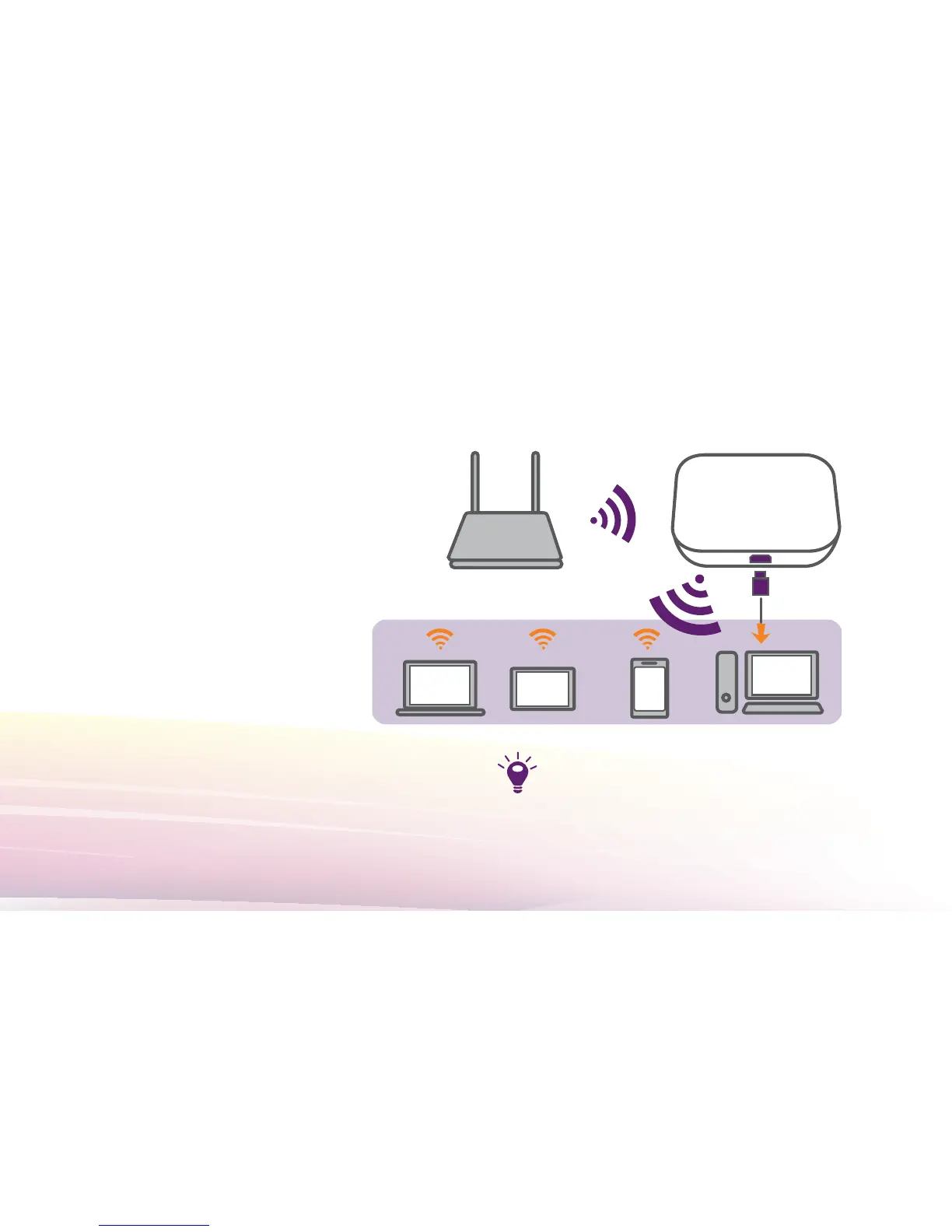

Wi-Fi extender (optional)
The Wi-Fi extender feature boosts
Wi-Fi signal strength and
connects to Wi-Fi networks where
available to reduce mobile data
usage.
1.From the HUAWEI HiLink app, touch
Settings and enable the Wi-Fi extender
feature.
2.Connect to a Wi-Fi network.
Your router will connect to known Wi-Fi
networks when the extender feature is
enabled.

Huawei E5577Cs-321 Specifications

General

Model	E5577Cs-321
Category	Wireless Router
Network Technology	LTE/UMTS/GSM
LTE Category	LTE CAT4
Download Speed	150 Mbps
Upload Speed	50 Mbps
Wi-Fi Standard	802.11b/g/n
Wi-Fi Frequency	2.4 GHz
Battery Capacity	1500 mAh
Removable Battery	Yes
SIM Card Slot	Yes
Max Connected Devices	10
Operating Temperature	0°C to 35°C
Storage Temperature	-20°C to 60°C
SIM Card Size	Micro SIM
Weight	82 g
External Antenna Interface	Yes (TS-9)
