2.2
Connecting One Telephone

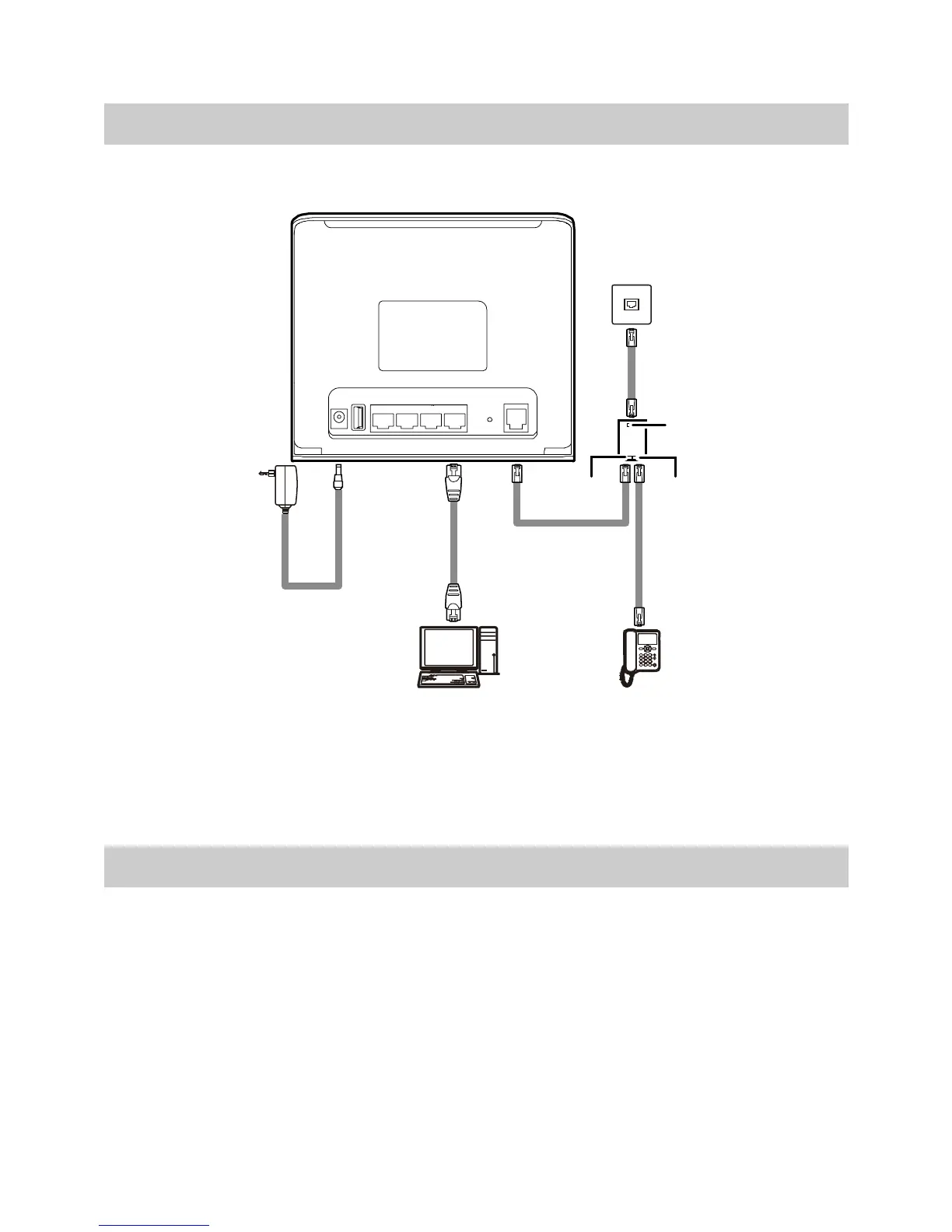

If your telephone line is used for both the broadband network access and a telephone
connection, take the following figure as a reference for connecting the cables.
####
#### ####
1
3
4
5
PHONE
LINE
MODEM
2
POW ER
LAN4 LAN3 LAN2 LAN1USB
RESET
ADSL
1. Telephone jack on the wall 2. Splitter 3. Power adapter
4. Computer 5. Telephone
2.3
Connecting Multiple Telephones
If your telephone line is used for the broadband network access, telephone connections,
and fax connections, take the following figure as a reference for connecting the cables.
5
