Appearance

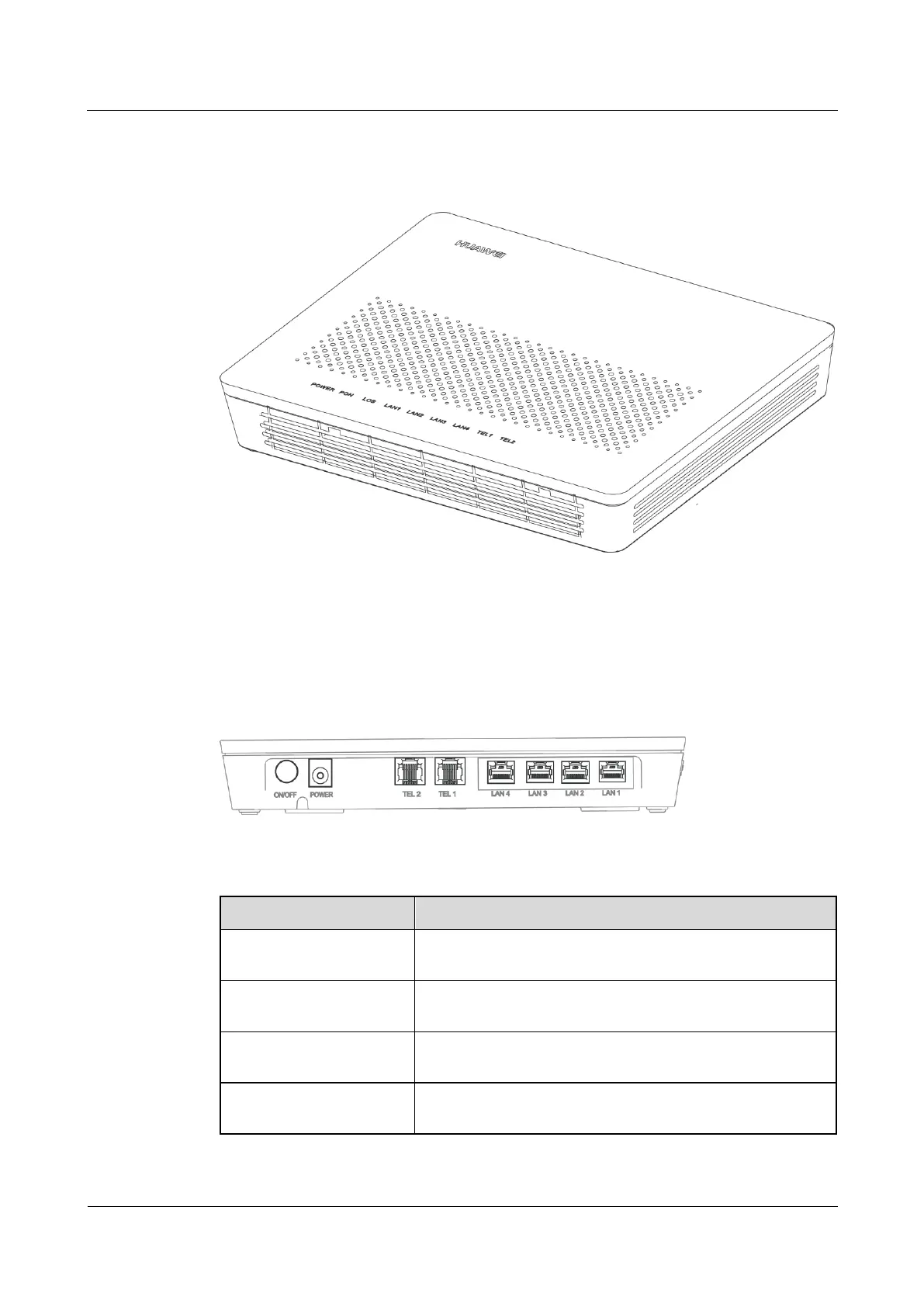

Figure 1-12 Appearance of the HG8240A
Port/Button
Figure 1-13 and Figure 1-14 show the ports on the rear panel and side panel of the HG8240A
respectively.
Figure 1-13 Ports and buttons on the rear panel of the HG8240A
Table 1-13 Description of ports and buttons on the rear panel of the HG8240A
Port/Button
Function
LAN1 to LAN4
Indicates auto-sensing 10/100M Base-T Ethernet ports
(RJ-45), used to connect to PCs or IP set-top boxes (STBs).
TEL1 and TEL2
Indicates VoIP telephone ports (RJ-11), used to connecting to
the ports on telephone sets.
POWER
Indicates the power port, used to connect to the power
adapter or backup battery unit.
ON/OFF
Indicates the power button. It is used to power on or power
off the device.
