EchoLife HG8245 GPON Terminal
Product Description 1 Introduction
Ports and Buttons on the Rear Panel

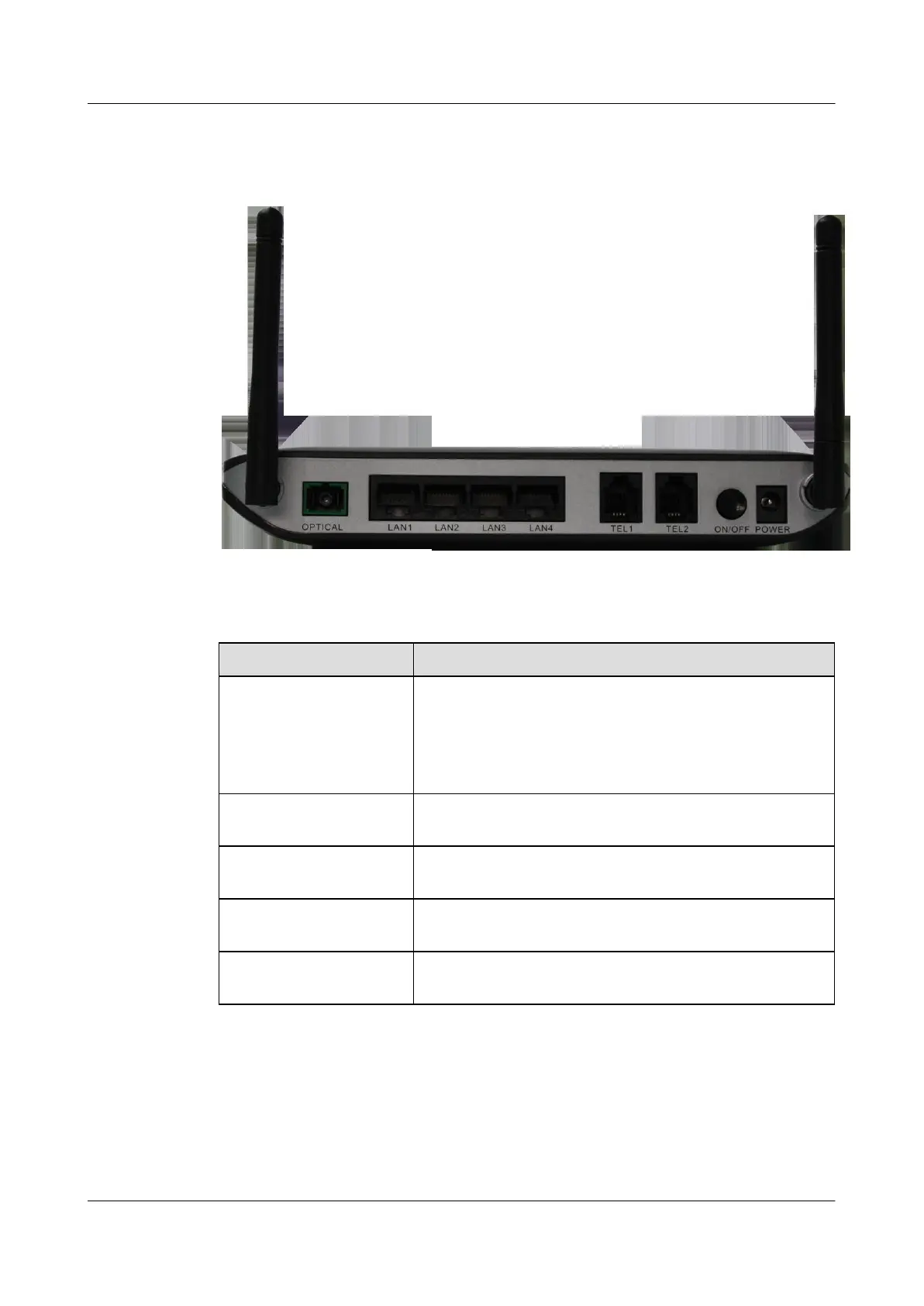

Figure 1-3 Ports and buttons on the rear panel of the HG8245
Table 1-1 Description of ports and buttons on the rear panel of the HG8245
Port/Button
Function
OPTICAL
Indicates an optical port. The optical port is equipped with a
rubber plug and is connected to an optical fiber for upstream
transmission.
The type of the optical connector connected to the OPTICAL
port is SC/APC.
LAN1–LAN4
Indicate auto-sensing 10/100/1000M Base-T Ethernet ports
(RJ-45), used to connect to PCs or IP set-top boxes (STBs).
TEL1–TEL2
Indicate VoIP telephone ports (RJ-11), used to connect to the
ports of telephone sets.
ON/OFF
Indicates the power button. It is used to power on or power off
the device.
POWER
Indicates the power port, used to connect to the power adapter
or backup battery unit.
Issue 01 (2011-01-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1-5
