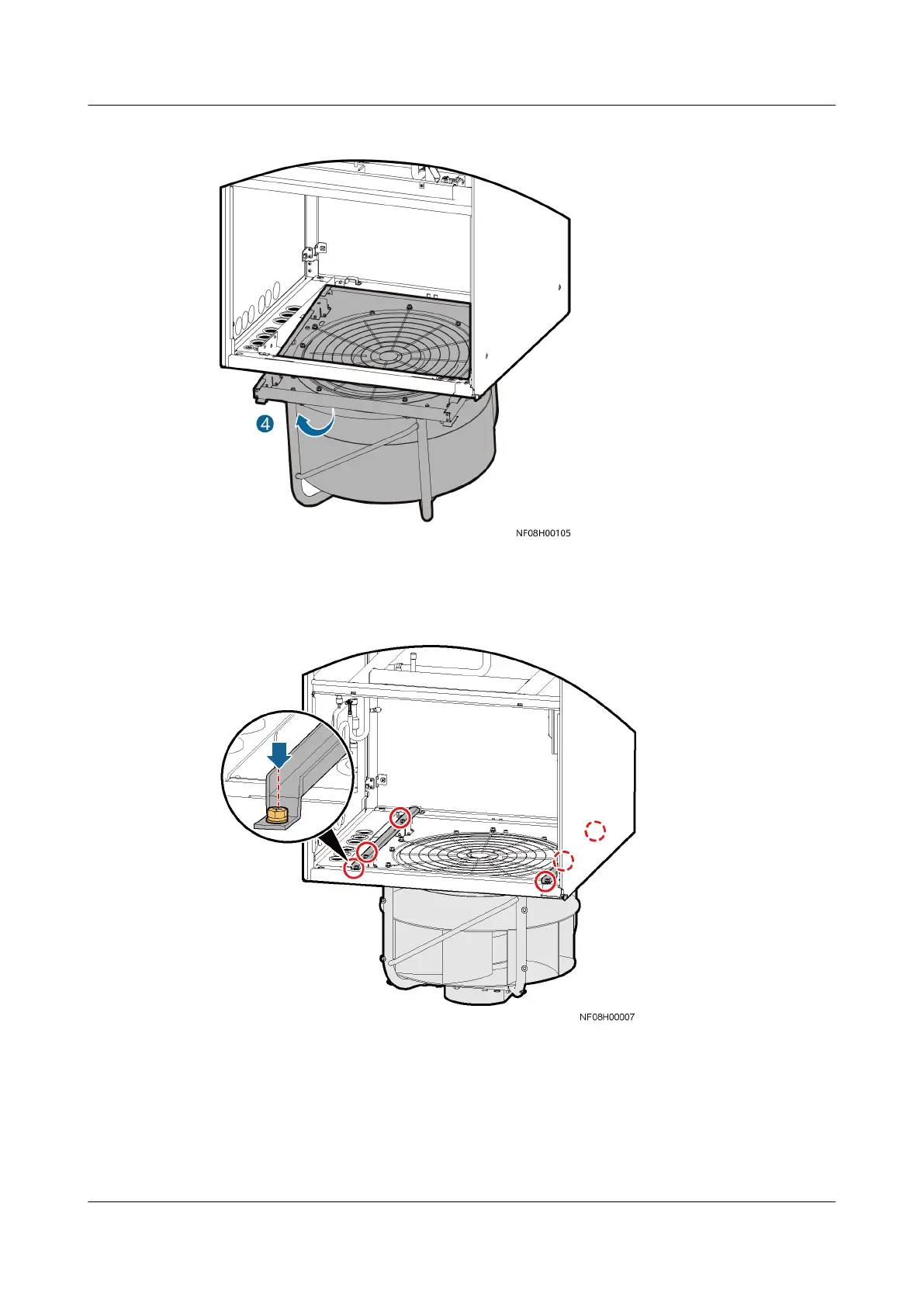

Figure 2-4 Turning a fan to 150 degrees
Step 5 Use a torque wrench to secure the two beams, and interconnect the fan cables
using the interconnection terminal reserved in the cabinet.
Figure 2-5 Securing the fan beams
----End
