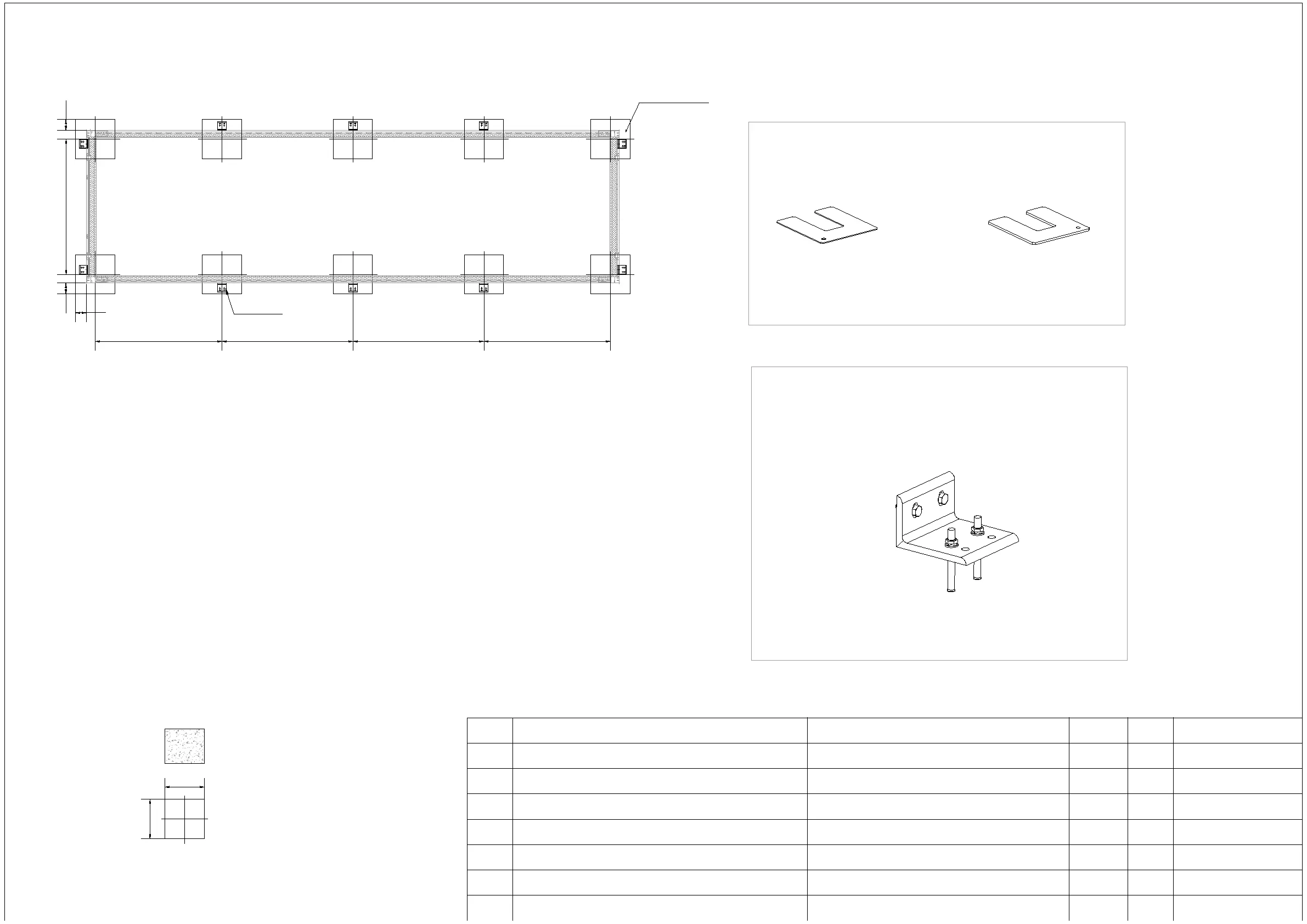

No.S002 Pre-fab. Module Instalation Position Diagram
1
DKBA80455078
L-shaped angle steel
10
Expansion bolt
2
DKBA04802828_M16X150_S 20
3
4
5
6
7
Bolt M16X50
GB5783-2000_M16X50_S_ZNAL
20
Washer ring
GB97_1-85_16_S
20
Spring washerGB93-87_16_S 20
2 mm leveling washer
Enlarged at 10:1
5 mm leveling washer
2 mm leveling washer
DKBA82004916
12
5 mm leveling washer
DKBA82004917
4
L-shaped angle steel
fastener
Enlarged at 10:1
PCS
PCS
PCS
PCS
PCS
PCS
PCS
Item
Drawing No./Code
Qty
Remarks
No. Unit
2899 2997 2997
250
250
L-shaped part
250
3095
2899
cement pier
900
900
Note:
1. The total weight of a single container is about 20,000 kg. The strength of the concrete
support podium must meet the requirements of stacking two layers (the contact area of a
single support point is about 150 cm²). It is recommended that the concrete support
strength be no less than 200 kg/cm².
2. The horizontal height error of each concrete support podium platform shall be less than
5 mm. The interface size of the concrete support podium shall be at least 900 mm x 900
mm, and the height shall be greater than 800 mm, meeting local flood control
requirements.
3. For sites other than concrete support podiums, concrete platforms or passageways can
be designed based on the actual access and maintenance requirements. The bearing
capacity must meets local civil engineering standard.
4. 2 mm leveling washers and 5 mm leveling washers are used to adjust the height and
height of pre-fab. modules. They are placed between the container corner fittings,
support plates at the container bottom, and concrete podiums.
水泥墩
To Next Page
