7
4.2

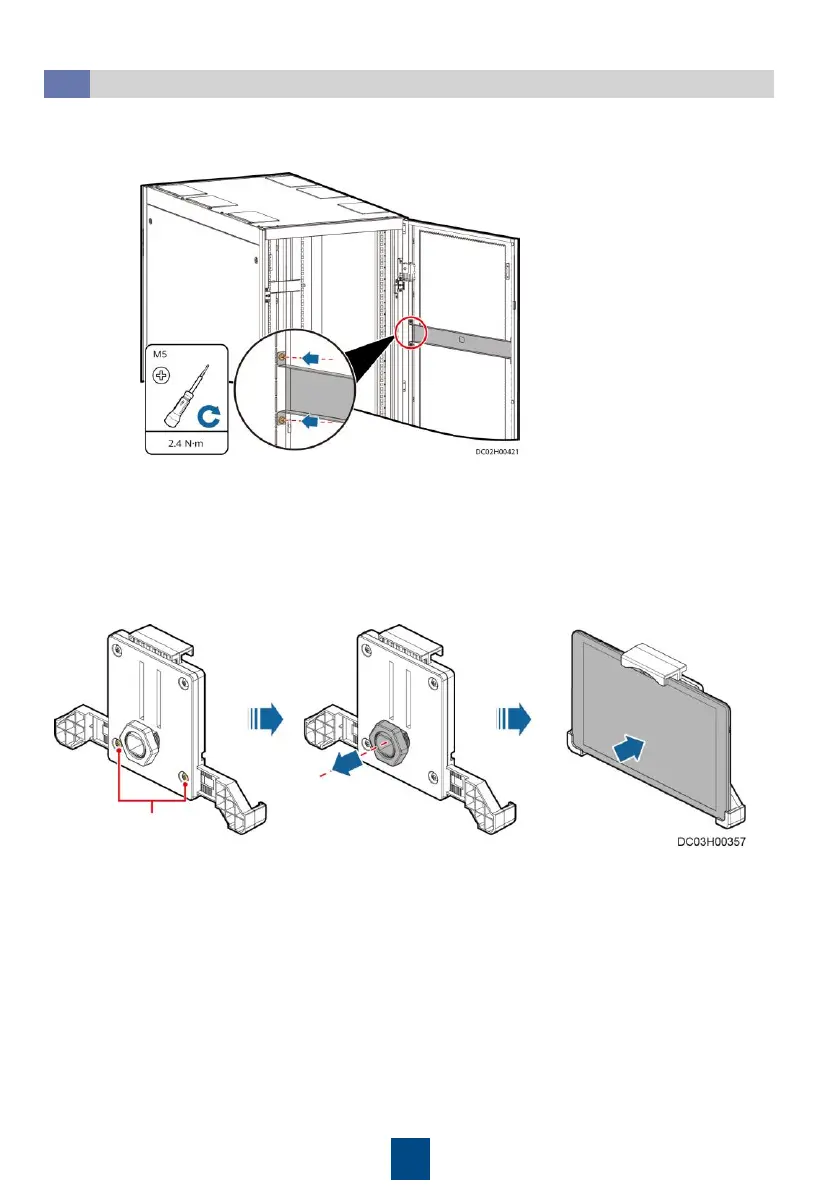

Installing a PAD
1. (Optional) Remove the baffle plate from the front door of the Converged Cabinet.
2. (Optional) Install the PAD support fastener on the back of the front door of the Converged
Cabinet.
3. Adjust the PAD mounting support to match the dimensions of the PAD to be installed.
4. Remove the nuts from the PAD mounting support and install the support.
5. Route the PAD power cable through the cable hole in the PAD mounting support and
connect the cable to the PAD.
6. Adjust the feet on the top of the PAD mounting support and clamp the PAD to the PAD
mounting support.
7. Connect the ECC800 USB cable to the charging port on the PAD.
Adjusting screws
