For the 02116410 cabinet, one full-height vertical PDU2000 is installed in the left at the rear
of the cabinet.

For the 02116411 cabinet, two horizontal PDU2000s are installed. Intelligent PDU2000s and
non-intelligent PDU2000s are supported. Non-intelligent PDU2000s are installed at the 11 U
and 13 U positions at the rear of the cabinet. Intelligent PDU2000s are installed at the 10–
11 U and 12–13 U positions at the rear of the cabinet.

For the 02116412 cabinet, two horizontal non-intelligent PDU2000s are installed at the 16 U
and 18 U positions at the rear of the cabinet.
3.3
(Optional) Installing Busbars

If there is more than one
lithium battery, install
busbars.

For the 02116410 cabinet,
install the busbars at the 2
U and 3U positions in the
cabinet.

For the 02116411 cabinet,
install the busbars at the 17
U and 18 U positions in the
cabinet.

For the 02116412 cabinet,
install the busbars at the 20
U and 21 U positions in the
cabinet.

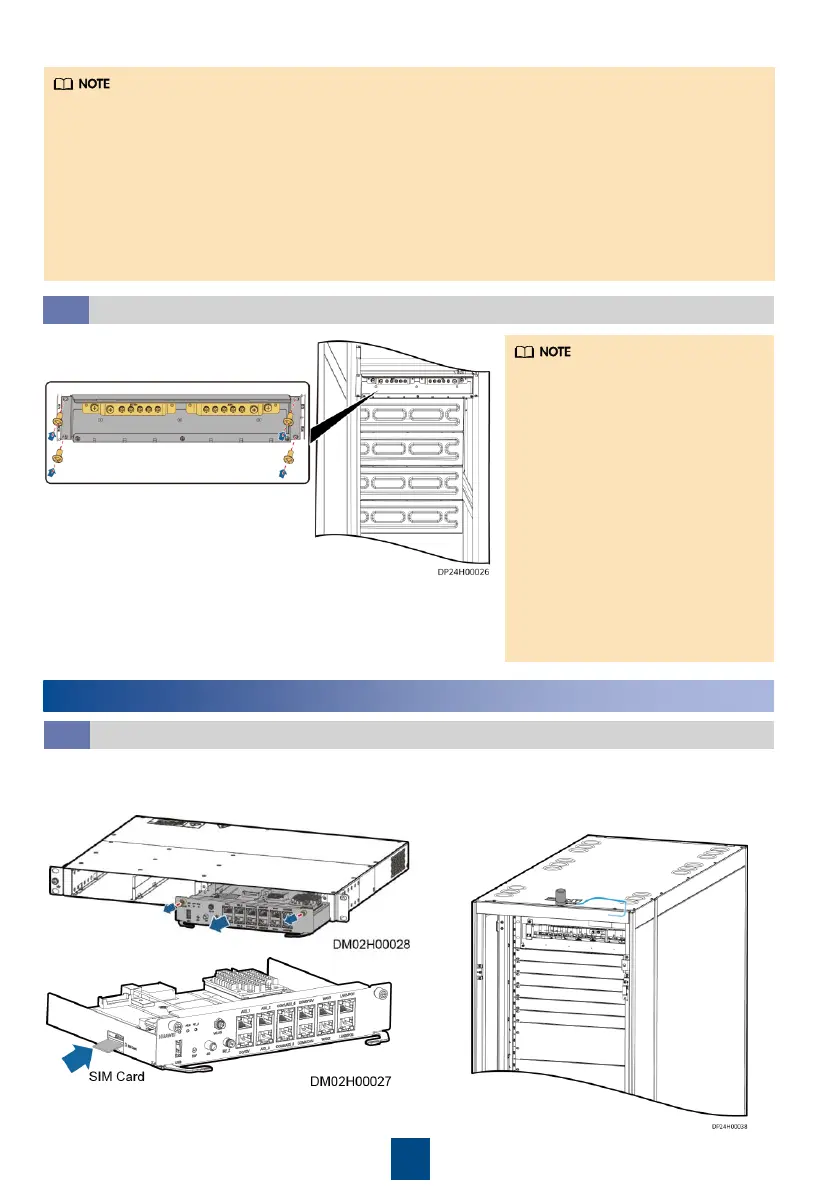

4
Installing Monitoring Devices
4.1
Installing a SIM Card and Antenna
1. Remove the ECC800 main control module.
2. Install a SIM card.
3. Attach the antenna to the middle of
the cabinet top.
4. Connect the antenna cable.
