Model
Block Width (W1)
Block
Depth (D1)
Block
Height (H)
Center
Distance
(W2)
Center
Distance (D2)
NetCol500
-A110
W1 ≥ 250
D1 ≥ 250
150
–250
1035
1076

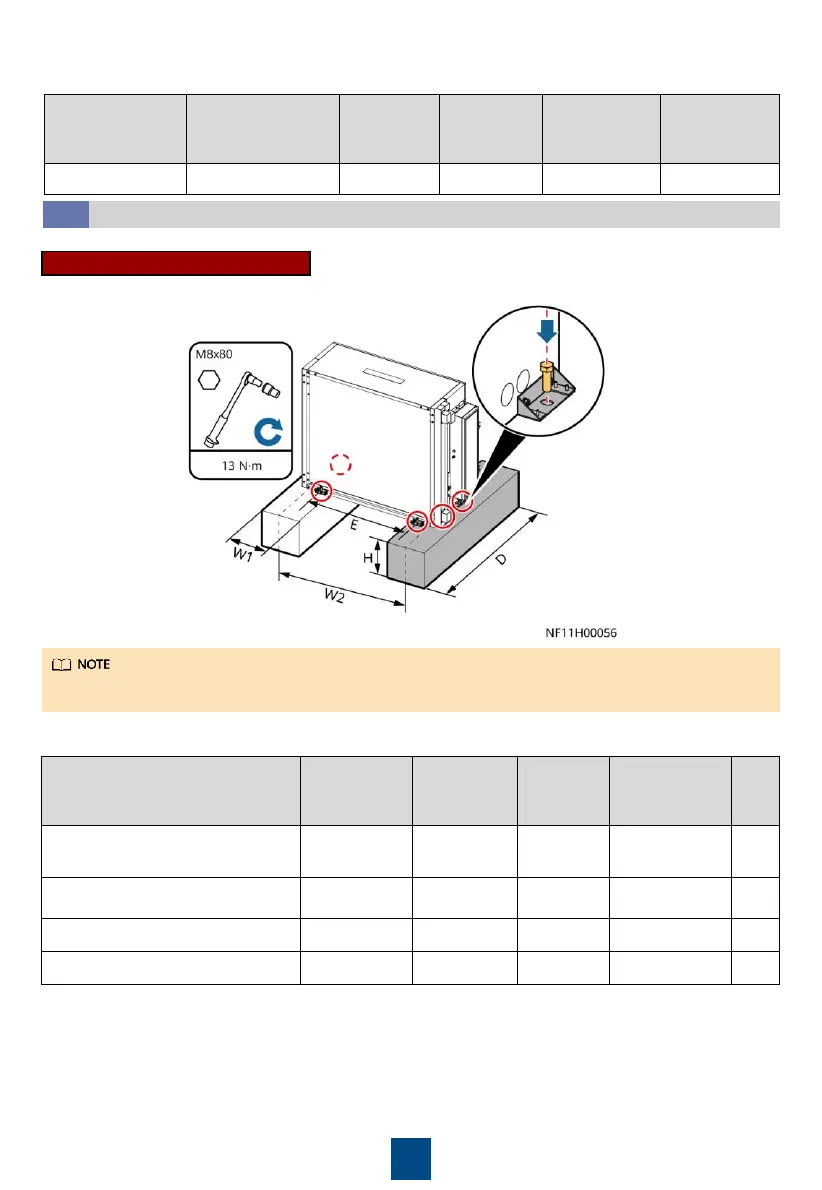

Concrete platform dimensions (unit: mm)
Vertical Installation (Choose Either Horizontal or Vertical Installation)
4.4
Model
Block Width
(W1)
Block
Depth (D)
Block
Height
(H)
Center
Distance
(W2)
E
NetCol500
-A060 (52273539,
52273539
-005)
W1 ≥ 300
D ≥ 500
150
–250
1150
1037
NetCol500
-A060 (52273539-006)
W1 ≥ 300
D ≥ 500
150
–250
1120
978
NetCol500
-A080
W1 ≥ 300
D ≥ 500
150
–250
1920
1742
NetCol500
-A120
W1 ≥ 300
D ≥ 500
150
–250
2120
1217
Concrete platform dimensions (unit: mm)
NetCol500-A060/A080/A120
The strength level of the concrete platforms must be equal to or greater than C20.
