Connecting cables to the PDU for a 1+1 or 2+0 UPS2000-G-10 kVA parallel system (three-phase input single-phase
output)

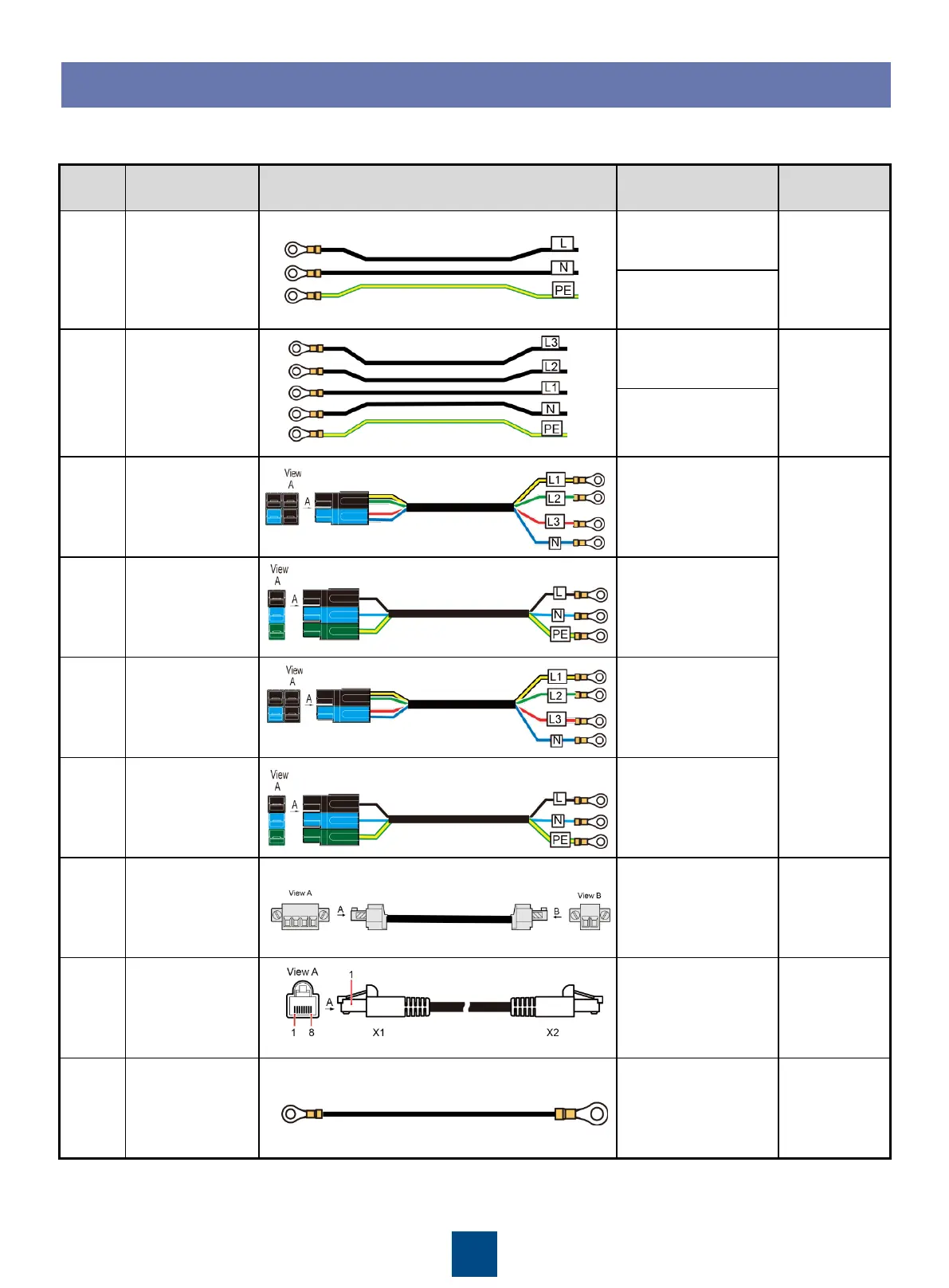

 Cable list
No.
Item
Appearance
Specifications
Remarks
1
PDU AC
OUTPUT power
cable
10 mm² (1+1
UPS2000-G-10 kVA
parallel system)
Prepared
onsite
16 mm² (2+0
UPS2000-G-10 kVA
parallel system)
2
PDU AC INPUT
power cable
6 mm² (1+1 UPS2000-
G-10 kVA parallel
system)
Prepared
onsite
6 mm² (2+0 UPS2000-
G-10 kVA parallel
system)
3
UPS1 AC INPUT
power cable
N/A
The cables is
delivered with
PDU, with a
part number of
04090675.
4
UPS1 AC
OUTPUT power
cable
N/A
5
UPS2 AC INPUT
power cable
N/A
6
UPS2 AC
OUTPUT power
cable
N/A
7
Maintenance
bypass port cable
RVV 4 x 0.5
Prepared
onsite
(connectors
provided)
8
CAN
communications
port cable
SBYV-100 4 x 2 x 0.5
Prepared
onsite
9
Cable for short-
circuiting mains
and bypass input
N wiring terminals
6 mm²
Prepared
onsite
M4 M6
