1. The table lists only the cables directly connected to the PDU. For details about other cables and
cable types, see the quick installation guides for related devices.
2. Configure colors for the cables prepared onsite in accordance with the local regulations.
Device
Tool
Screw
Torque
UPS2000-G-6 kVA
M4 x 0.7p
1.3 N·m
UPS2000-G-10 kVA
M5 x 0.8p
1.5 N·m
PDU
M5 x 0.8p
1.5 N·m
 Torque for tightening power cables
Torque
screwdriver

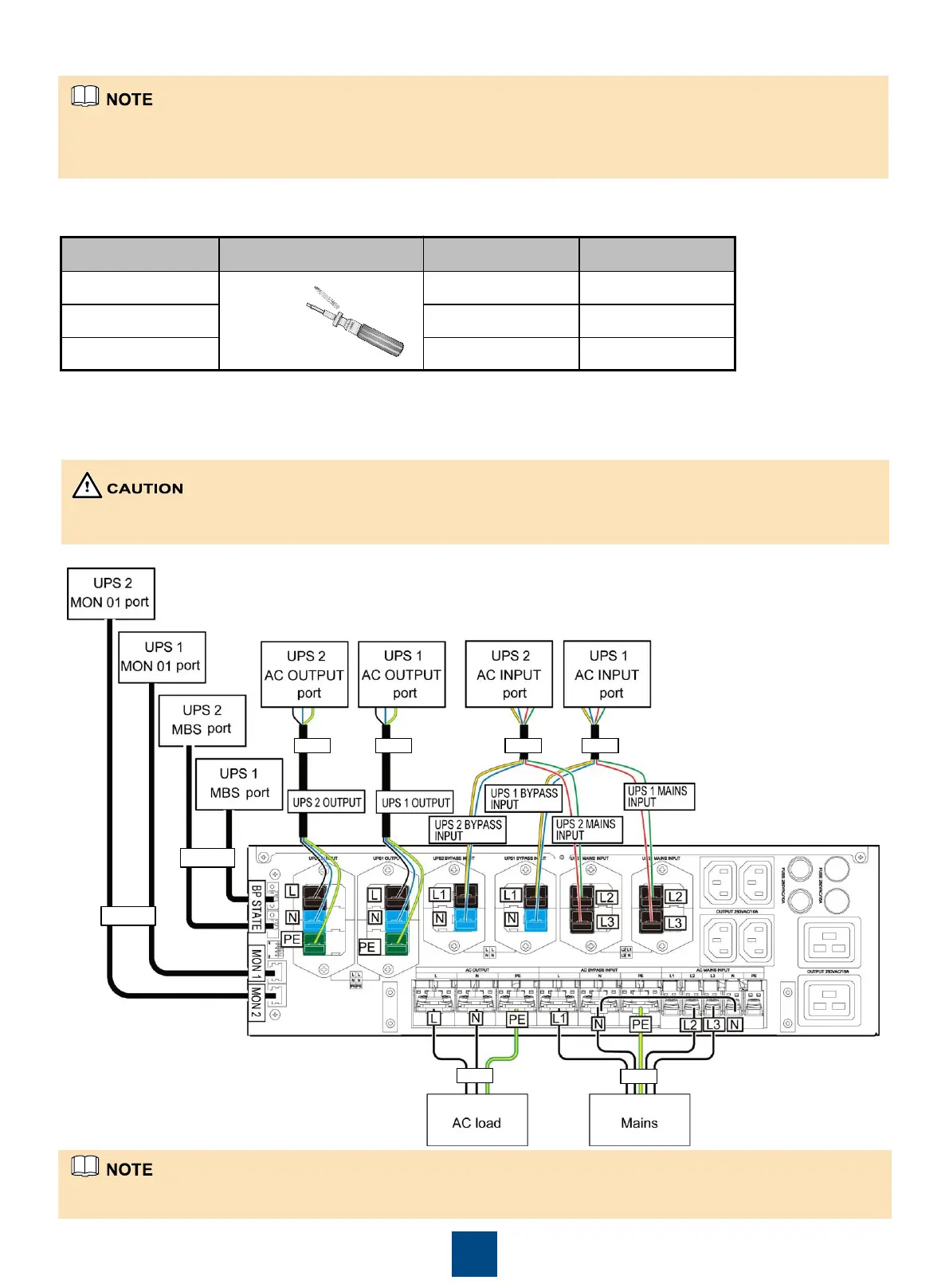

 Connecting cables to the PDU for a 1+1 or 2+0 UPS2000-G-10 kVA parallel system (three-phase input single-phase
output)
Short-circuit N wiring terminals on the AC MAIN INPUT power cable and AC BYPASS INPUT power cable.
MBS is short for maintenance bypass switch.
7
2
1
3 5 4 6
8
Connect cables from bottom to top: Install cables for devices at the bottom and then devices on the top. When connecting
cables to one device, connect those at the bottom first and then those on the top.
