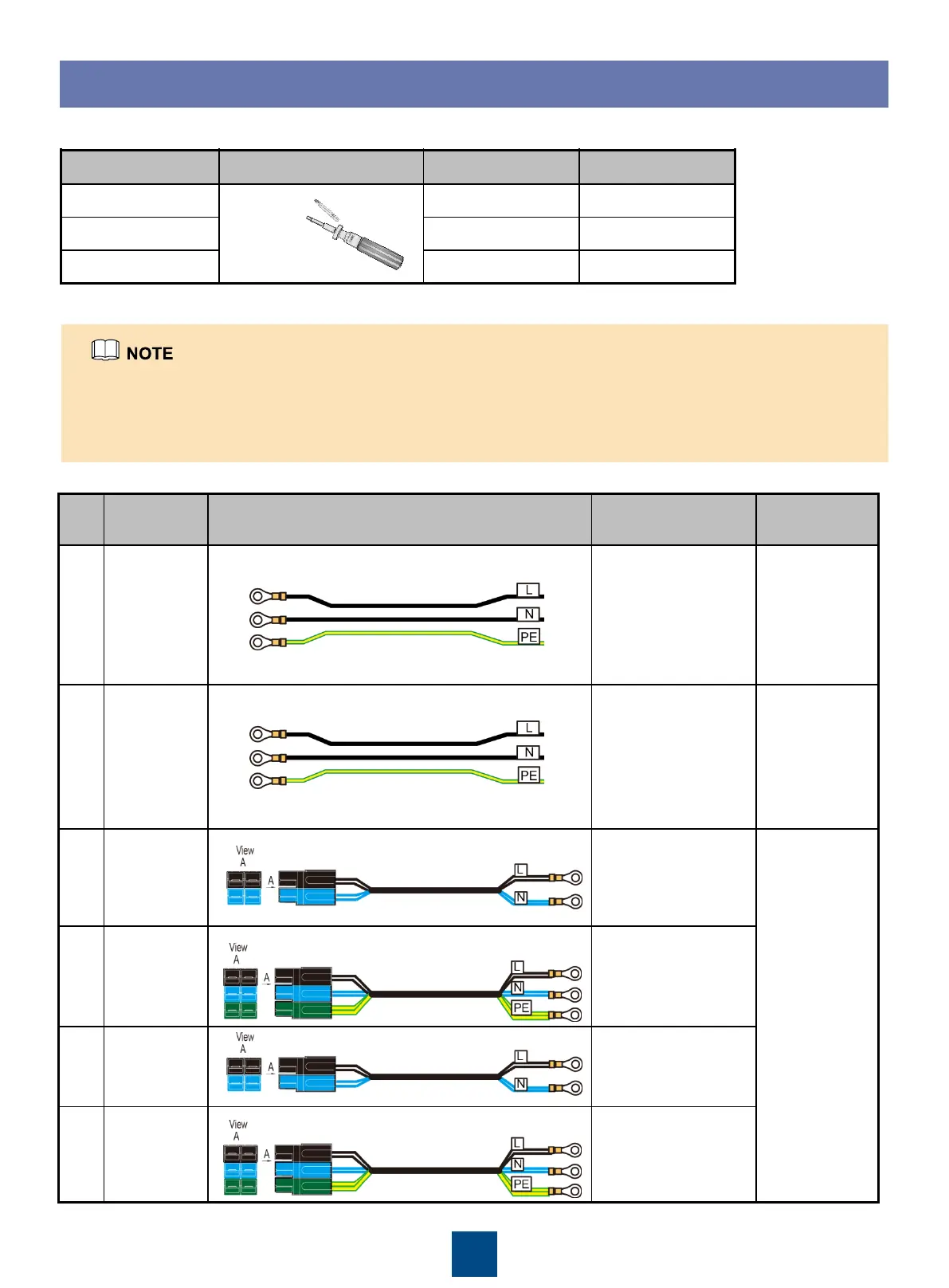

 Cable list
No.
Item
Appearance
Specifications
Remarks
1
PDU AC
output power
cable
16 mm² (1+1
UPS2000-G-15
kVA/20 kVA parallel
system)
Prepared onsite
2
PDU bypass
input power
cable
16 mm² (1+1
UPS2000-G-15
kVA/20 kVA parallel
system)
Prepared onsite
3
PDU UPS 1
AC input
power cable
N/A
The cables is
delivered with
PDU, with a part
number of
04090676.
4
PDU UPS 1
AC output
power cable
N/A
5
PDU UPS 2
AC input
power cable
N/A
6
PDU UPS 2
AC output
power cable
N/A
 Torque for tightening power cables
Connecting cables to the PDU for a 1+1 UPS2000-G-15 kVA/20 kVA parallel system (single-phase input single-phase
output)
Device
Tool
Screw
Torque
UPS2000-G-15 kVA
M5 x 0.8p
1.5 N·m
UPS2000-G-20 kVA
M5 x 0.8p
1.5 N·m
PDU
M5 x 0.8p
1.5 N·m
Torque
screwdriver
1. The table lists only the cables directly connected to the PDU. For details about other cables and cable types, see
the quick installation guides for related devices.
2. Configure colors for the cables prepared onsite in accordance with the local regulations.
3. If customers purchase input and output power cables by themselves, use the cables that comply with standards
proposed by Underwriters Laboratories (UL) or International Electrotechnical Commission (IEC).
