Huawei PDC-0091V2ACIOA

14
7
2 1
3 5 4
6
8
No.
Item
Appearance
Specifications
Remarks
7
Maintenance
bypass port
cable
RVV 4 x 0.5
Prepared
onsite
(connectors
provided)
8
CAN
communications
port cable
SBYV-100 4 x 2 x 0.5
Prepared
onsite

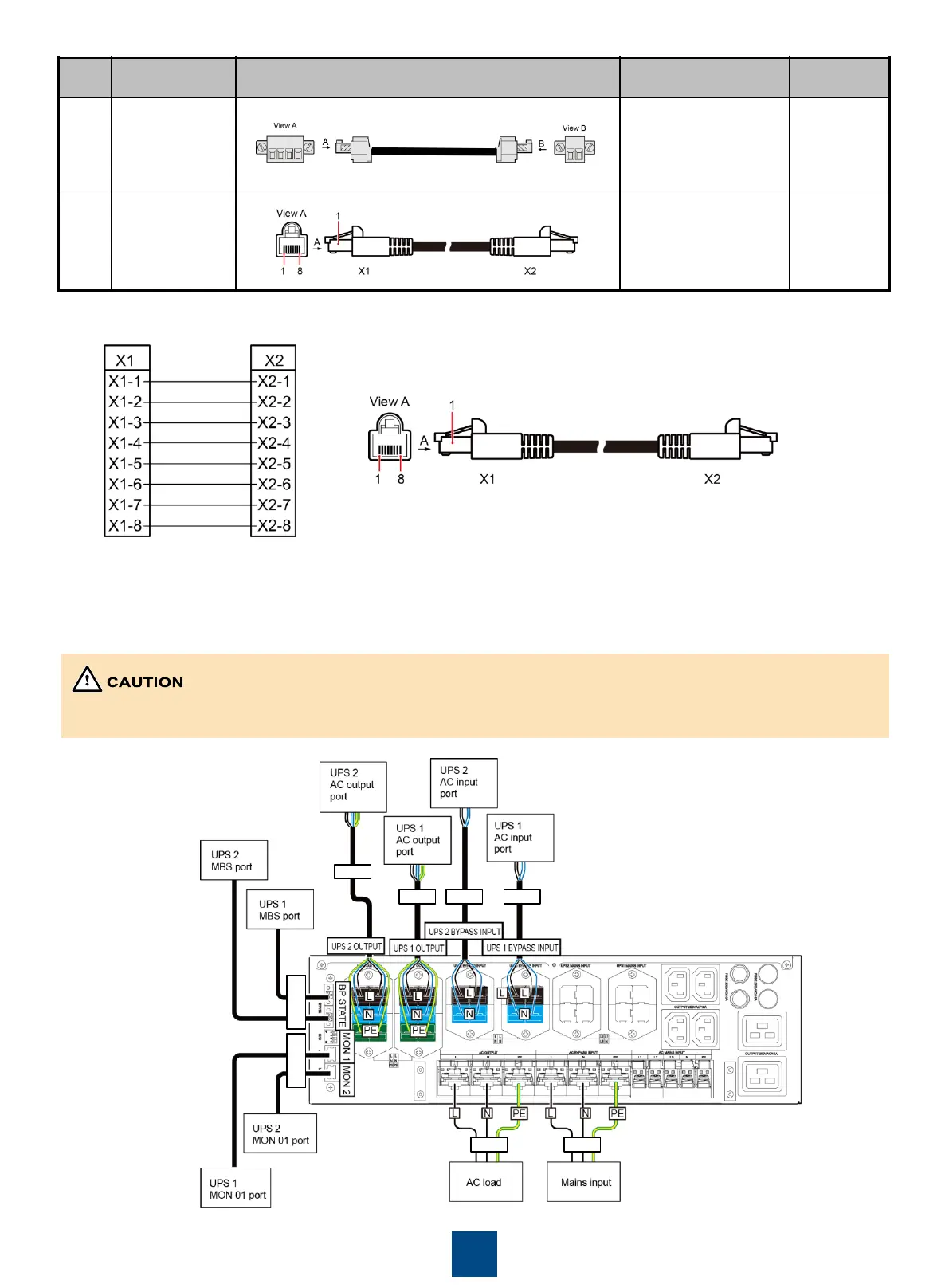

 Connecting cables to the PDU for a 1+1 UPS2000-G-15 kVA/20 kVA parallel system (single-phase input single-
phase output)
MBS is short for maintenance bypass switch.
Mapping between cable connectors for CAN communications ports
Connect cables from bottom to top: Install cables for devices at the bottom and then devices on the top. When connecting
cables to one device, connect those at the bottom first and then those on the top.
