Huawei PDC-0091V2ACIOA

15
No.
Item
Appearance
Specifications
Remarks
1
PDU AC
output power
cable
16 mm² (1+1
UPS2000-G-15
kVA/20 kVA parallel
system)
Prepared
onsite
2
PDU bypass
input power
cable
16 mm² (1+1
UPS2000-G-15
kVA/20 kVA parallel
system)
Prepared
onsite
PDU mains
input power
cable
6 mm² (1+1
UPS2000-G-15
kVA/20 kVA parallel
system)
3
PDU UPS 1
bypass input
power cable
N/A
The cables is
delivered with
PDU, with a
part number
of 04090677.
PDU UPS 1
mains input
power cable
N/A
4
PDU UPS1
output power
cable
N/A
5
PDU UPS2
bypass input
power cable
N/A
PDU UPS2
mains input
power cable
N/A
6
PDU UPS2
output power
cable
N/A

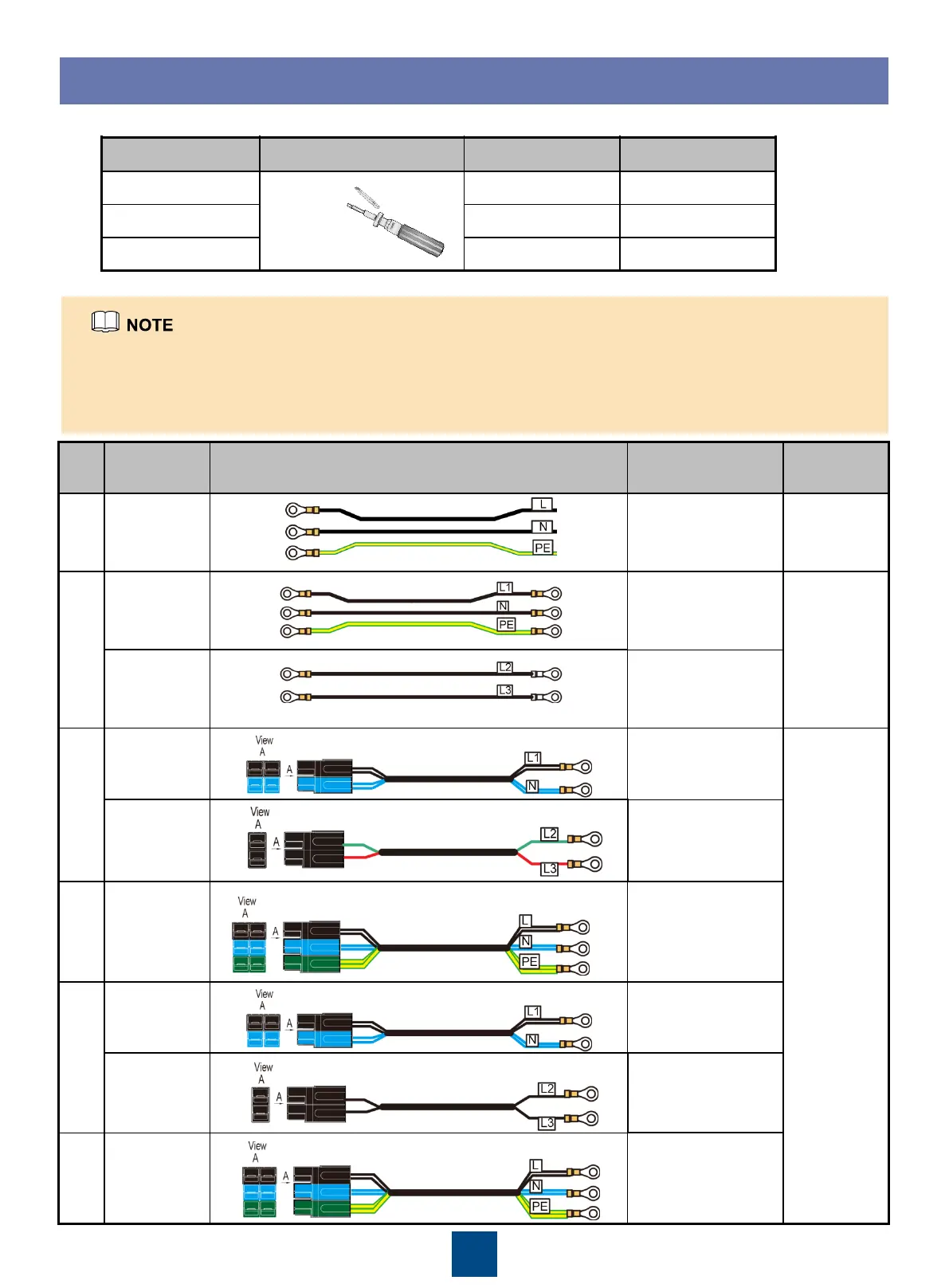

Connecting cables to the PDU for a 1+1 UPS2000-G-15 kVA/20 kVA parallel system (Three-phase input single-phase
output and One Mains Input)
 Cable list
Device
Tool
Screw
Torque
UPS2000-G-15 kVA
M5 x 0.8p
1.5 N·m
UPS2000-G-20 kVA
M5 x 0.8p
1.5 N·m
PDU
M5 x 0.8p
1.5 N·m
Torque
screwdriver
 Torque for tightening power cables
1. The table lists only the cables directly connected to the PDU. For details about other cables and cable types, see
the quick installation guides for related devices.
2. Configure colors for the cables prepared onsite in accordance with the local regulations.
3. If customers purchase input and output power cables by themselves, use the cables that comply with standards
proposed by Underwriters Laboratories (UL) or International Electrotechnical Commission (IEC).
