Quidway S5000 Series Ethernet Switches Chapter 2 Logging in Ethernet Switch
2-7
 Note:
1) The Modem configuration commands and outputs may be different according to different Modems. For
details, refer to the User Manual of the Modem.
2) It is recommended that the transmission rate on the Console port must lower than that of Modem,
otherwise packets may be lost.
Step 3: As shown in the figure below, to set up the remote configuration environment,
connect the Modems to a PC (or a terminal) serial port and the Ethernet switch Console
port respectively.
Modem
Telephone line
Modem
Modem serial port line
Remote tel:
82882285
Console port
PSTN

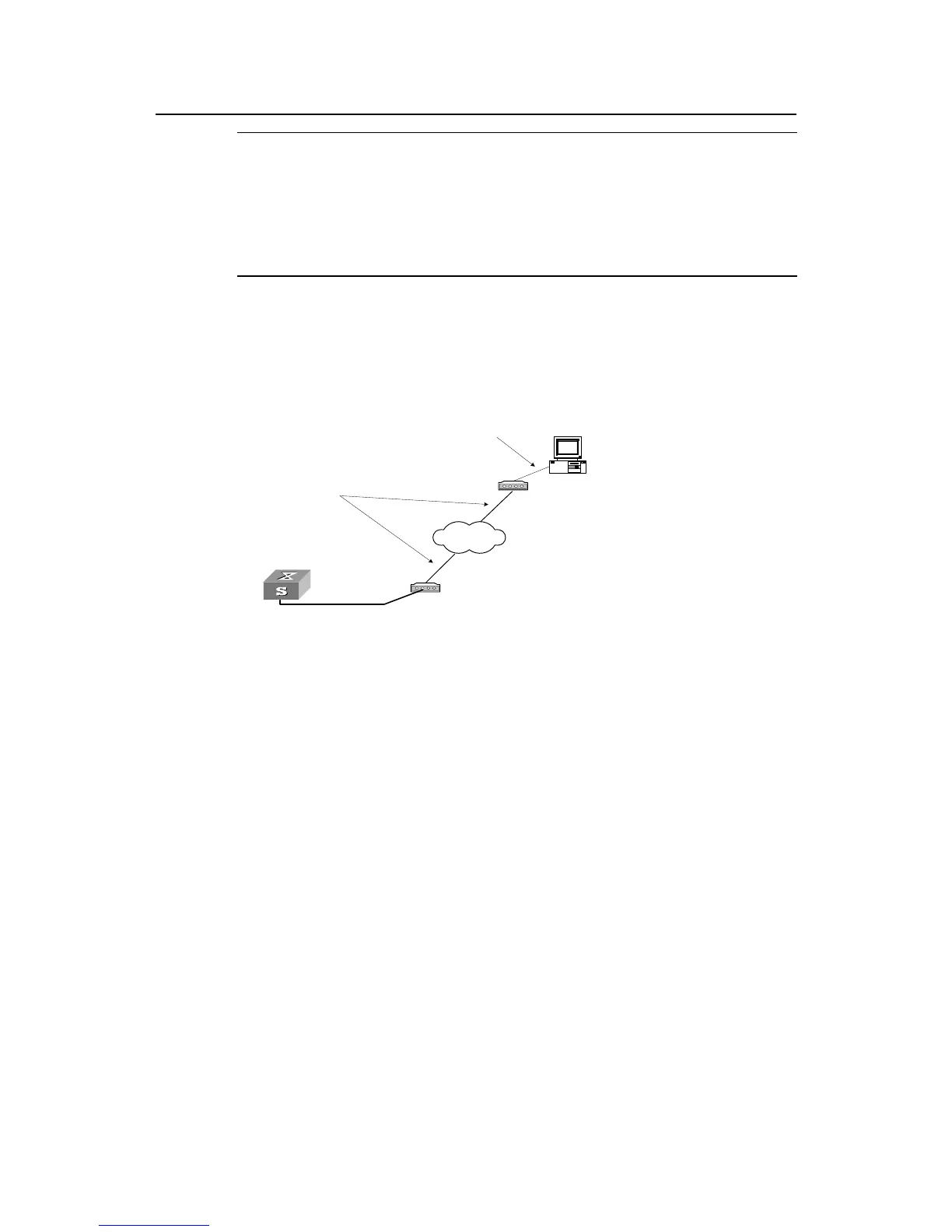

Figure 2-8 Set up remote configuration environment
Step 4: Dial for connection to the switch, using the terminal emulator and Modem on the
remote end. The number dialed shall be the telephone number of the Modem
connected to the Ethernet switch. See the two figures below.
