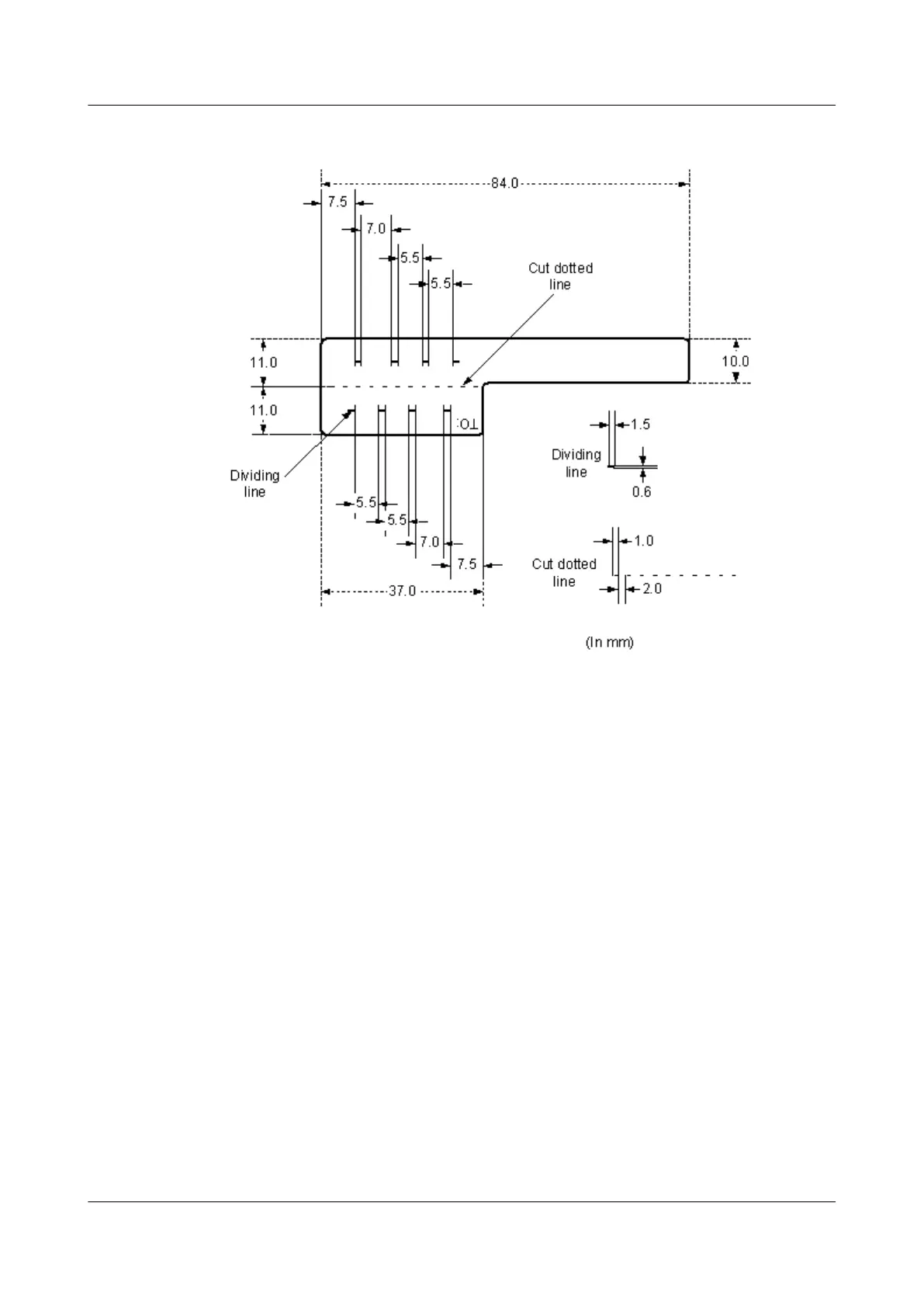

Figure B-1 Label for signal cables
To specify more clearly the position of a cable, use the dividing lines on the label. For example,
there is a dividing line between the cabinet number and the chassis number, and another one
between the chassis number and the slot number. The dividing line is 1.5 mm x 0.6 mm in size
with the color of PONTONE 656c (light blue).
The cut dotted line helps to fold the label when affixed to the cable, and its size is 1 mm x 2 mm.
There is a mark "TO:" (upside down in the figure) at the lower right corner of the label. The
mark is used to identify the opposite end of the cable on which the label is affixed.
Power Cable Label
The label for power cables should be attached to the identification plate on the cable ties that
are bundled to the cable. The identification plate has an embossment of 0.2 mm x 0.6 mm around
(symmetric on both sides), and the area in the middle is for affixing the label, as shown in Figure
B-2.
Quidway S5300 Series Ethernet Switches
Quick Start B Engineering Labels for Cables
Issue 01 (2008-12-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
B-3
