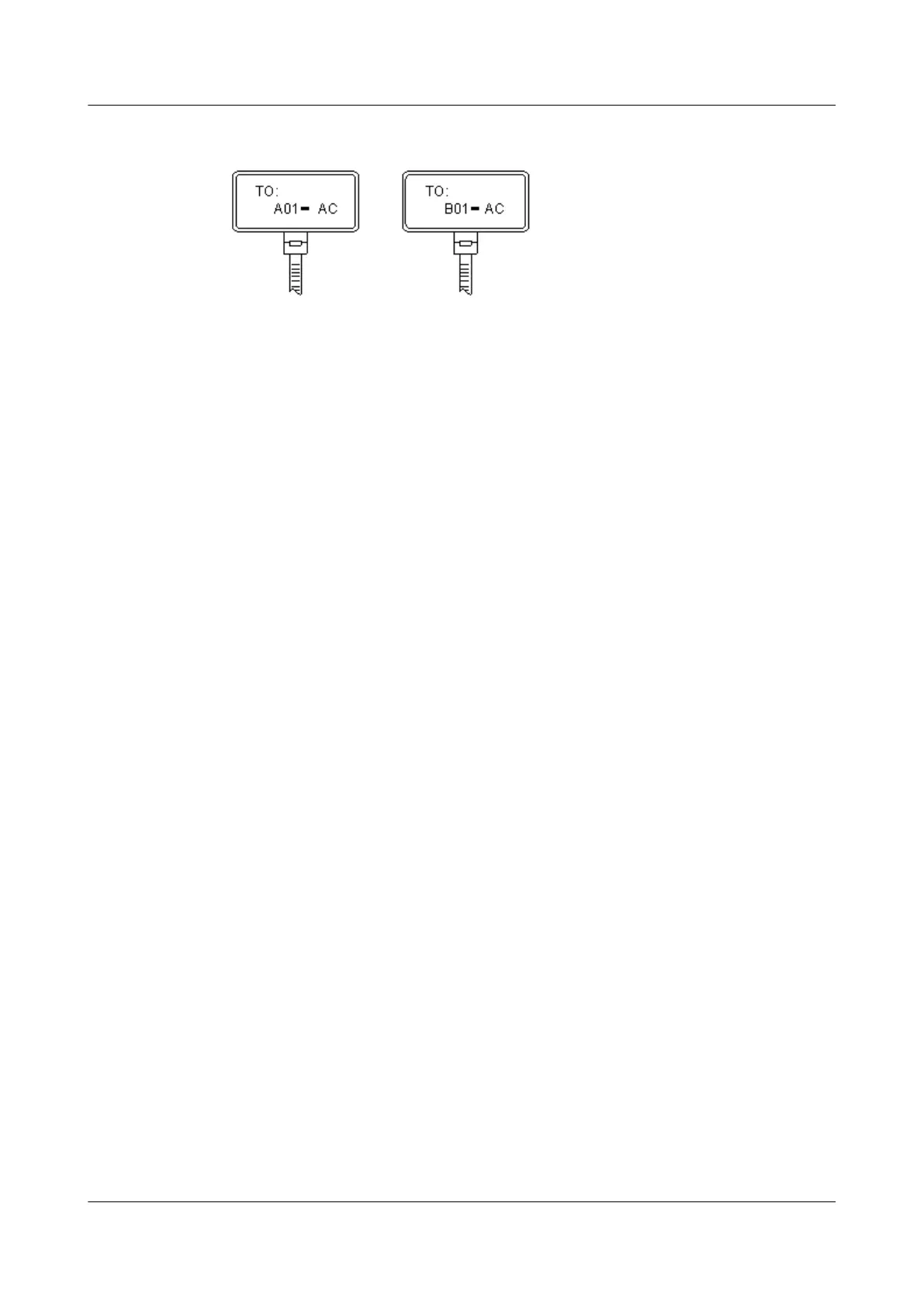

Figure B-16 Labels for AC power cables
Meaning of the label in Figure B-16.
l On the loaded cabinet side, the label “A01-AC” indicates that the power cable is connected
to the socket of Row A and Column 01 in the machine room.
l On the power socket side, the label marked with “B01-AC1” indicates that the power cable
is connected to AC power socket on Row B, Column 01 in the machine room.
B Engineering Labels for Cables
Quidway S5300 Series Ethernet Switches
Quick Start
B-22 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2008-12-26)
