Figure 5-10 Heating the heat shrink tubing (JG terminal)
----End
Assembling the Cord End Terminal and the Power Cable
Context
Figure 5-11 shows the components of a cord end terminal and a power cable.

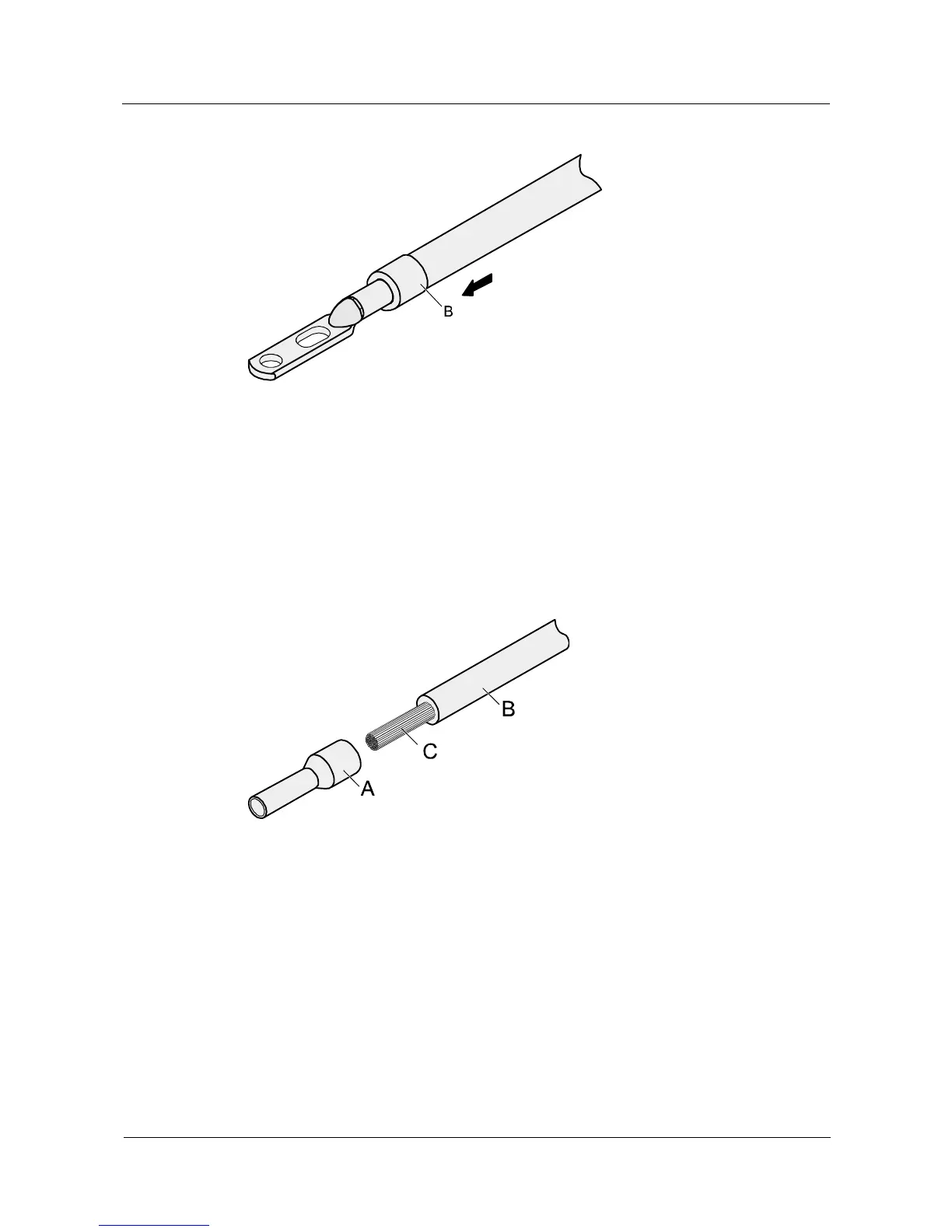

Figure 5-11 Components of a cord end terminal and a power cable
A. Cord end
terminal
B. Insulation layer of a power
cable
C. Conductor of a power
cable
Procedure
Step 1 Strip a part of the insulation to expose the cable conductor with a length of L1, as shown in
Figure 5-12. The recommended values of L1 are listed in Table 5-3.
