Huawei S1720 Series Hardware Description

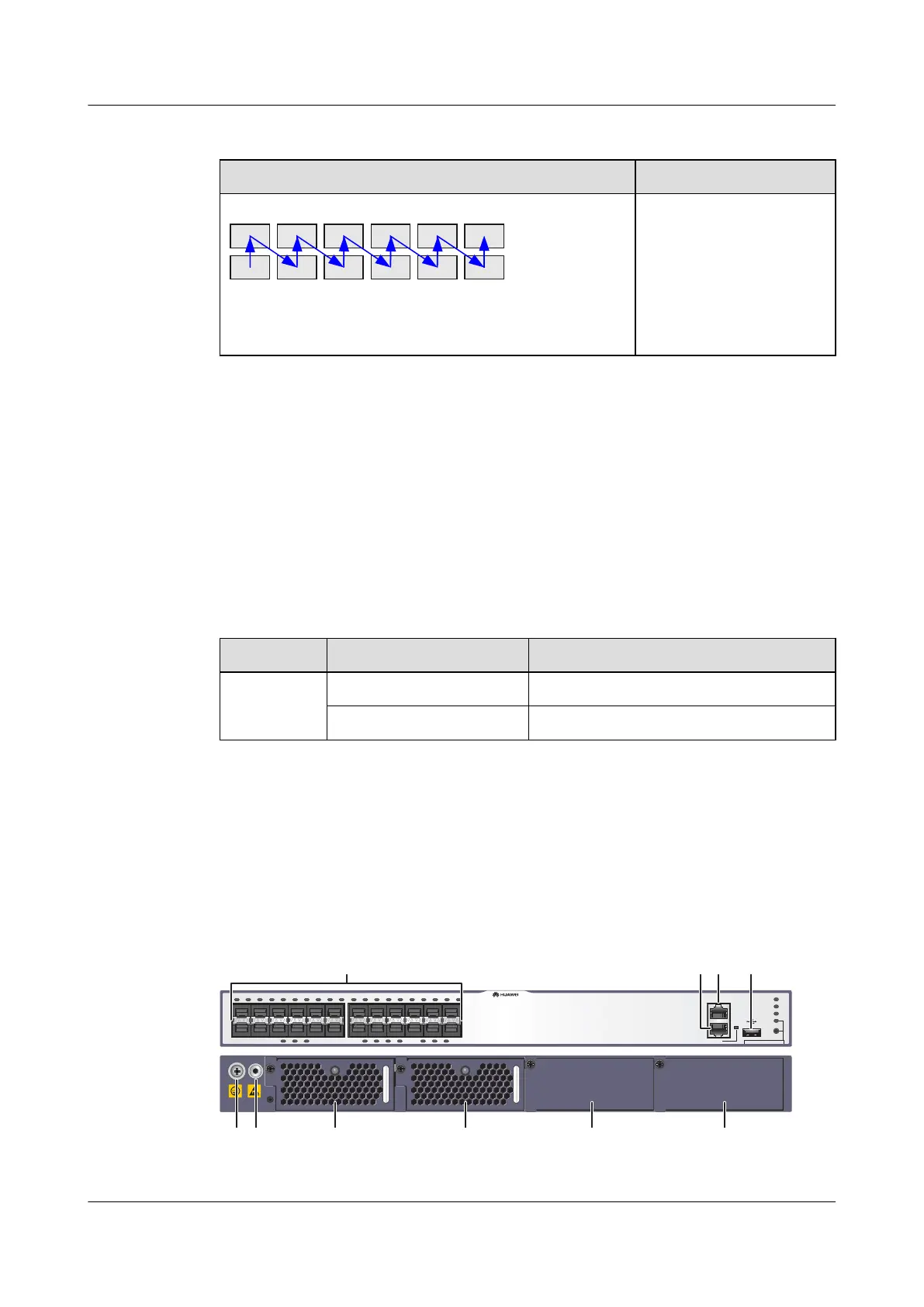

Table 2-2 Port numbering conventions
Port Numbering Diagram Description
1 3 5 7 9 11
2 4 6 8 10 12
There are two rows of
service ports on the device.
These ports are numbered
from bottom to top and left
to right, starting from 1.
For example, the port on the
top left is numbered 0/0/2.
2.4 S6700-EI
2.4.1 Version Mapping
Table 2-3 lists the mapping between the S6700-EI chassis and software versions.
Table 2-3 Mapping between the S6700-EI chassis and software versions
Series Model Available Version
S6700-EI S6700-24-EI V100R006C00 to V200R005C02
S6700-48-EI V100R006C00 to V200R005C02
2.4.2 Appearance and Structure
S6700-24-EI
Figure 2-2 Appearance of the S6700-24-EI
2
1
11
12
13
14
23
24
Quidway S6700 Series
CONSOLE
ETH
GREEN=SPEED RED=STACK
LINK/ACT
PWR1
PWR2
SYS
MODE
STATUS STATUS
1
56 7 8 9 10
23 4
S6700 Series Ethernet Switches
Hardware Description
2 Chassis
Issue 12 (2015-07-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12

Huawei S1720 Series Specifications

General

Operating Humidity	5% to 95% (non-condensing)
Uplink Ports	4 x GE combo ports
VLANs	4094
Power Supply	AC 100-240V, 50/60Hz
Layer 2 Features	VLAN
Layer 3 Features	Static routing
Management	SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to +70°C
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
