4.1 CX7E1FANA Fan Module
Product Support
Table 4-1 lists the switch chassis matching a CX7E1FANA fan module.
Table 4-1 Switch chassis matching a CX7E1FANA fan module
Fan Module Name Product Support
CX7E1FANA fan
module
Supported only in the S6700-24-EI and S6700-48-EI
Appearance

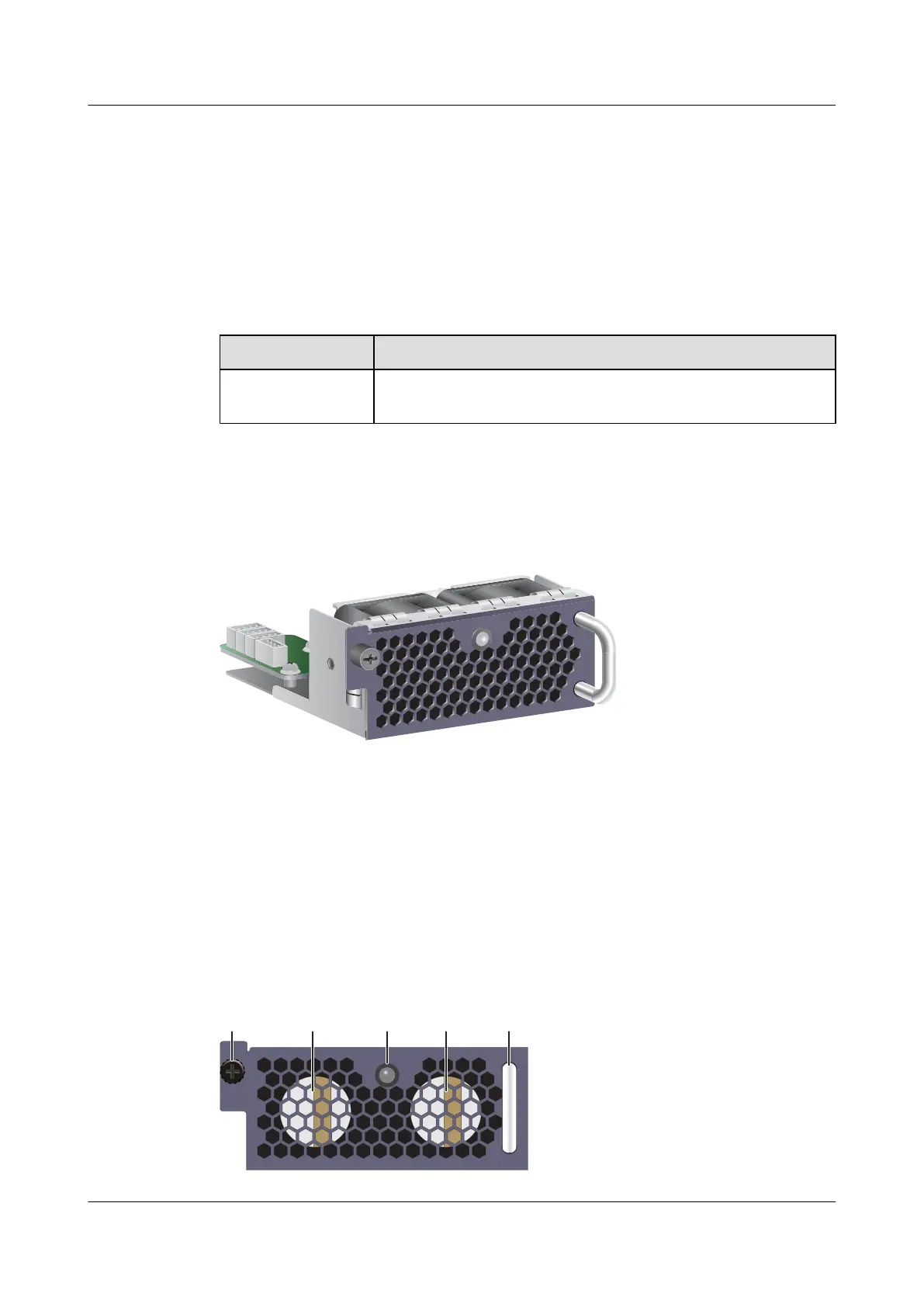

Figure 4-1 shows the appearance of a CX7E1FANA fan module.
Figure 4-1 Appearance of a CX7E1FANA fan module
STATUS
Function
A CX7E1FANA fan module has two fans to cool the chassis. A CX7E1FANA fan module is
hot swappable.
Panel Description
Figure 4-2 shows the panel of a CX7E1FANA fan module.
Figure 4-2 Panel of a CX7E1FANA fan module
STATUS
14 4 32
S6700 Series Ethernet Switches
Hardware Description
4 Fan Modules
Issue 12 (2015-07-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
55

Huawei S1720 Series Specifications

General

Operating Humidity	5% to 95% (non-condensing)
Uplink Ports	4 x GE combo ports
VLANs	4094
Power Supply	AC 100-240V, 50/60Hz
Layer 2 Features	VLAN
Layer 3 Features	Static routing
Management	SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to +70°C
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
