Device
Type
Model Indicator
PoE switch
supporting
two power
supplies
S5700-28C-
PWR-EI
Take S5700-28C-PWR-EI for example. See Figure 2-9.
S5700-52C-
PWR-EI
S5700-24TP-
PWR-SI
S5700-48TP-
PWR-SI
S5700-28C-
PWR-SI
S5700-52C-
PWR-SI
S5710-28C-
PWR-LI
S5710-52C-
PWR-LI
PoE switch
supporting a
single power
supply
S5700-28P-
PWR-LI-AC
Take S5700-28P-PWR-LI-AC for example. See Figure
2-10.
S5700-52P-
PWR-LI-AC
Indicators of a Non-PoE S5700
S5700-24TP-SI-AC, and S5700-28P-LI-AC are non-PoE switches.
NOTE
Only S5700-24TP-SI-AC, S5700-24TP-SI-DC, S5700-48TP-SI-AC and S5700-48TP-SI-DC have
redundant power supply (RPS) indicators.

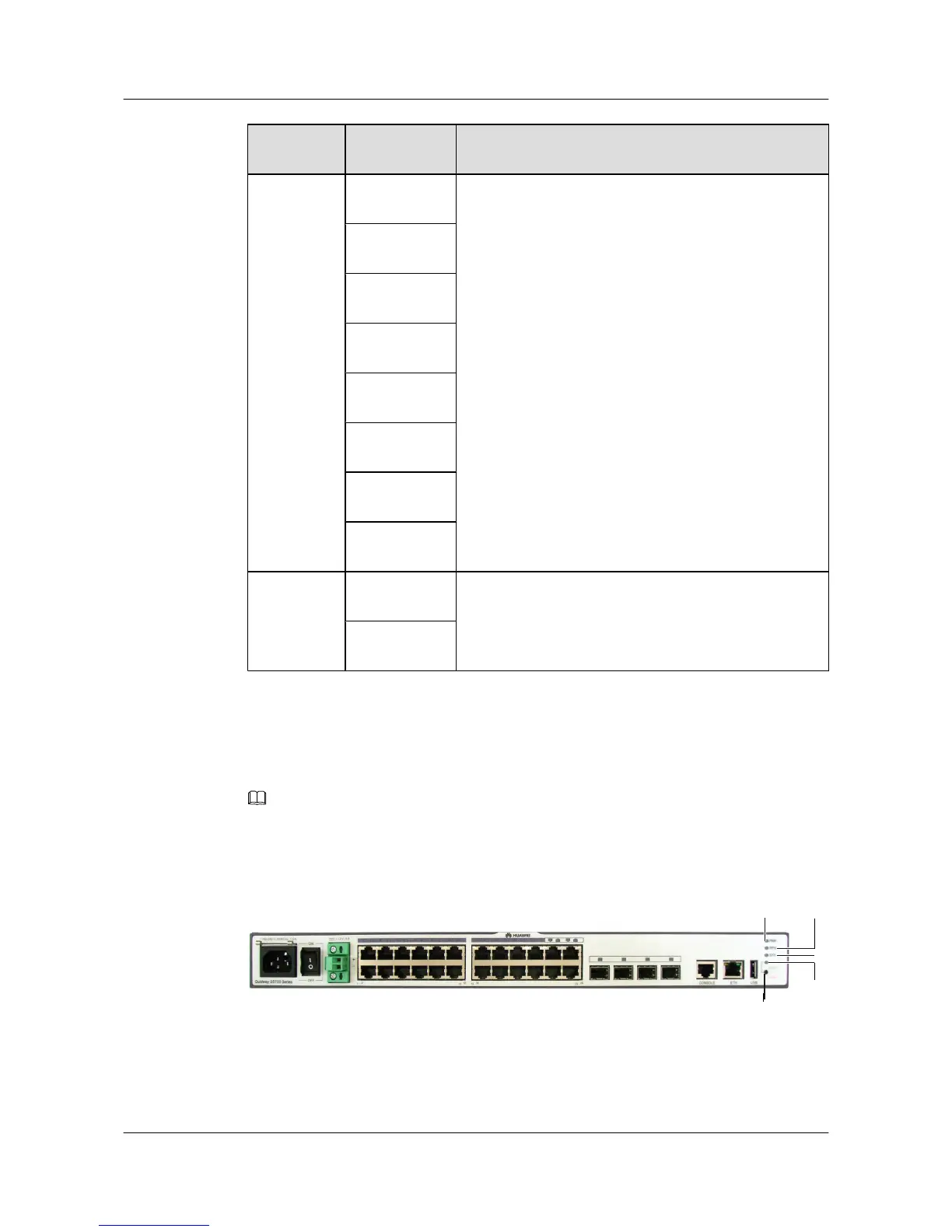

Figure 2-5 S5700-24TP-SI-AC indicators
2
3
4
5
1
