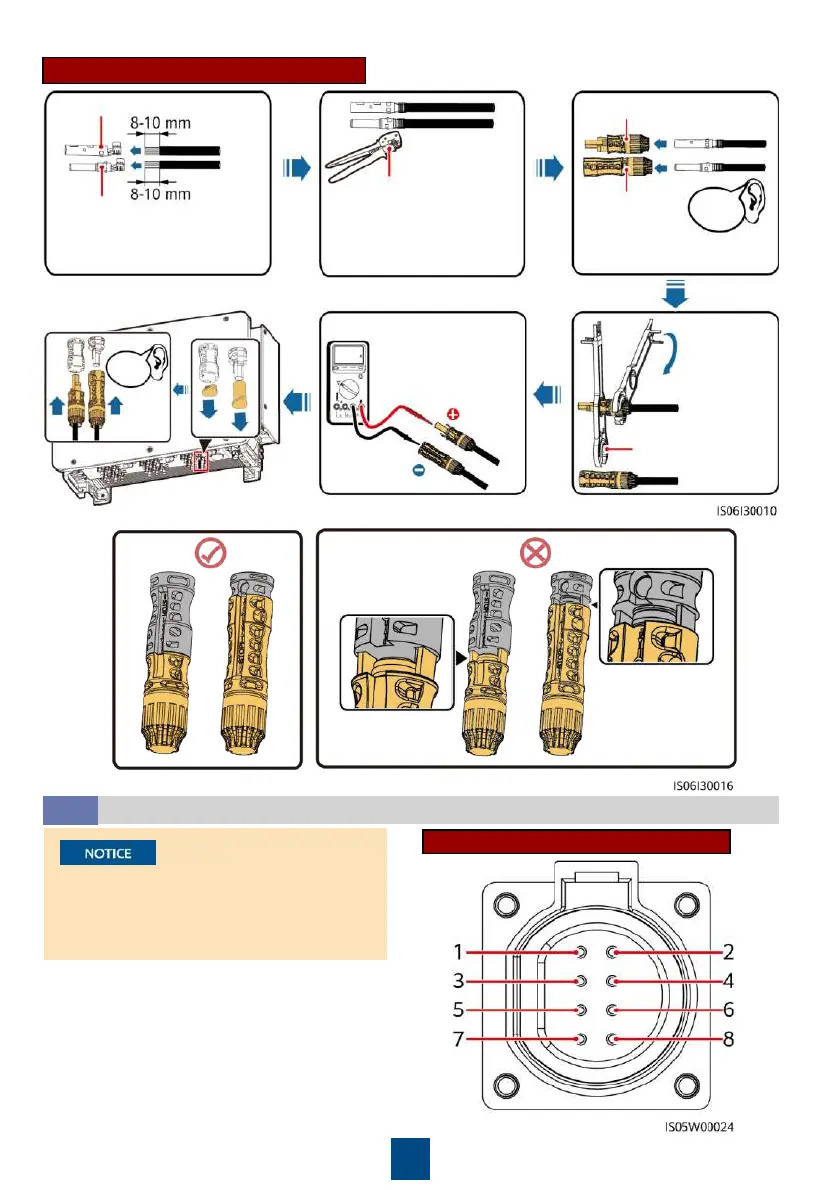

Installing a DC Input Power Cable
13001462
(STAUBLI)
Click
PV-CZM-41100
(STAUBLI)
Positive metal contact
Negative metal contact
Use a multimeter
to measure the
DC voltage. (DC
voltage: ≤ 1500 V)
Ensure that the cable
cannot be removed
after crimped.
Click
Positive connector
Negative
connector
Ensure that
the locking
nut is
secured.
Connector connection:
Communication Port Pin Definition
Installing the RS485 Communications Cable
4.10
When routing communications cables,
separate communications cables from
power cables to prevent communication
from being affected.
