Huawei SUN2000-200KTL-H2 Quick Guide

8
No.
Item
Type
Specifications
Description
4
RS485
communication
s cable
Outdoor shielded
twisted pair cable
•
Conductor cross-
sectional area: 0.25–
1
mm
2
• Cable outer diameter:
4–11 mm
When three
communications cables
connect to the signal
cable connector, the
outer diameter of the
cables should be 4
–8
mm.
5
(Optional)
Power cable of
the tracking
system
Three
-
core outdoor
copper cable with
dual
-layer
protection
•
Conductor cross-
sectional area: 10
mm
2
• Cable outer diameter:
15–18 mm
-
Note [1]: The value is valid only if the conductors of the PE cable and AC power cable use the
same material. If the materials are different, ensure that the conductor cross
-
sectional area of the
PE cable produces a conductance equivalent to that of the area S/2. The specifications of the PE
cable are subject to this table or calculated according to IEC 60364
-5-54.
Note [2]: You are advised to use a soft cable to prevent poor terminal contact due to the bending
stress of the cable
.
Note
[3]: For some models, the outer diameter of a single-core cable ranges from 14 mm to 36
mm based on the label in the maintenance compartment.

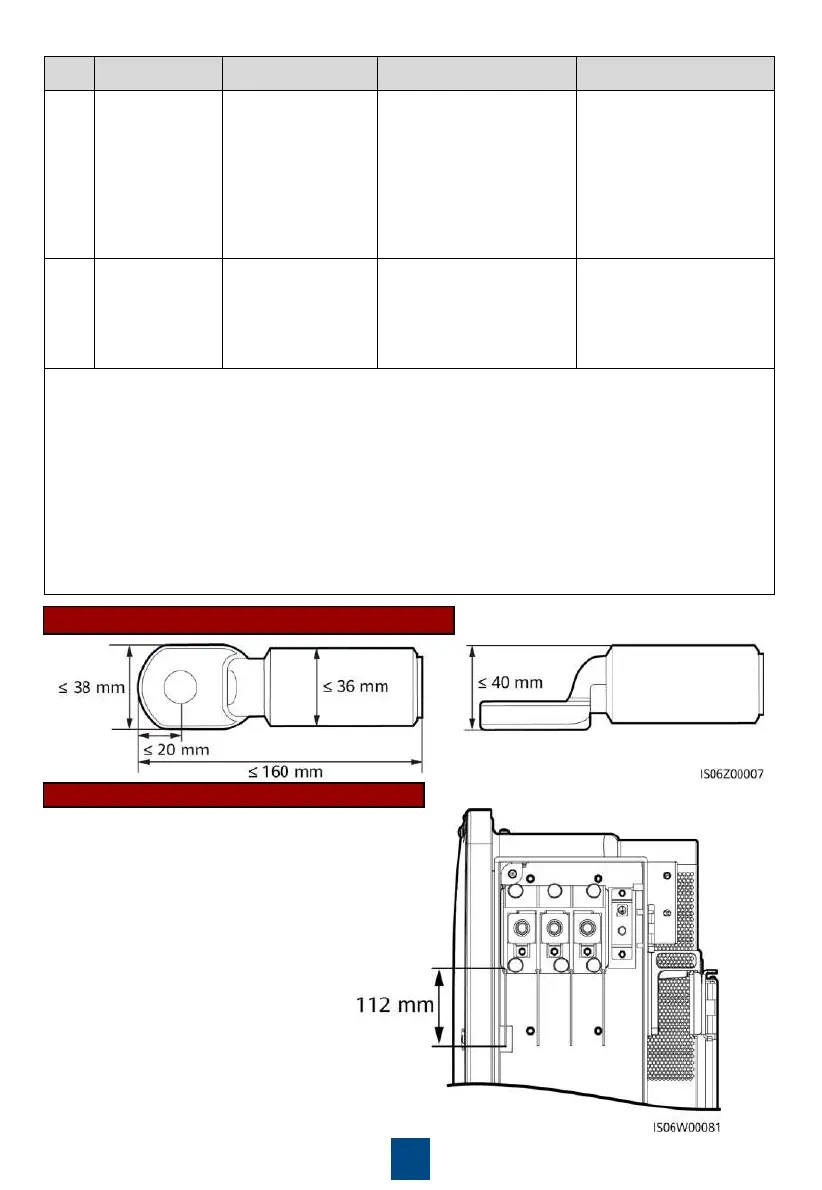

Note [4]: For some models, when the OT/DT terminal is crimped as shown in the following figure
and the rubber baffle plate of the AC wiring terminal is 112 mm, the maximum conductor cross
-
sectional area of the single
-core cable can be 400 mm
2
.
Specifications of the Crimped OT/DT Terminal
Specification of the Rubber Baffle Plate
