For ease of installing the inverter on the mounting bracket, connecting cables to the
bottom of the inverter, and maintaining the inverter in future, it is recommended that
the bottom clearance be between 600 mm and 730 mm. If you have any question
about the clearance, consult the local technical support engineers.

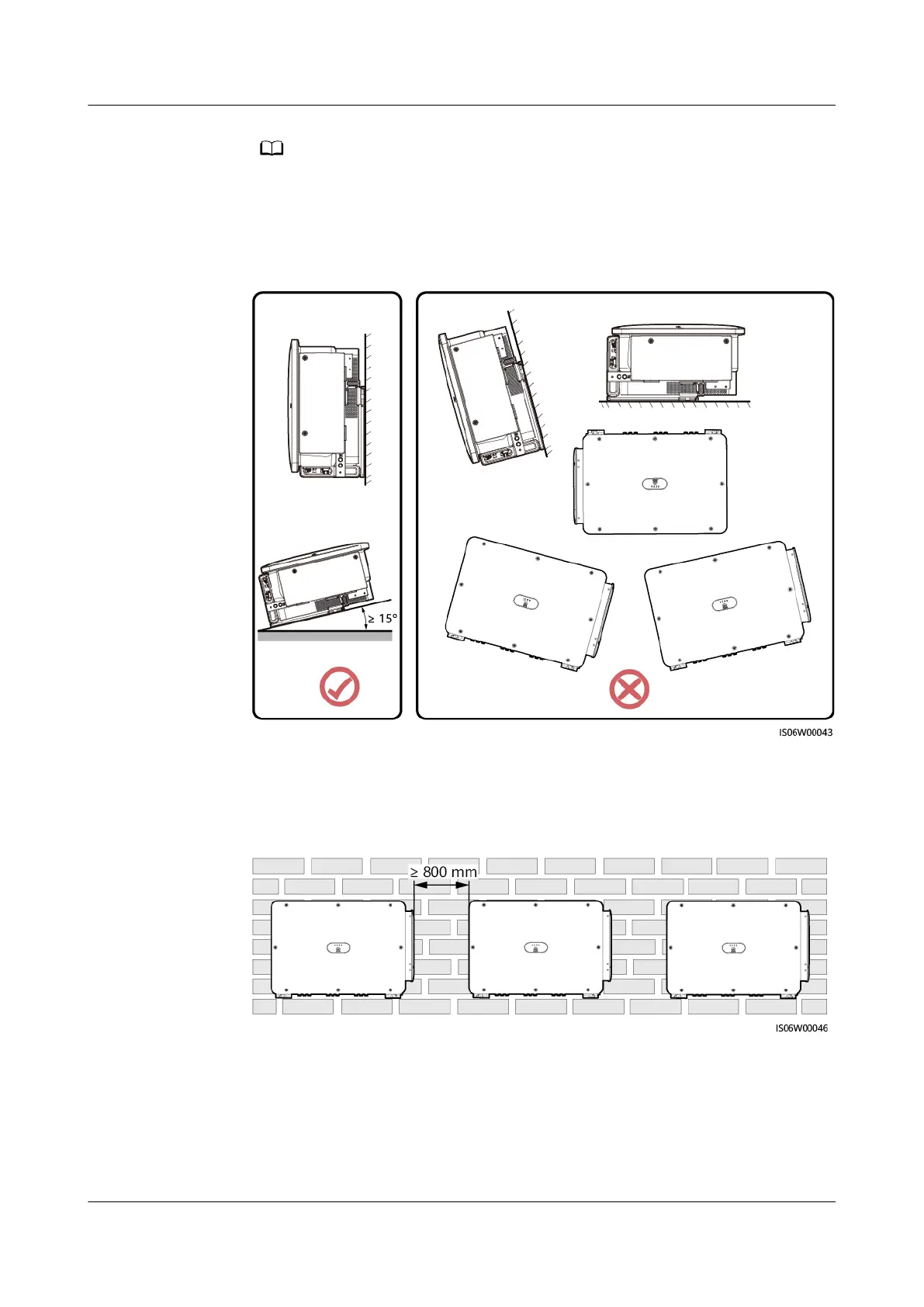

Figure 4-3 Installation angle
● When installing multiple inverters, install them in horizontal mode if sucient
space is available and install them in triangle mode if no sucient space is
available. Stacked installation is not recommended.
Figure 4-4 Horizontal installation mode (recommended)
SUN2000-(196KTL-H0, 200KTL-H2, 215KTL-H0)
Series
User Manual 4 Installation
Issue 07 (2021-07-08) Copyright © Huawei Technologies Co., Ltd. 23
