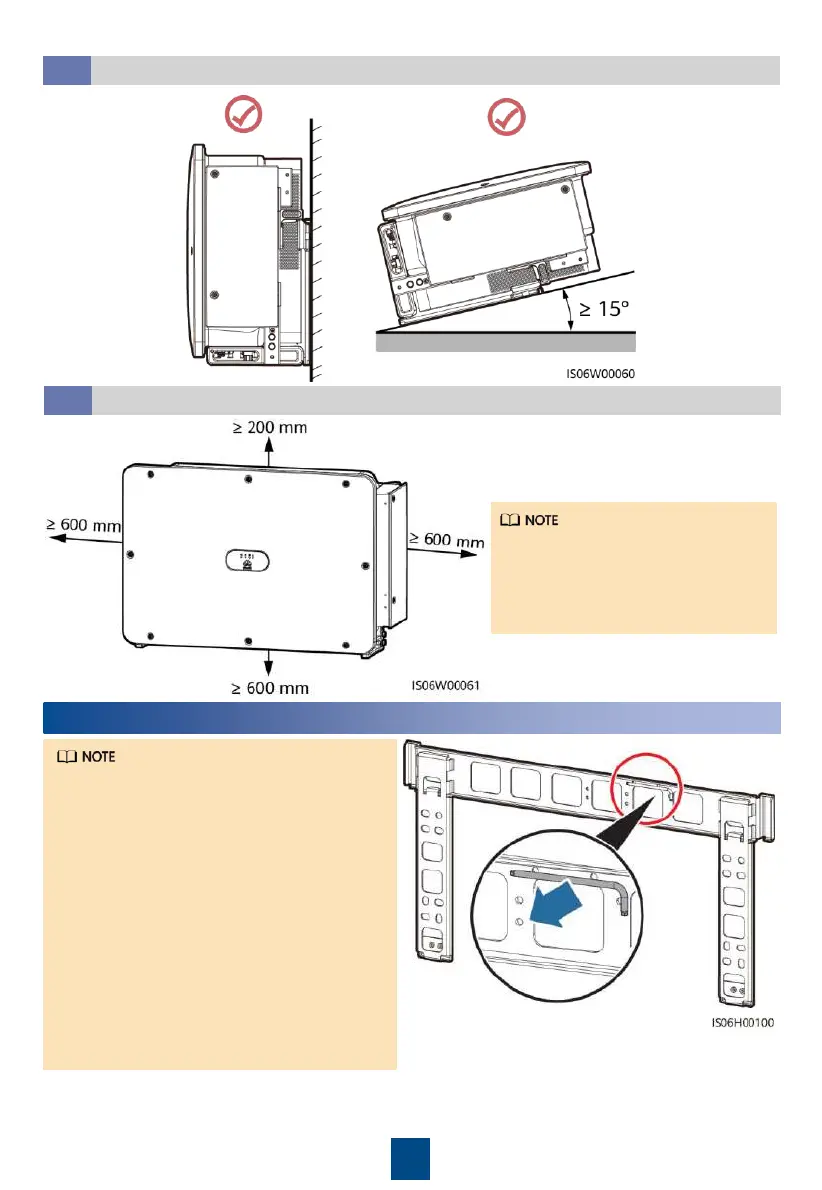

Installation Angle
2.1
Installation Space
2.2
•
The M12x40 bolt assemblies are
delivered with the SUN2000 (bound to
the mounting bracket). If the bolt
assembly length does not meet the
installation requirements, prepare M12
bolt assemblies by yourself and use them
together with the delivered M12 nuts.
•
Before installing the mounting bracket,
remove the security Torx wrench from
the mounting bracket and save it for
later use.
•
This document introduces how to install
the SUN2000 on a support as an
example. For details about wall-mounted
installation, see the user manual.
3
Installing the SUN2000
The clearance at the bottom must
meet the requirements on the
bending radius of the AC output
power cable.
