Huawei TMC11H - Service Cable Routing; Routing Device Service Cables

25

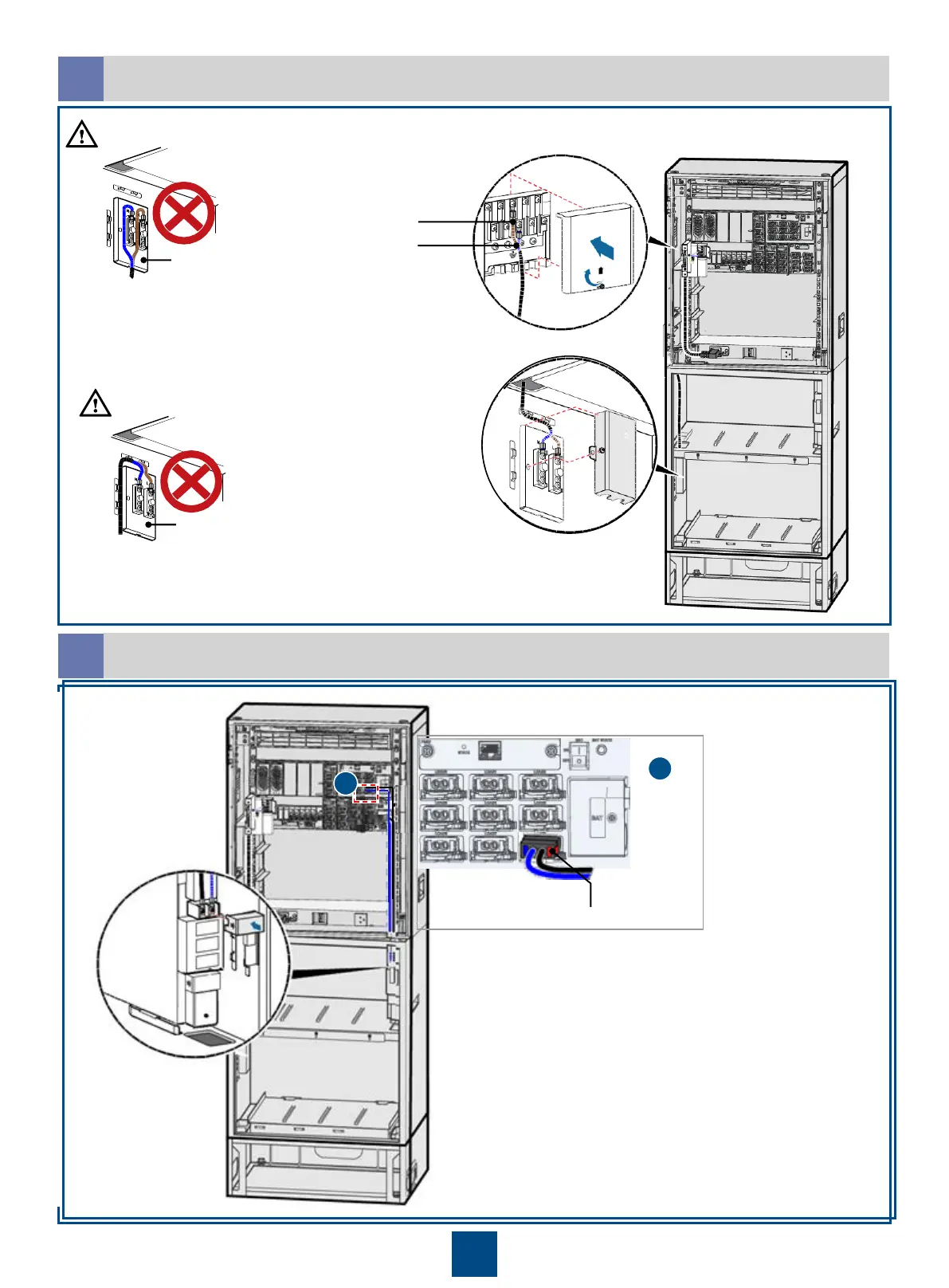

Installing the Power Cables for the Heating Films in the IBBS200D Battery Cabinet
e
Installing the Power Cables for the TEC in the IBBS200T Battery Cabinet
f
L1
N1
Power box of the heating film
The power cables for the heating films in the
IBBS200D battery cabinet must be routed
downward into the power box of the heating film.
Do not expose the core wires of the power cable
outside the power box of the heating film.
Power box of the heating film
CAUTION
CAUTION
From L1/N1
Load 8
1
1
