UPS2000-G-(1 kVA-3 kVA)
User Manual
4 Setting Control Panel
Issue 15 (2019-12-19)
Copyright © Huawei Technologies Co., Ltd.
32

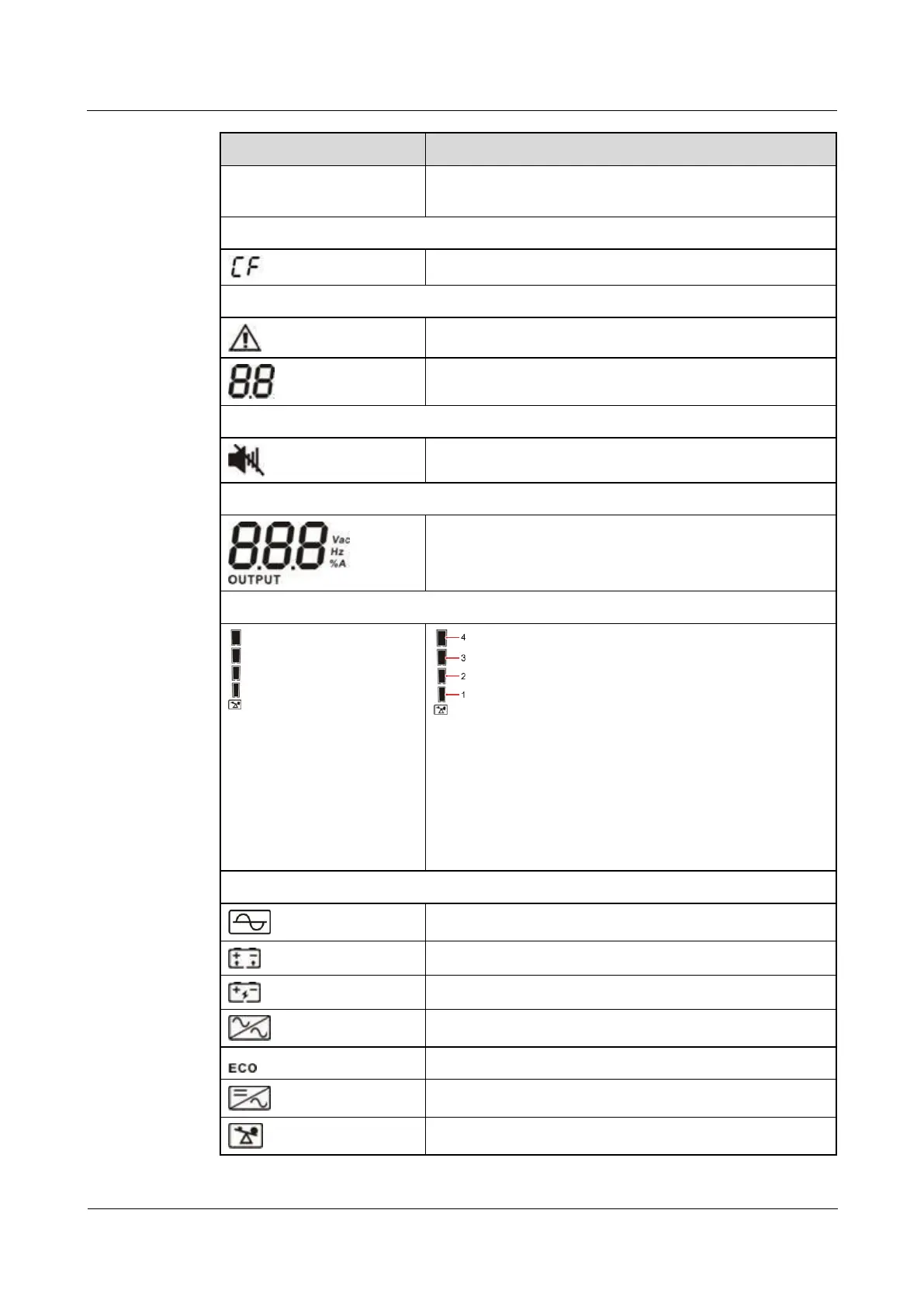

Icon
Function
mode) in digits.
H: hour; M: minute; S: second
Frequency conversion mode information
Displays that the UPS is in frequency conversion mode.
Alarm information
Indicates that an alarm occurs.
Indicates the warning or alarm ID.
Muting
Mutes the UPS.
Output information
Displays the output voltage, frequency, or battery voltage.
Vac: output voltage; Hz: output frequency; %: output load
ratio; A: output current
Load information
Displays the current load percentage by level:

[0–25%]: Indicator 1 is steady on.

(25%–50%]: Indicators 1 and 2 are steady on.

(50%–75%]: Indicators 1, 2 and 3 are steady on.

(75%–100%]: Indicators 1, 2, 3 and 4 are steady on.

> 100%: Indicators 1, 2, 3 and 4 are blink.
Mode operating information
Indicates that the UPS has connected to the mains.
Indicates that batteries are supplying power.
Indicates that batteries are being charged.
Displays that the UPS is in bypass mode.
Displays that the UPS is in ECO mode.
Indicates that the frequency conversion circuit is working.
Displays that the output socket is delivering power output.
