Connect the UPS to the RS232 or USB port on a PC. Then you can monitor the UPS status using
the PC as long as you have installed the monitoring software. The installation method for 1 kVA
UPS, 2 kVA UPS, and 3 kVA UPS is the same. The figures below based on the 3 kVA UPS.
Installing the UPS Communication Cable
3.3
1. The USB channel supports a serial data communications protocol between the UPS and the PC.
2. If you connect a DB9 connector to the RS232 port, the UPS can communicate with the PC over
serial data.
3. The UPS support either USB or RS232.
4. To monitor the UPS over a PC, also need to install the monitoring software iManager NetEco
1000U. For details about how to install and use the iManager NetEco 1000U, see the iManager
NetEco 1000U User Manual. The software and the user manual are available at
http://support.huawei.com or http://support.huawei.com/enterprise.

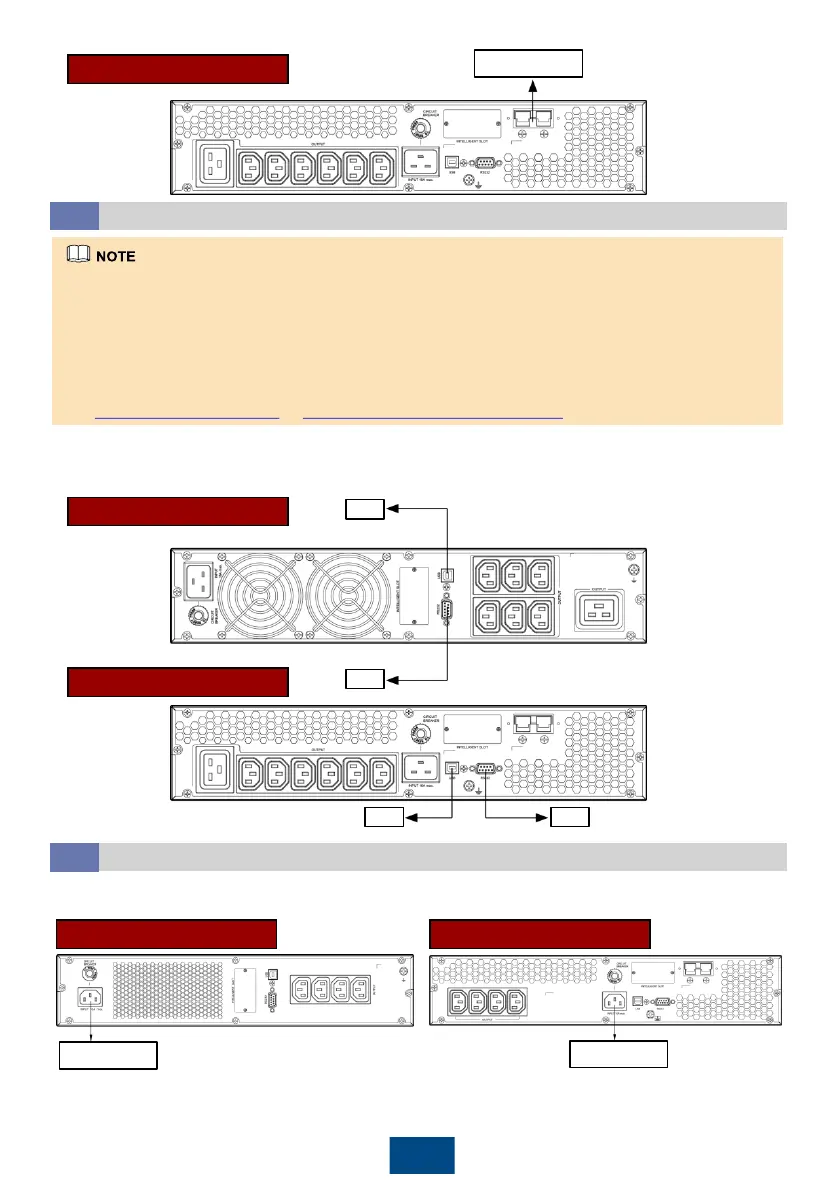

PC
PC
UPS2000-G-3KRTS
PC PC
UPS2000-G-3KRTL
Battery pack
UPS2000-G-3KRTL
Installing the UPS Input Cable
3.4
Mains input
UPS2000-G-1KRTS
Take out input power cable from the fitting bag, and connect mains input power cable to the UPS.
UPS2000-G-1KRTL
Mains input
To Next Page
