UPS2000-G-(1 kVA-3 kVA)
User Manual
2 Overview
Issue 15 (2019-12-19)
Copyright © Huawei Technologies Co., Ltd.
16

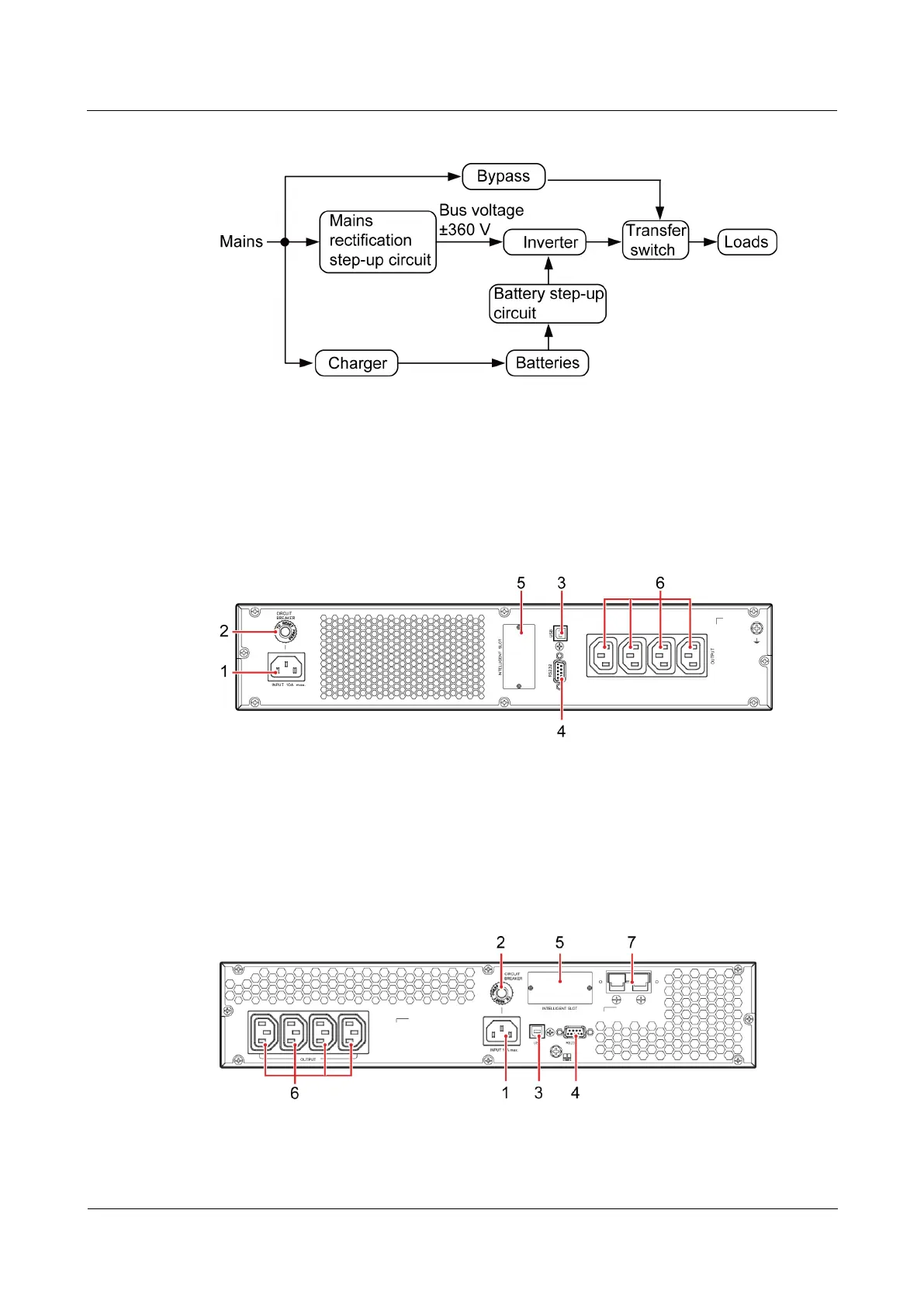

Figure 2-2 UPS conceptual diagram
2.3 Product Structure
Figure 2-3toFigure 2-8 show the rear view of the 1 kVA, 2 kVA, and 3 kVA UPSs.
Figure 2-3 Rear view of UPS2000-G-1KRTS
(1) Mains input socket (C14)
(2) Input circuit breaker
(3) USB port
a
(security protection mechanism supported)
(4) RS232 port
(5) Optional card slot
(6) Output socket (C13)
Figure 2-4 Rear view of UPS2000-G-1KRTL
(1) Mains input socket (C14)
(2) Input circuit
breaker
