Hubbell EMV - Magnetic Contactor Replacement (3-Phase)

16
4. Disconnect the two (2) 14 gauge wires.

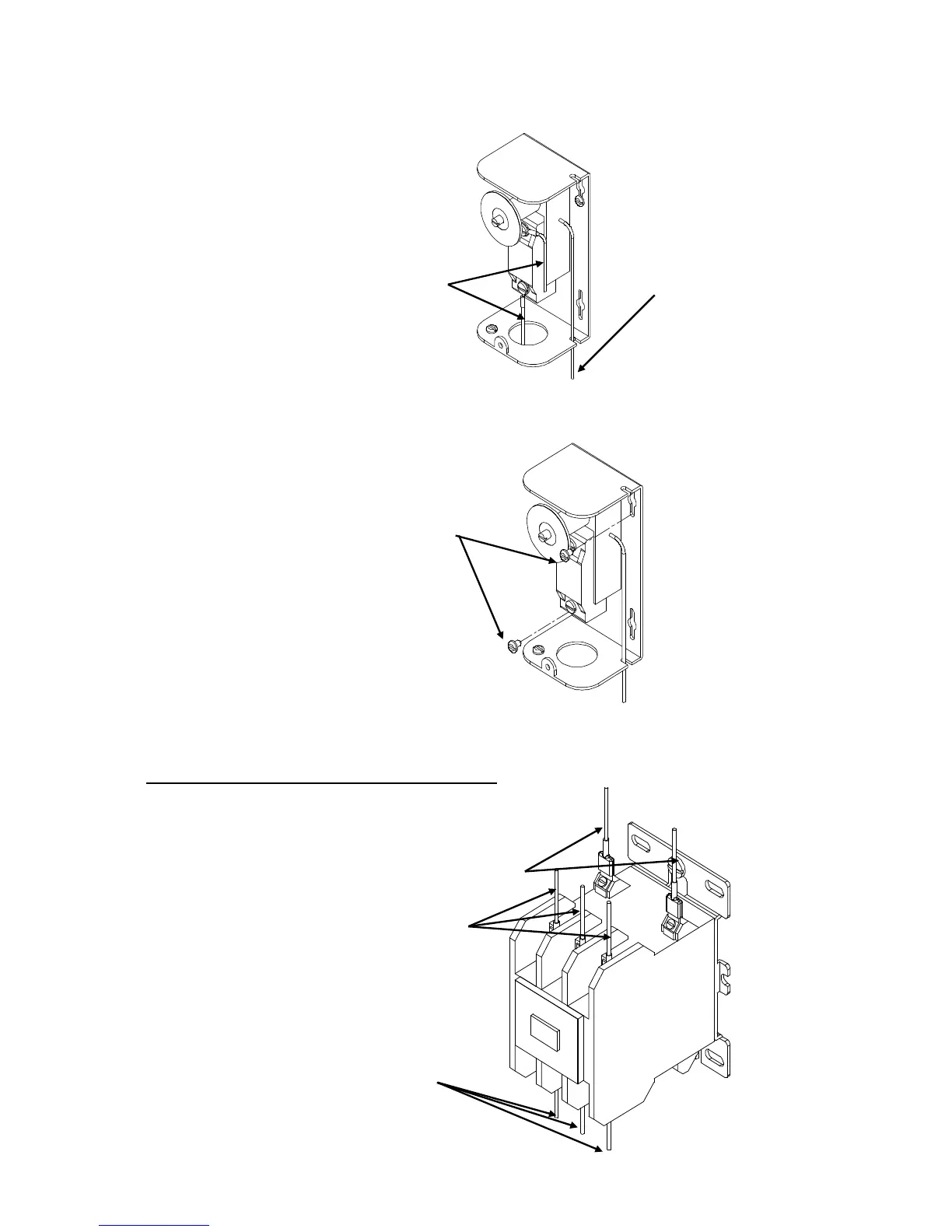

Capillary Tube
Wires
5. Remove capillary tube and bulb from
thermowell.
6. Remove two (2) mounting screws.
Mounting Screws
7. Replace thermostat using reverse procedure. (Note: Be
sure to place capillary tube into slot in base prior to installing cover.)
MAGNETIC CONTACTOR (3-PHASE ONLY)
1. Disconnect power from unit.
2. Disconnect line and load wires to contactor.
3. Disconnect two (2) 14 gauge control circuit wires.
Control Wires
Line Wires
Load Wires
