Hudson RT2417S - Assembly Instructions

9
Assembly Instructions

UNPACKING
After removing all parts and hardware pack from the top of the shipping box, and when the only part
showing is the grill head, use a box cutting knife to slice down the sides of the box. Be careful of
staples along shipping box edges.
Remove the steel and cardboard corner supports from the box and the styrofoam side pieces from the
grill head. Open grill lid and remove all packaged parts and packing material. Allow grill head to rest on
cardboard until placing grill head on cart in Step 9.
WARNING: Assemble the grill on a flat level surface. Compare the parts and hardware with the list and
diagrams. Do not attempt assembly if any part is missing or damaged.

Estimated Assembly Time: 30 minutes by 2 people.

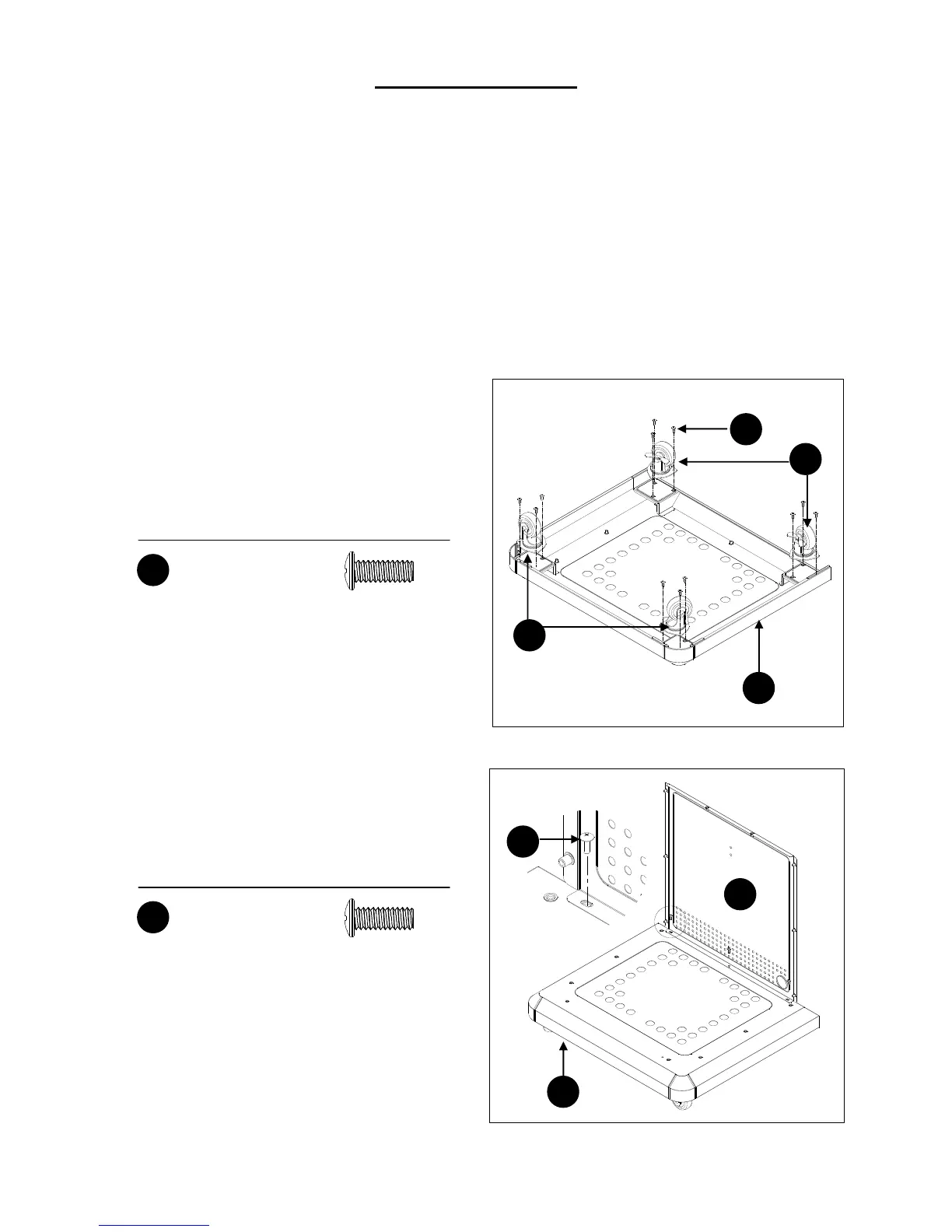

1. Attach the locking casters (Q) and the casters (R) to
the bottom panel (P) using 12 screws (AA). When this
process is completed, turn the bottom panel over.
The two locking casters (Q) should be at the back of
the grill.
2. Align the holes in the rear panel (M) with the holes in
the bottom panel (P) and insert screws (AA) into the
aligned holes.
Note: Do not tighten the screws completely. Leave at least
one full turn on each. After all the screws have been installed,
go back and tighten them fully.
Hardware Used
3/16-24 x 1/2 in.
Screw
X 12
AA
Hardware Used
3/16-24 x 1/2 in.
Screw
X 3
AA
AA
Q
R
P
1
2
P
M
AA
