HUGONG POWERTIG 300DPIII - Diagram and Parts List

21

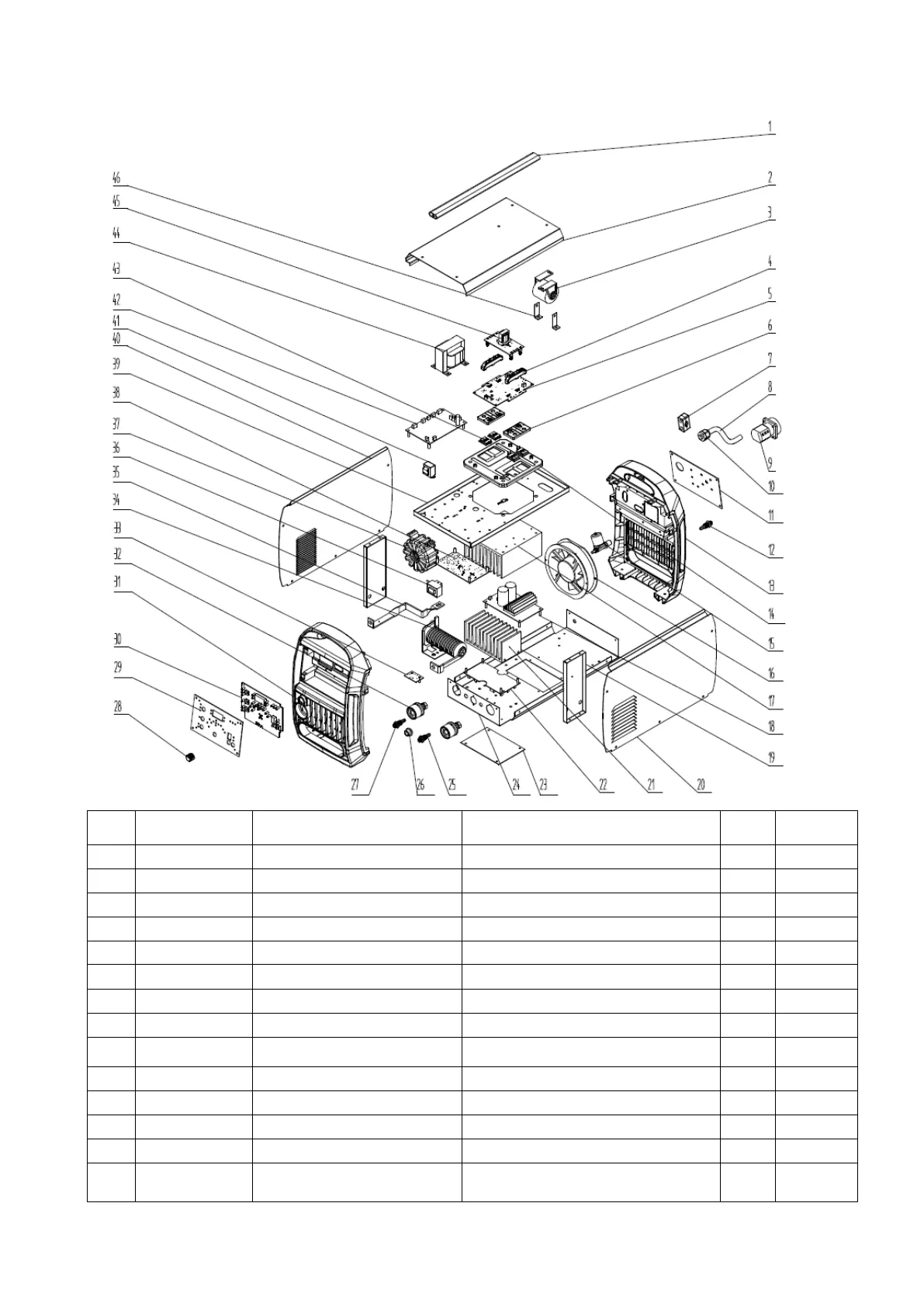

DIAGRAM & PARTS LIST
No. ERP CODE Name Model Units quantity
1 20020170016 Handle PMH200.42.12AE12-1/V1.0 PCS 1
2 11010011527 Cover INVERDELTA 300W ii PCS 1
3 20070120109 HF filter capacitor MLC-LS 40uF±5%/800V.DC/60A PCS 1
4 20070050002 Fixed plate for driving PCB HG2ZX7400K.2.3-2 PCS 2
5 11050110250 Power amplify PCB HG2ZX7400K2.3.1 PCS 1
6 20050050567 Protection plate for IGBT HG2ZX7400K.2.3-3 PCS 2
7 20050170019 Tension disc NB500.5-2 PCS 2
8 12070024081 Power line PTP300.10.14P33.2.2 PCS 1
9 20070800378 Switch LW39-16B-9GA-06/3BK PCS 1
10 20040300009 Fixed holder for power line EG-16(PG16) PCS 1
11 11020015775 Back panel plate PTAP200.17.14P12.3.1 PCS 1
12 11020020081 Water pipe connector PTP300.20.14A33.2-1 PCS 1
13 20050050643 Plastic front frame PMU200.23.12PE12.2.1-1 PCS
14 20050050176
Insulation plate for Heat
sink
HG2ZX7400K.2.12 PCS 1
