Humanscale Liberty Task - Back Spring Installation; Step 1: Install Spring and Bullet; Step 2: Repeat Spring Installation; Step 3: Align and Insert Back Pins

Operation #
Back Pin Replacement
Model #
All
Page
2/2
Process Description
back spring
Work Content - Verify - TQC
Tap pins into place using a mallet as per step 3
and 4 on previous page.
4

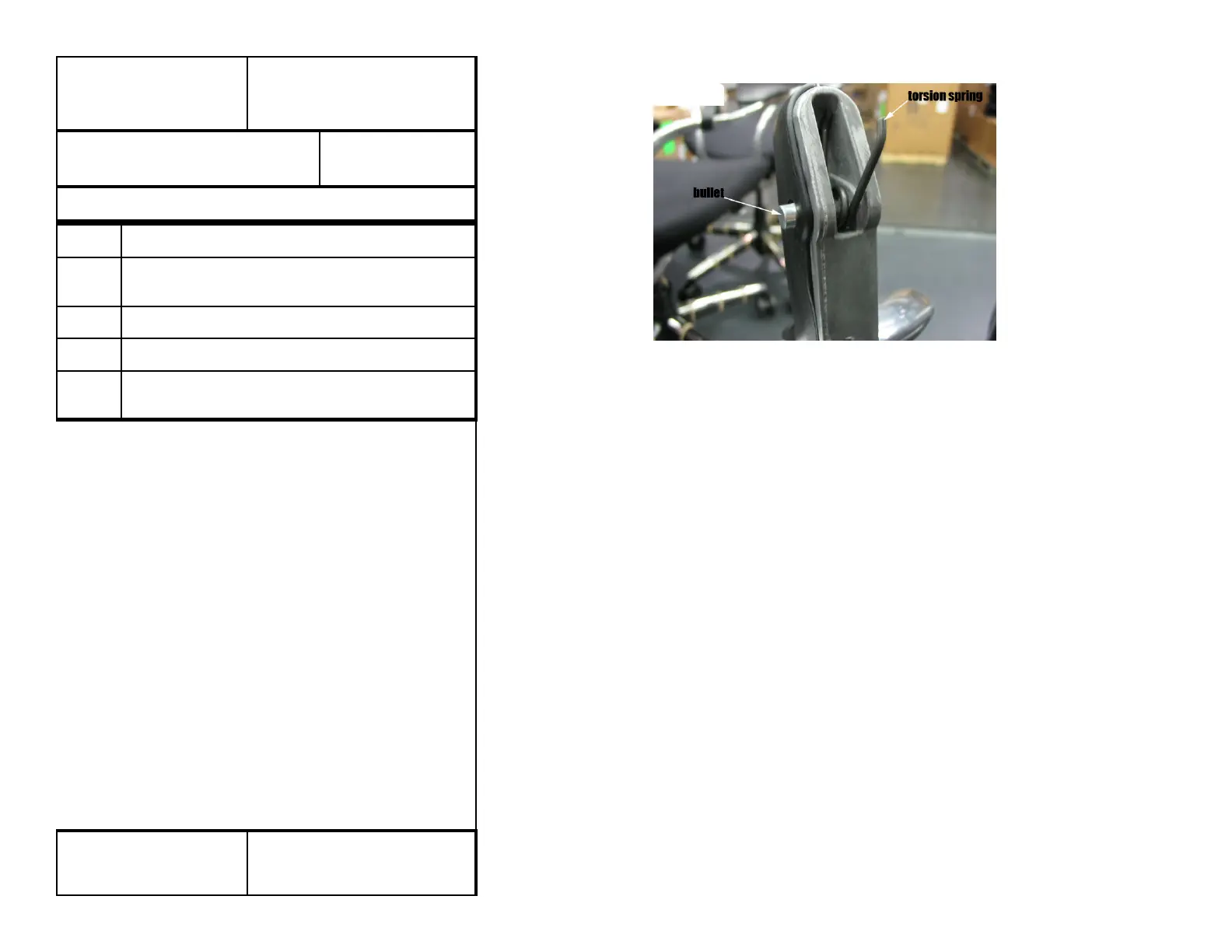

Insert spring R04-xxx into spring pocket and
secure with silver bullet R04-710
1
Repeat for other side. 2
Align back and insert back pins 3
DescriptionStep
Date
12/22/05
Rev #
1
