Humanscale M/Connect 2 - Installing M;Connect 2; Installation onto Edge of Table; Installation Through Grommet Hole

6

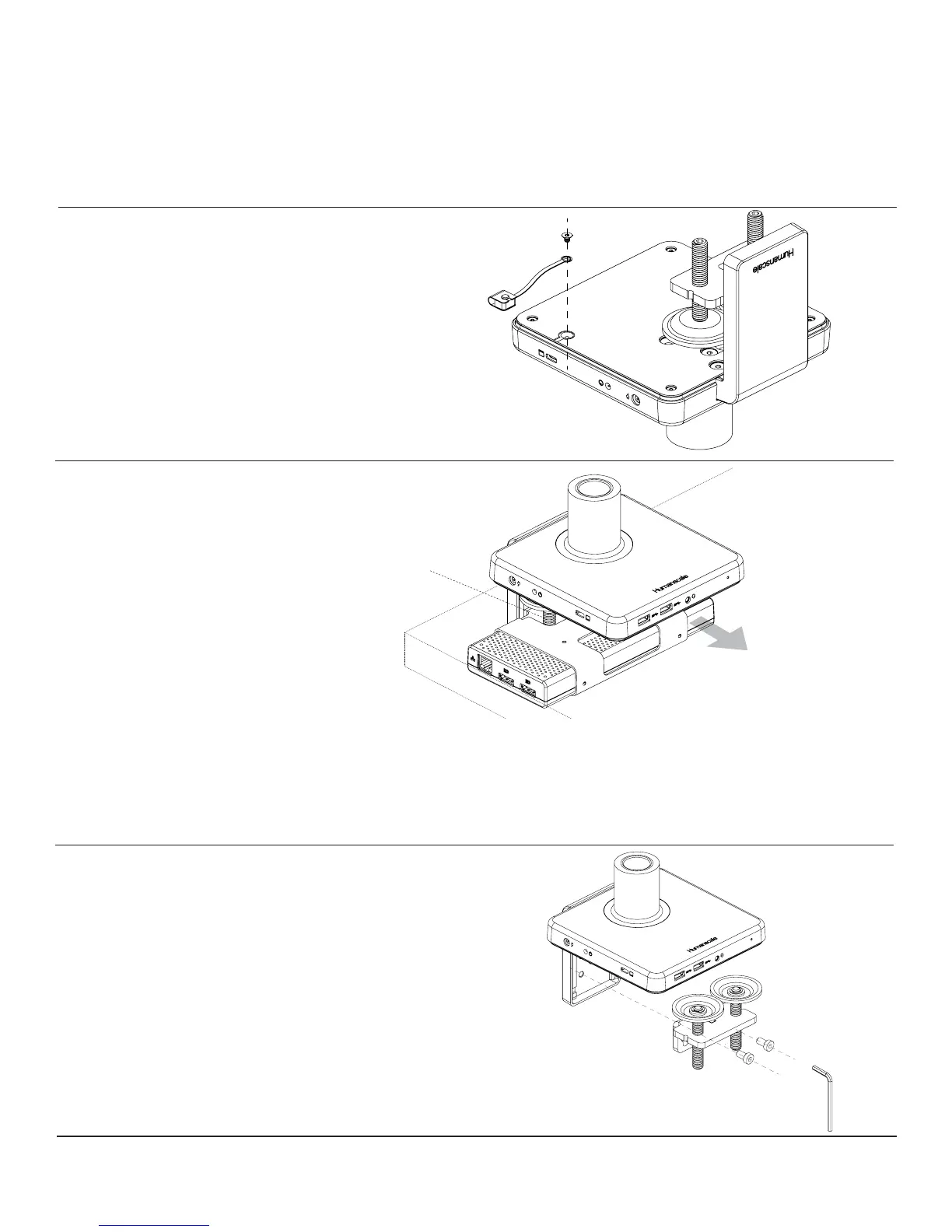

Disassemble Clamp
• Remove the two screws (g. B) using hex key (g. D) and detach
the smaller clamp bracket (g. C) from the larger bracket
STEP 1
Place M/Connect 2 Clamp onto Table
• Slide mount against work surface edge and
fully tighten clamp screw (g. A)
INSTALLING M/CONNECT 2
THROUGH A GROMMET
HOLE OR SYSTEM FURNITURE
STEP 1
INSTALLING M/CONNECT 2 ONTO EDGE OF TABLE
Caution: Maximum weightload of
M/Connect 2 is as follows: M2: 20 lbs .
M8: 40 lbs.
M/Flex: 60 lbs.
Do NOT exceed maximum weightload limits.
C
B
D
A
OPTIONAL: INSTALL USB-C CABLE RETAINING CLIP
Turn M/Connect 2 upside down to access screw hole
• Screw cable retaining clip into sheet metal base
