5

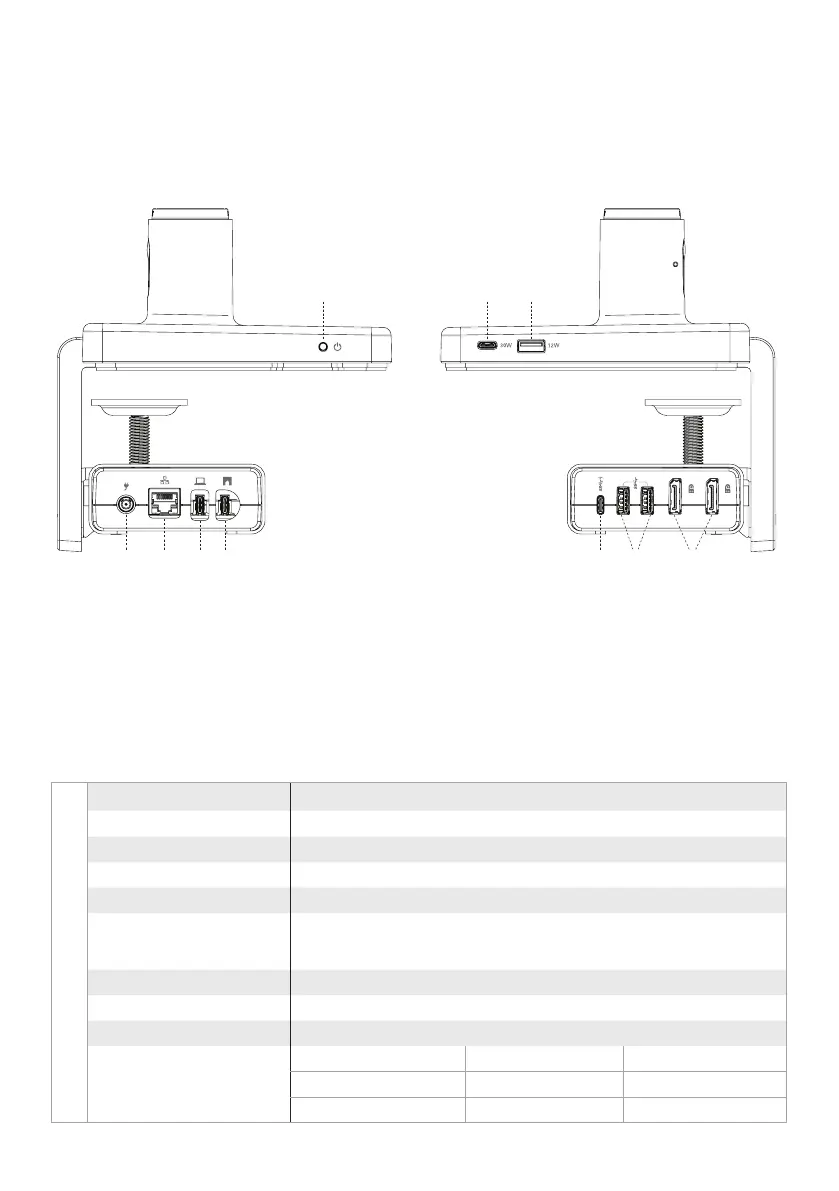

Identifying Ports
Power Button Powers unit on and o
USB-C Charging Port
Max 30W PD/QC Compatible (Limited to 15W when USB-A ③ is in use)
USB-A Charging Port 5V/2.4A, BC 1.2 Compatible
DC Power In 20 V DC, 9A
Ethernet Gigabit Ethernet, 10Mbit/100Mbit/1Gbit
USB-C Upstream Port Connects full featured USB-C cable to laptop, Supports PD charging at 100W max.
Important: only use USB-C cable provided with unit, other cables may void
product warranty
Bridge Port Connects to Hub using Bridge Cable
USB-C Port USB 3.2 (5V, 1.5A)
USB-A Port (2) USB 3.2
DisplayPort Output (2)
Platform DP Version DP 1.2 DP 1.4
Single Display 3840x2160 p30 3840x2160 p60
Dual Display 2560x1440 p60 3840x2160 p60
Left Panel Right Panel
Component Description
①
①
④
④
②
②
③
③
⑦
⑦
⑧
⑧
⑤
⑤
⑥
⑥
⑨
⑨
⑩
⑩
