Humanscale QUICKSTAND LITE - Dispose of Old Parts; Install New Parts

4
7

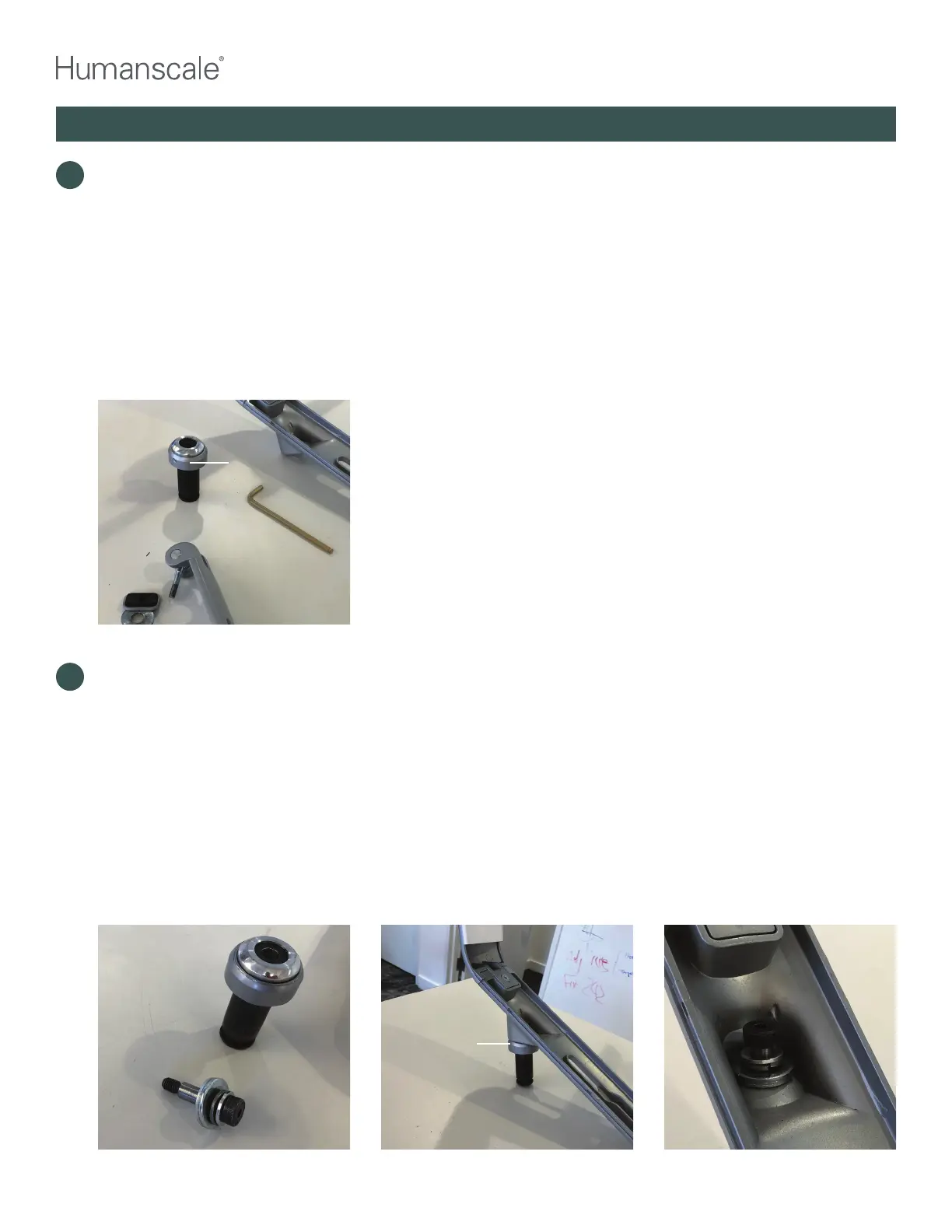

Dispose/recycle all parts all parts except dome washer. Items to be discarded are as follows:
• Shoulder bolt
• Lever washer
• Cam pin
• Lever
• Rectangular cam fulcrum
• Rectangular ring
• Spherical washer
• Arm link pin collar
• Arm link pin
Retain aluminum
dome washer
QUICKSTAND LITE REWORK INSTRUCTIONS
8
Replacement parts ready to be installed:
• Lock washer (8)
• 10 mm washer (7)
• Spherical washer (6)
• Shoulder bolt (9)
• Arm link pin (3)
• Arm link pin collar (5)
• Aluminum dome washer (retained for reuse)
Place lock washer, 10mm washer and spherical washer onto shoulder bolt. Place arm link pin with
collar and dome washer seated in the collar under the QSL head as shown. Insert shoulder bolt, with
assembled washers, through hole in QSL head and into arm link pin.
Aluminum
dome
washer
Arm link
pin and collar
Lock, 10 mm
and spherical
washer on
shoulder bolt
