Side Imaging Sonar
Cancel Navigation
1. Press the MENU key once.
2. Select Cancel Navigation. Press the RIGHT Cursor key.
Press Twice to
Start Navigation
Move the Cursor

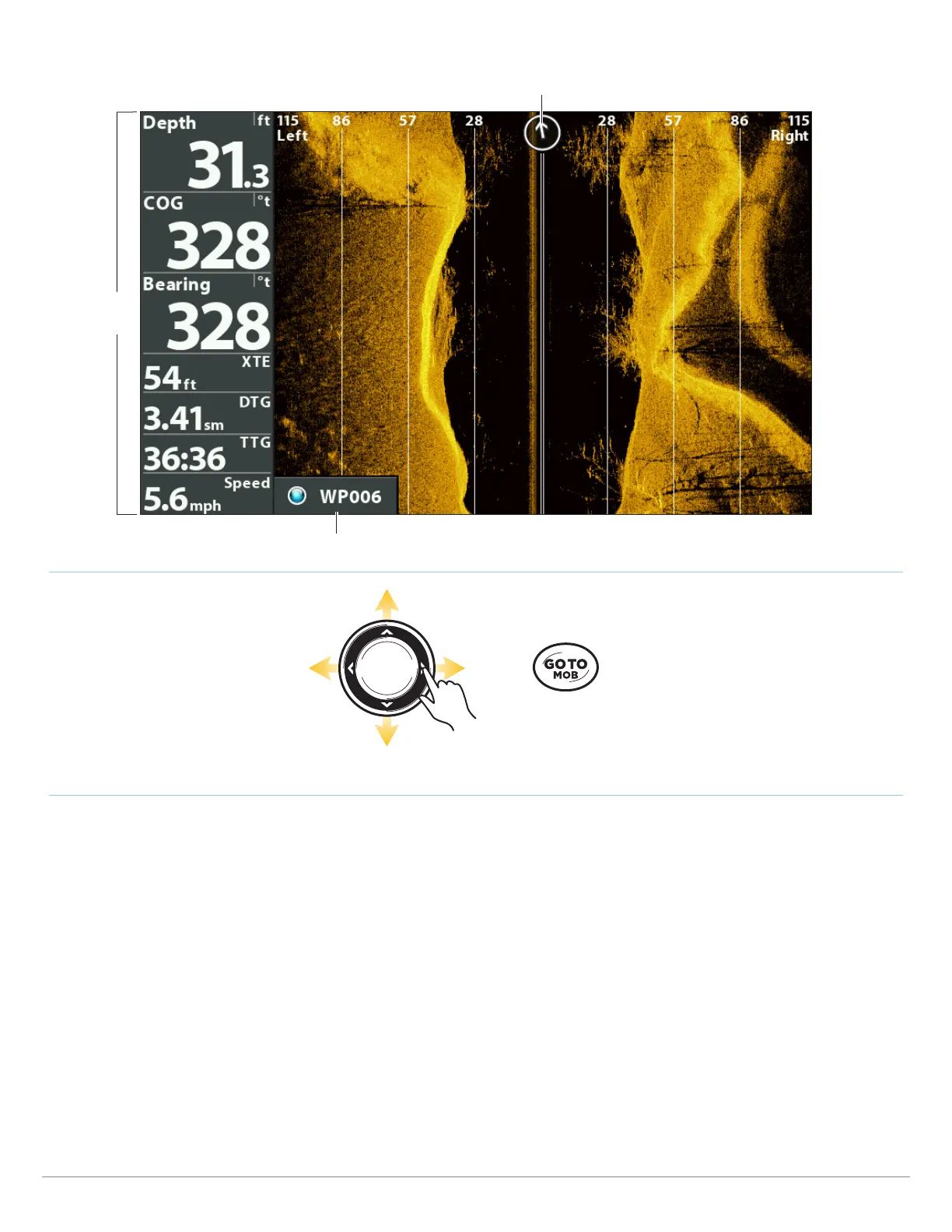

Navigating to a Waypoint
direction to turn the boat to reach the next waypoint (SI Navigation On)
navigation
digital
readouts
next waypoint
