168

Manage Routes

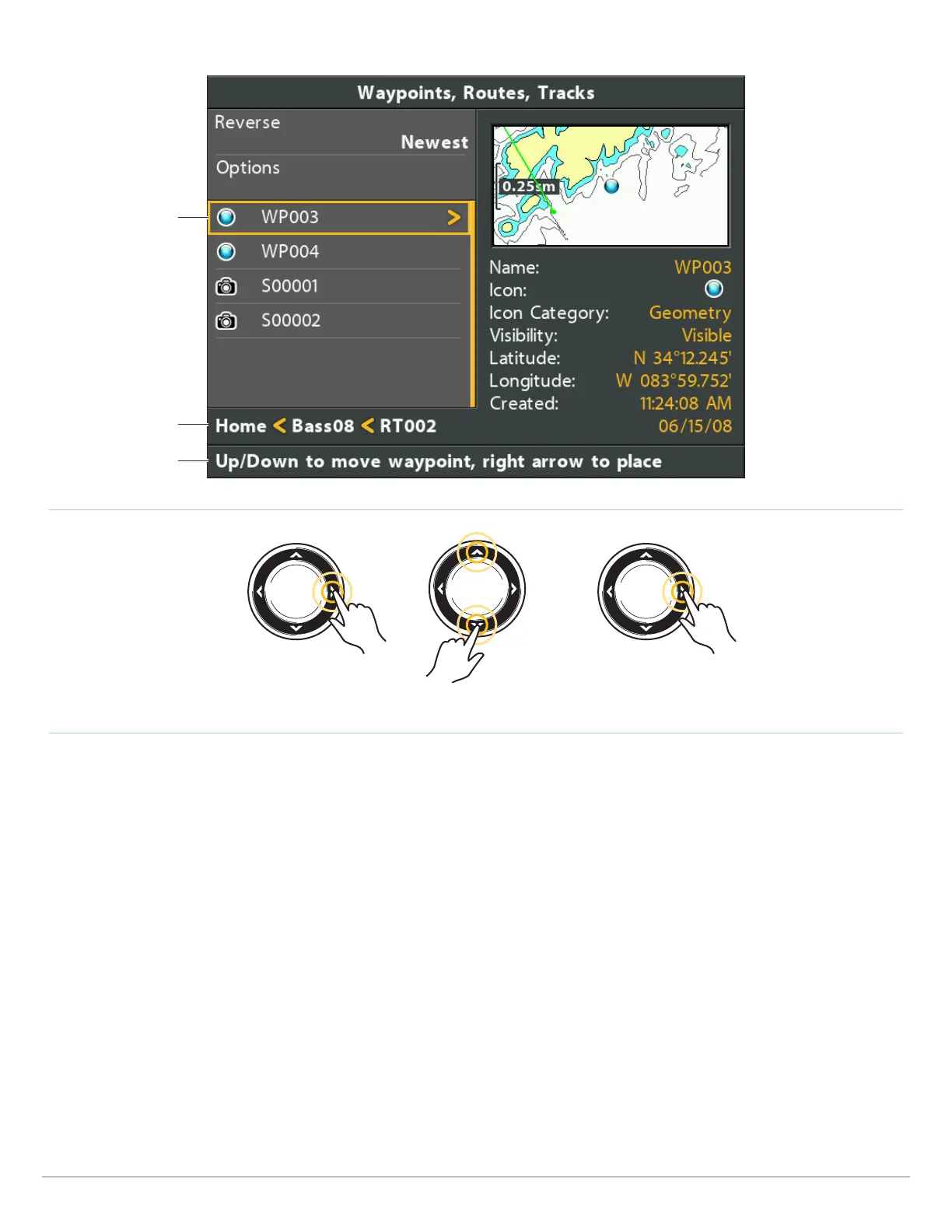

Changing the Route Order (Moving a Waypoint)

Directory: RT002 is

the selected route

instructions

move a waypoint

up or down in the

route order

Select the Waypoint Move the Waypoint Up or Down Confirm the New Location
