Humminbird HELIX 5 G2 SERIES User Manual

43
Sonar (2D)
D
isplay a Sonar Combo View
1. Press and hold the VIEW key.
2. To open a Sonar Combo View, select Sonar.
To open a Chart Combo View (Sonar and Chart together), select Chart.
3. Select a view to display on-screen.
NOTE: The available views are determined by your control head model and the installed transducer. See each related section of
the manual (Views, Down Imaging, Side Imaging, Navigation Overview, etc.) for more information.

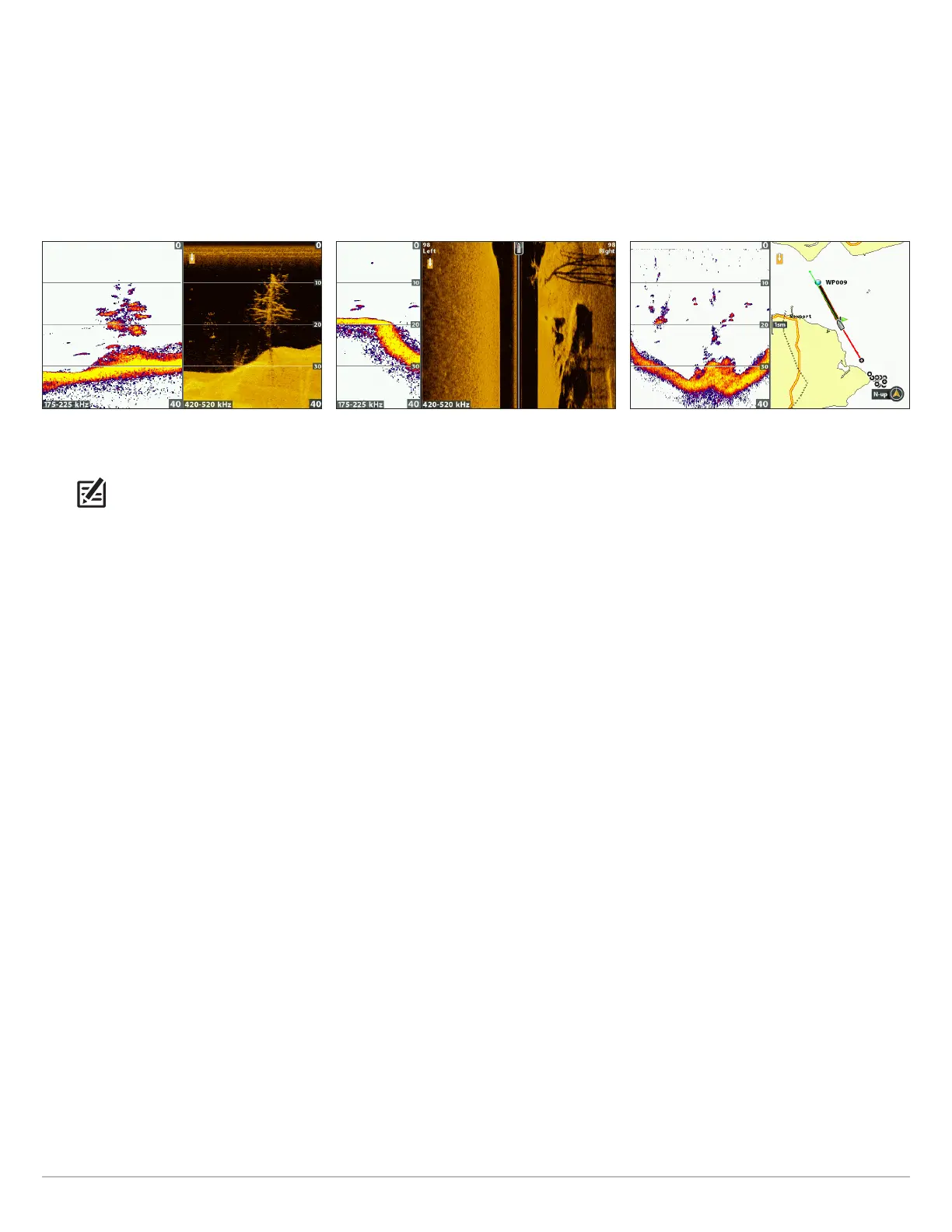

Chart > Chart/Sonar Combo View
For more information, see
Navigation Overview.
Sonar > Side/Sonar Combo View
For more information, see
the Side Imaging section.
Sonar > Down/Sonar Combo View
For more information, see
the Down Imaging section.

Humminbird HELIX 5 G2 SERIES Specifications

General

GPS	Yes
Temperature	Yes
GPS Receiver	Internal
GPS Antenna	Internal
Power Input	10-20 VDC
Water Resistance	IPX7
Display Size	5 inches
Target Separation	2.5 inches
Depth Capability	1500 ft
Mount A Type	Gimbal Mount
Resolution	480 x 800 pixels
