13 Installing the Mount
2. Adjust the pod shaft to the desired height. The MEGA 360 Imaging pod must
be set below the keel and skeg, so that nothing is obstructing the ‘view’ of
the rotating beams.
3. After you have established the pod height, slide the depth set collar through
the cables and down the shaft. The depth set collar must be positioned at
least 4" from the top of the shaft.
4. Use hex key to tighten the depth set collar. Hand-tighten only!

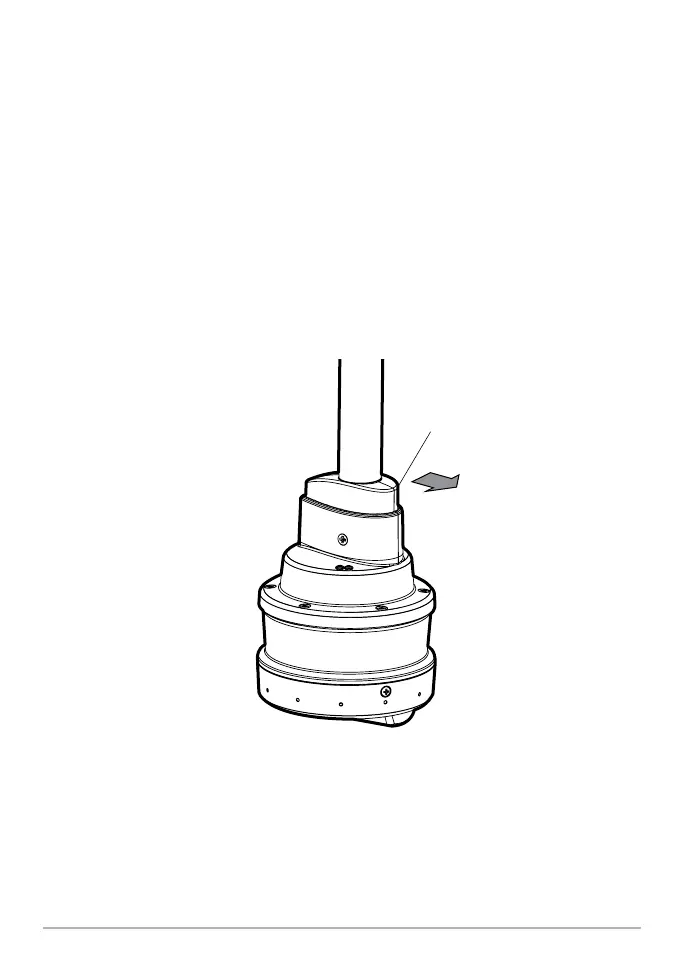

5. Turn the pod shaft until the rounded end of the transducer points in the
direction of travel. The centerline of the transducer should be parallel with
the centerline of the boat. See the illustration Aligning the Transducer.
rounded part
of transducer
Aligning the Transducer
6. When the transducer position is finalized, hand-tighten the knobs equally and
completely so the pod shaft is fully secure and won’t drop or rotate during
operation. Hand-tighten only!
