3
532594-2_A

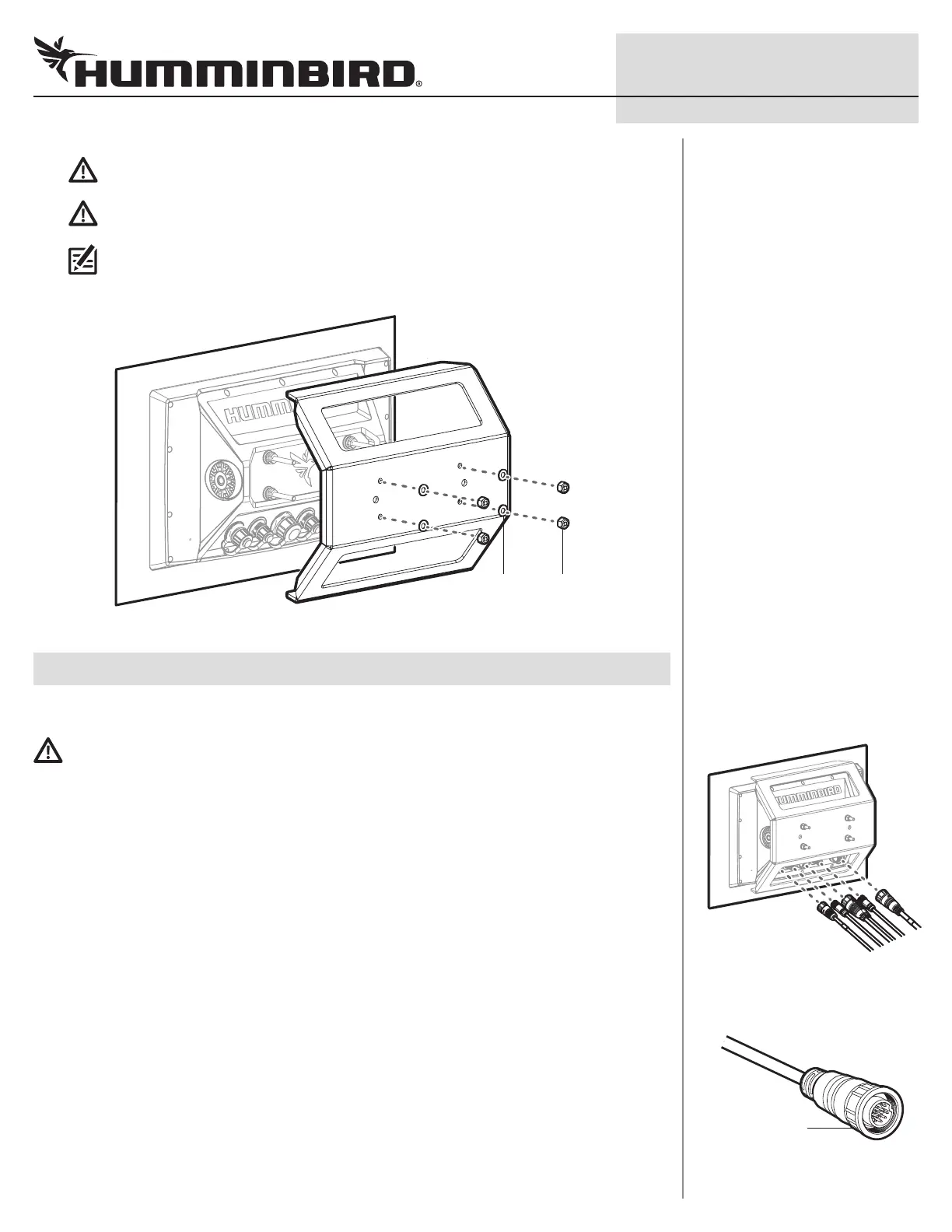

SOLIX® SERIES IN-DASH MOUNTING Installation Guide
WARNING! Do NOT use power tools to secure the hardware.
WARNING! Do NOT over-tighten the nuts. If the bracket is bending or bowing, it is too tight.
Over-tightening the nuts may damage the control head.
NOTE: Studs must protrude above the top of the hex nuts for proper retention.
Installing the Vertical Bracket
nylon insert
hex nut
flat
washer
5
|
Connect the Cables
In this step, you will route the cables to the control head connector panel.
CAUTION! Do NOT mount the cables where the connectors could be submerged in water or flooded.
If cables are installed in a splash-prone area, it may be helpful to apply dielectric grease to the
inside of the connectors to prevent corrosion. Dielectric grease can be purchased separately from
a general hardware or automotive store.
1. Route the cables to the control head through the bottom opening in the vertical bracket. See
the illustration Routing Cables to the Control Head.
2. Connect each cable to the appropriate ports on the control head. The ports are labeled, and the
connectors are keyed to prevent incorrect installation.
3. Hand-tighten the screw nut on each cable to secure the connection. See the illustration Hand-
Tightening the Screw Nut.
Cover any unused ports with the tethered caps to prevent potential damage.
4. Your control head is ready for operation. See the Quick Start Guide to get started and download
the SOLIX Operations Manual from our Web site at humminbird.com.
Hand-Tightening the Screw Nut
screw nut
Routing Cables to the Control Head

Other manuals for Humminbird SOLIX series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Humminbird SOLIX series and is the answer not in the manual?

Humminbird SOLIX series Specifications

General IconGeneral
Depth-Sonar StandardUp to 1, 500 feet (varies by model)
InterfaceTouchscreen
GPSYes
CartographyHumminbird Basemap
Target Separation2.5 inches
NetworkingEthernet, NMEA 2000
Memory Card SlotYes
WaterproofIPX7
Operating Frequency1.2MHz
DimensionsVaries by model
WeightVaries by model
Display Size10.1", 12.1"
Display Resolution1280 x 800 pixels (varies by model)
Operating Temperature-15°C to 55°C (5°F to 131°F)
