Hunter Stoves HAWK 4 - Appliance Dimensions

7
Rear Brick
Baffle/Throat Plate
STOVE ASSEMBLY
Flue Collar
Blanking Plate
RE-ASSEMBLING
THE STOVE
Refit all the internal parts by following
the ‘removing internal component’
instructions in reverse order.

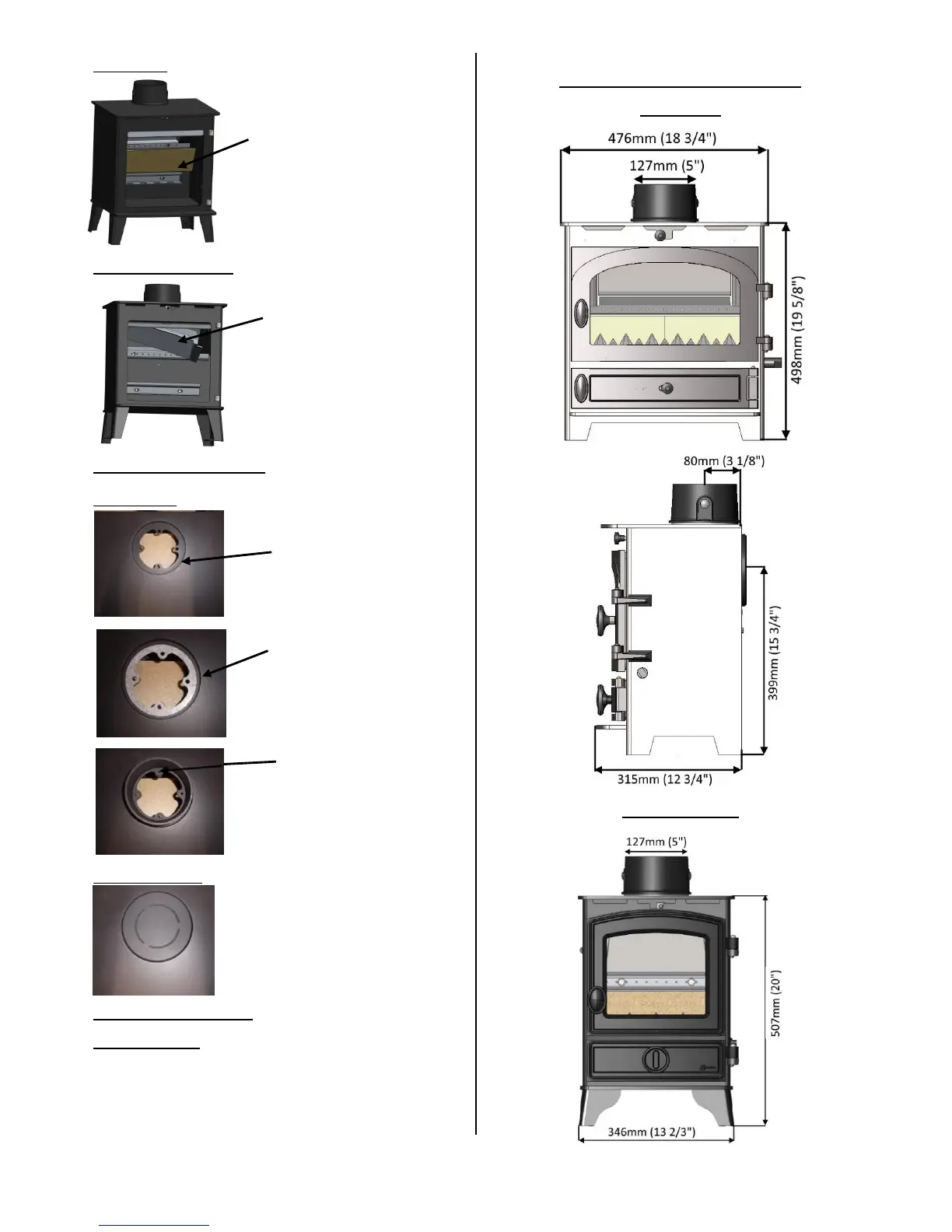

APPLIANCE DIMENSIONS
KESTREL
HAWK 3/3D
Pull the top edge of the
Rear Brick forward and lift
the brick out of the Stove.
Lift the Baffle and slide to
the right. When the left
side of the Baffle clears the
Baffle Support, lower the
Baffle into the Fire Box and
remove.
Place the bolts
downwards through the
fixing holes (head side
upwards). Then tighten
by using supplied nuts
from inside stove.
Place the gasket on the
outlet and put blanking
plate on top of this.
Screw the bolts from the
inside of the stove into
the blanking plate.
Place the flue collar
gaskets on the outlet to
be used.
Top or rear outlet
