Hunter 50171 - Light Kit and Bulb Installation; Assembling the Light Kit; Installing Bulbs and Glass

8
1886
1886
Installing the Bulbs and Glass
Install the included bulbs
into the sockets. When
necessary, replace with
bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.

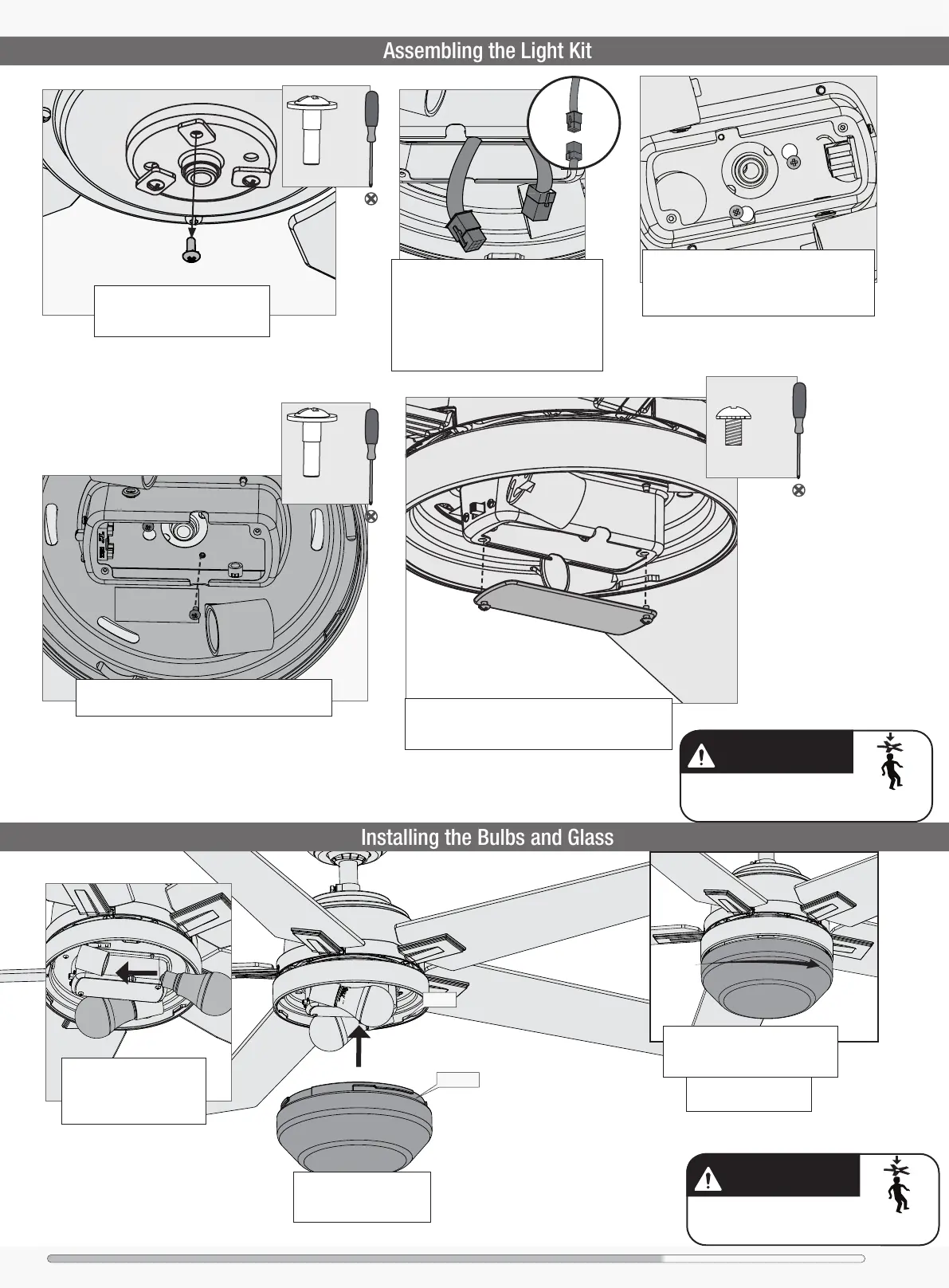

Assembling the Light Kit
Notch
Tab
WARNING
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
Align the keyhole slots in the top of the light kit
assembly with the partially installed screws.
Wrap the keyhole slots around the screws and
twist counterclockwise.
Remove a pre-installed assembly
screw. It does not matter which
screw you choose.
Feed the 9-pin plug connector coming
from the bottom of the motor housing
through the center hole in the light kit
assembly. Connect it to the plug connector
found in the switch housing area of the
light kit assembly. Make sure to line up
the colored markings on the connectors.
WARNING
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
1 of 1
Assembly Screw
1 of 1
2 of 2
Insert the saved assembly screw. Firmly tighten all
the three screws.
Carefully push all switch housing components into the
switch housing, then install the switch housing plate
using the two pre-installed light kit screws.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Glass Remote CradleRemote
Light Kit Screw
Assembly Screw
