Have dual switches?
Follow these steps:
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the second ungrounded
(light) wire from the ceiling to
the blue wire from the fan.
Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Blue
Black
Green/Yellow Stripe
White
Ungrounded
Ungrounded (light)
Grounded
Grounding
G
r
e
e
n
/
Y
e
l
l
o
w
S
t
r
i
p
e
x4
bag
Wire Nut
DRSKY-01 r092421
We know wiring is hard. Let’s make it easier.
You are going to need these:
4 Wire Nuts (these are in the
bag)

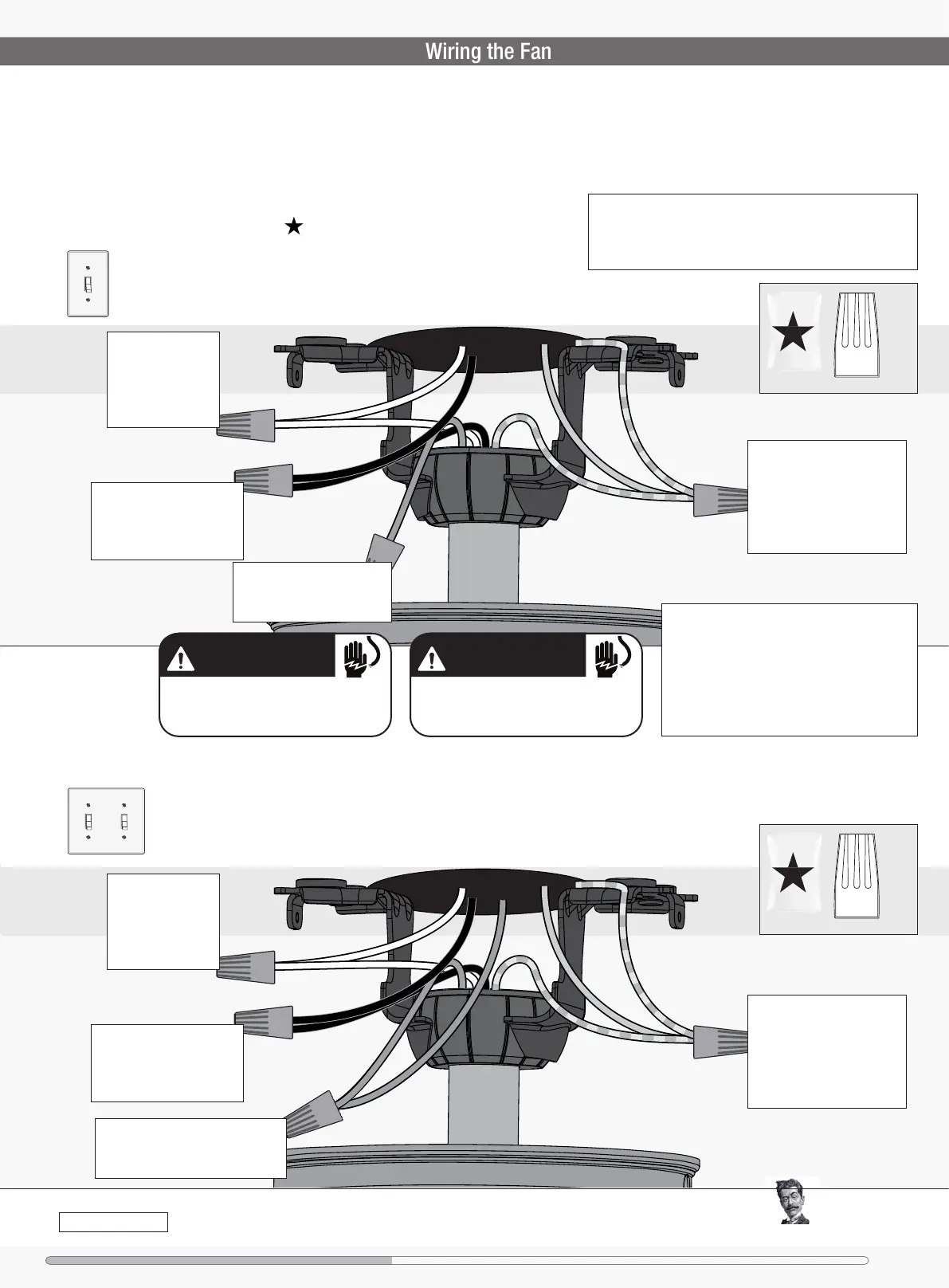

Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a quali ed electrician.
Have a single switch?
Follow these steps:
Wiring the Fan
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Cap the blue wire from the
fan.
You will not need it
for single switch wiring.
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.
Blue
Black
Green/Yellow Stripe
White
Ungrounded
Grounded
Grounding
G
r
e
e
n
/
Y
e
l
l
o
w
S
t
r
i
p
e
x4
bag
Wire Nut
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
WARNING
All wiring must be in accordance with
national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in
doubt, consult a quali ed electrician.
WARNING
The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a quali ed electrician.
Have extra wiring?
Turn the wires upward and push them carefully
back through the hanger bracket into the outlet
box. Spread the wires apart, with the grounded
wires on one side of the outlet box and the
ungrounded wires on the other side of the outlet
box. Make sure that the wires are still attached
to the wire nuts.
Hunter Pro Tip:
Fan style may vary.
