Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Remote

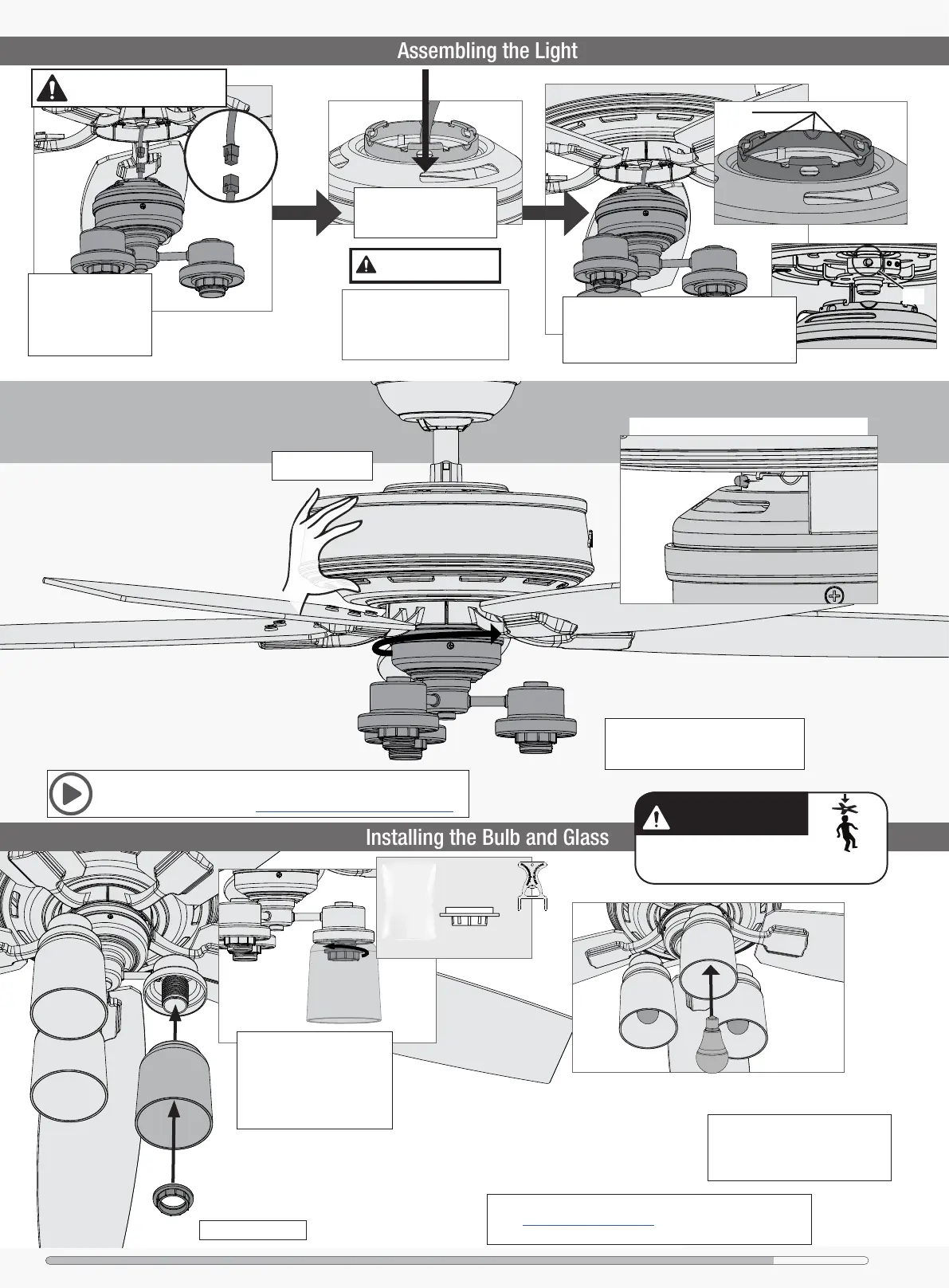

Installing the Bulb and Glass
Need a little more help with assembling this light?
Visit our light kit video at: http://bit.ly/HunterQuickConnect
Some components not shown for visual clarity.
Hold the fan body stationary and rotate
the light xture clockwise to engage the
locking pin.
Install each included bulb into their
sockets. When necessary, replace
with bulbs of the same wattage.
Repeat x3
Repeat x3
Install the shades onto the
sockets. Install the socket
rings, found in the hardware
bag, onto the sockets. Tighten
them by turning clockwise
with the socket ring glass tool.
Want to install your fan without a light kit?
Go to www.HunterFan.com/FAQs and click “How do I install my
fan without the light kit?”
Hunter Pro Tip:
Notch
IMPORTANT
Push the connector and
excess wire into the hole at
the top of the light xture.
The connector and excess wiring
must be pushed into the light
xture in order to successfully
mount the light xture to the fan.
Pin
Raise the light kit to the bottom of the fan.
Align the notch on the mounting ring on the
top of the light kit with the pin in the mounting
bracket on the bottom of the fan.
Connect the plugs from
the fan and light xture.
Make sure to line up
the colored markings
on the connectors.
Remove the cardboard plug
guard before proceeding!
HOLD HERE
x3
bag
Socket Ring
Fan style may vary.
Note:
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
To Next Page
