7
8
Fan style may vary.
Note:
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass
ON
Turn Power
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.

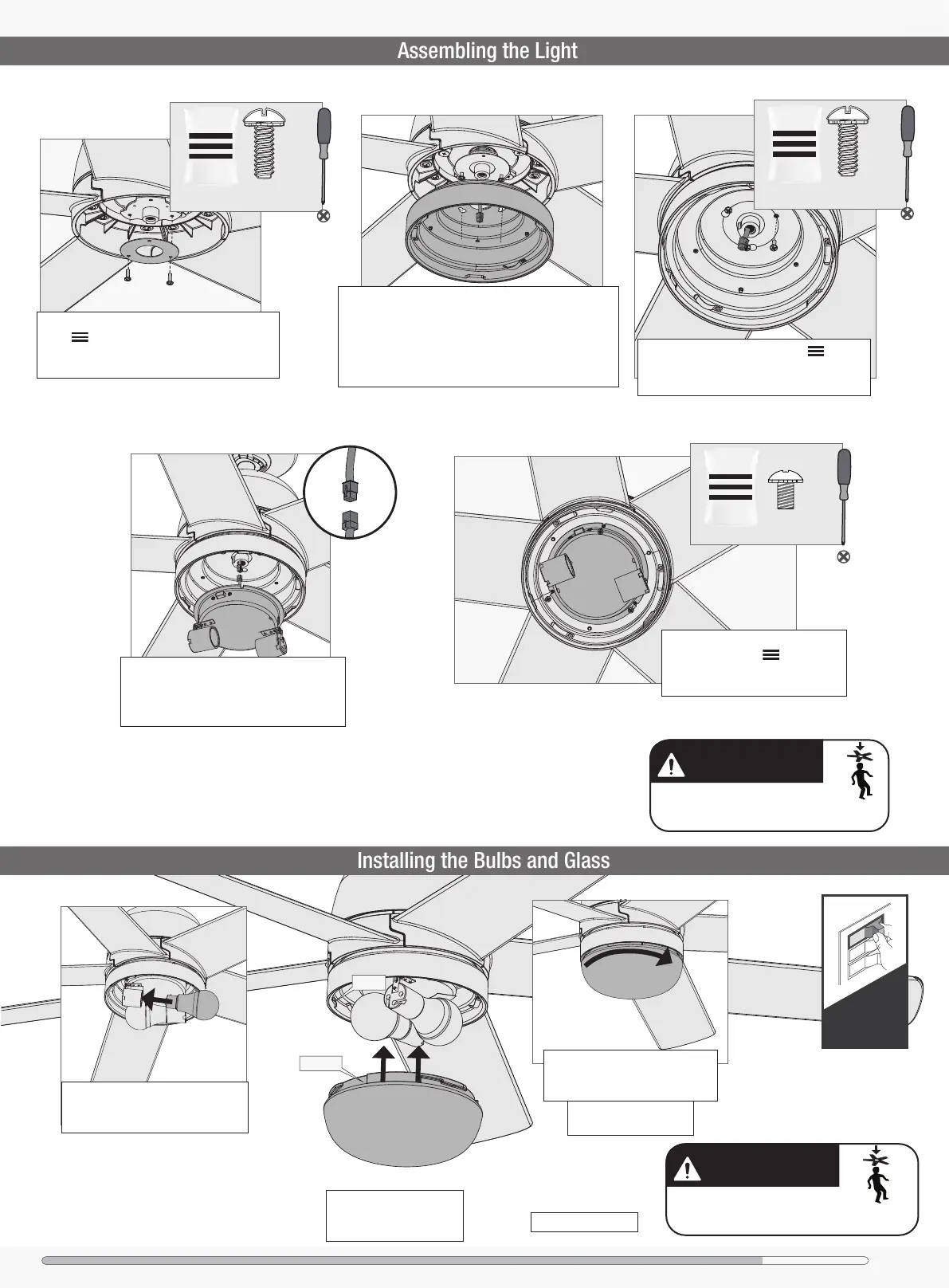

Installing the Bulbs and Glass
Install the included bulbs into the
sockets. When necessary, replace
with bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
Notch
Tab
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
3 of 3
Short Housing
Screw
bag
Partially install two switch housing screws, found
in the hardware bag, through the gasket
halfway into the motor housing as shown. It does
not matter which two screw holes you choose.
Using the three short housing
screws found in the hardware
bag, mount the lower switch
housing to the upper switch housing.
2 of 3
1 of 3
Switch Housing
Screw
Switch Housing
Screw
bag
bag
Feed the wire plug through the center hole of the uppers
switch housing. Align the keyhole slots in the upper
switch housing with the two screws you just installed.
Lift the upper switch housing so that the keyhole slots
engage the two screws, and twist counterclockwise to
lock the upper switch housning into place.
Lift the the lower switch housing and
connect the plugs. Make sure to line up the
colored markings on the connectors and
that the connectors latch.
Insert the third screw found in the
hardware bag, into place and then tighten all
three screws.
To Next Page
