Check the outlet box:

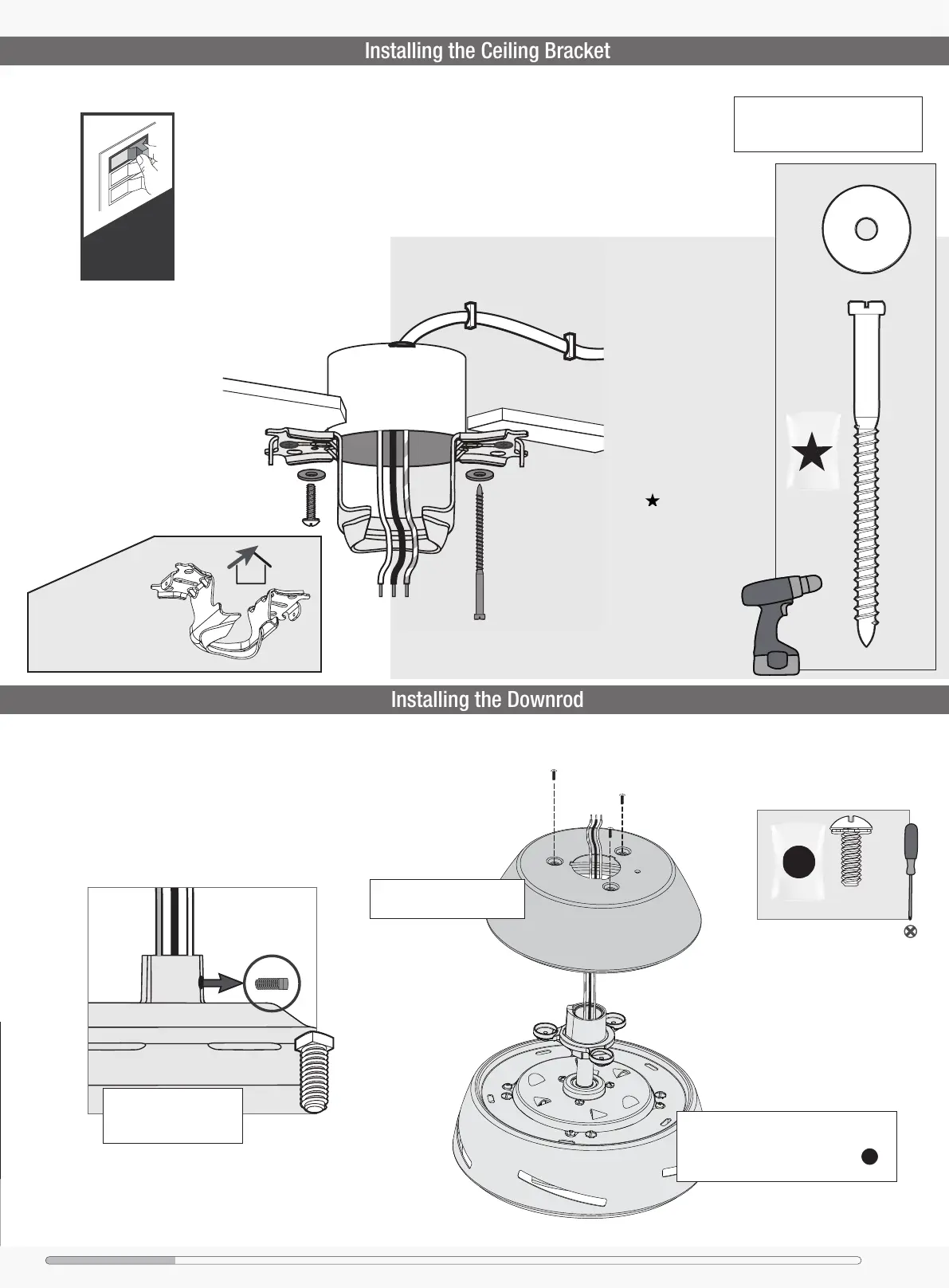

Installing the Ceiling Bracket
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
ANGLED
MOUNTING TIP
Wood Screw
Washer
x2
x2
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.
Place the upper motor cover
on the top of the fan.
Align the notches in the upper motor cover
with the tabs on the motor adapter. Insert
the upper motor screws, found in the
hardware bag, and tighten them securely.
3 of 3
Top Housing
Screw
K
E
E
P
!
Remove the pre-installed
setscrew so that the
downrod can be inserted.
To Next Page
